ASCEND
3W,7W

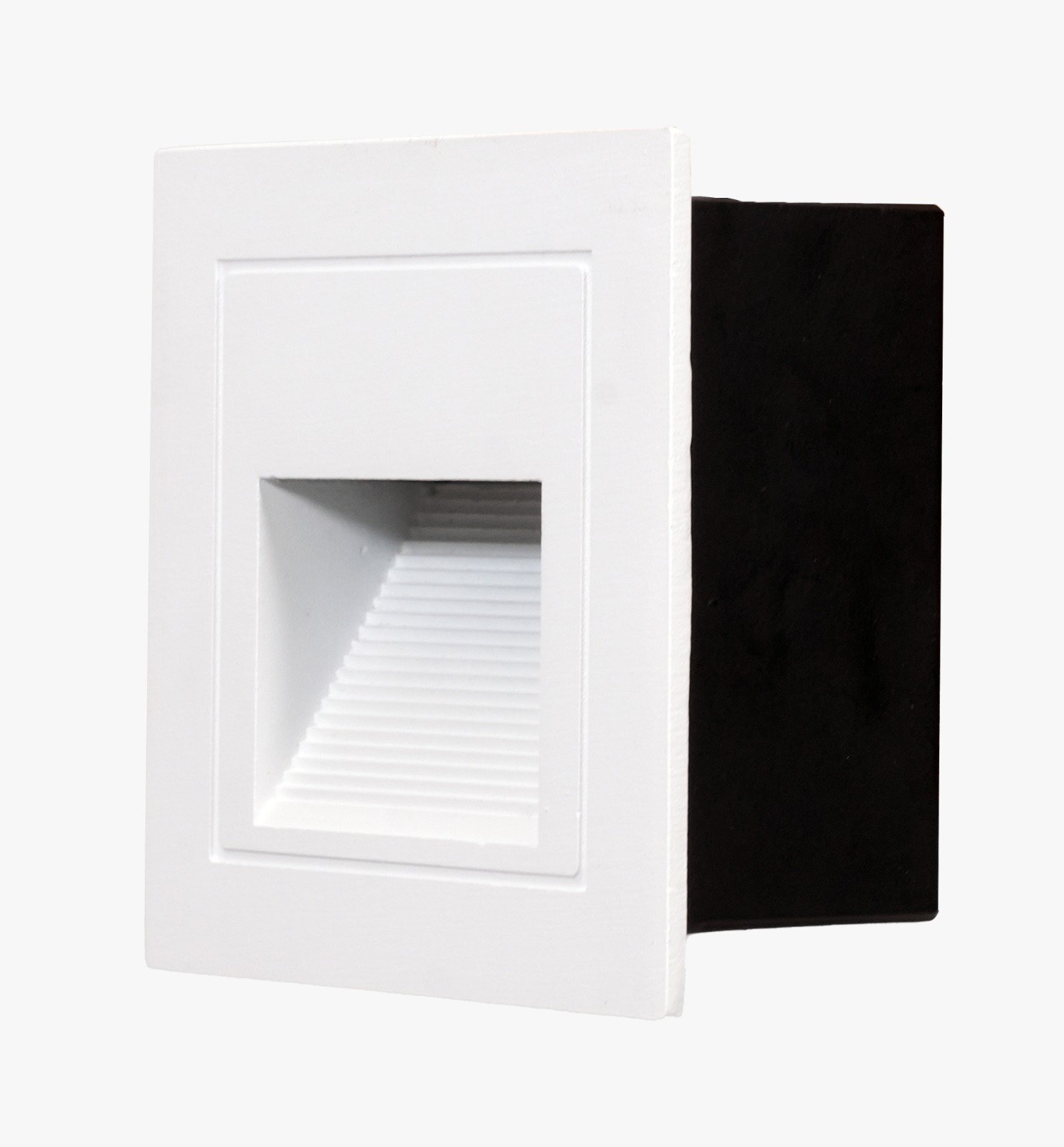

ASCEND is a high-performance LED wall-mounted luminaire for staircases and walkways. A broad selection of CCT and power options is offered to suit different specifications.
| Colour | 3000K, 4000K, 6500K |
|---|---|
| Wattage | 03W, 07W |
Suitable for :
- Corridor
- Parking Areas
- Private Pathways
-
Features
-
Specifications
-
Technical Data
-
Downloads
- Concealed Light Source – enhances aesthetics with hidden LEDs.
- Low Glare - Low glare via optimized optics.
- Long life: 50,000+ hrs - Minimal maintenance.
- High Luminous efficacy - More light output
- Consistent Performance & Quality - Delivers stable brightness.
| Housing | Die Cast Aluminium | |
| Body Colour | White | |
| Light Source | Bridgelux | |
| Dimming | ON-OFF, TRIAC, 0.-10V, DALI | |
| Rated Luminous Efficacy | 100 lm/W | |
| LED Life Time | >50,000 hours | |
| Input Voltage | 120-240 VAC | |
| Input Frequency | 50-60 Hz | |
| Efficiency | >90% | |
| IP Rating | IP65 | |
| IK Rating | IK02 |
| Model No. | Power (W) | Lumens | CCT | CRI | Beam Angle | Dimensions (mm) | |||
| ACD-WRL-03 | 3 | 3000 | 3000K/4000K/6500K | >80 | 87.7° | L/D: 85,W:85,H:40 mm | |||
| ACD-WRL-07 | 7 | 7000 | 3000K/4000K/6500K | >80 | 57.3° | L/D: 180,W:85,H:40 mm |
*D=Diameter; H=Height
