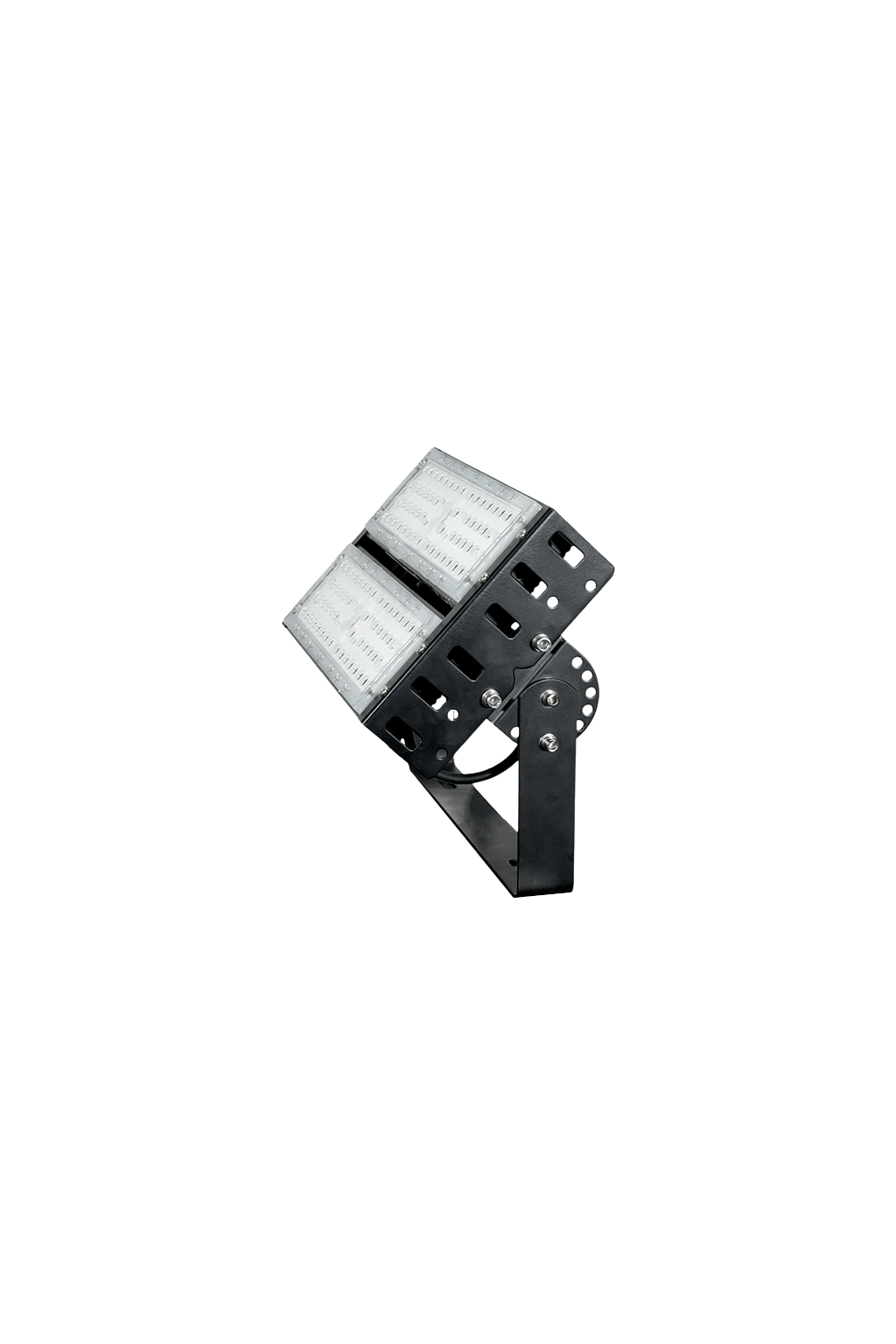

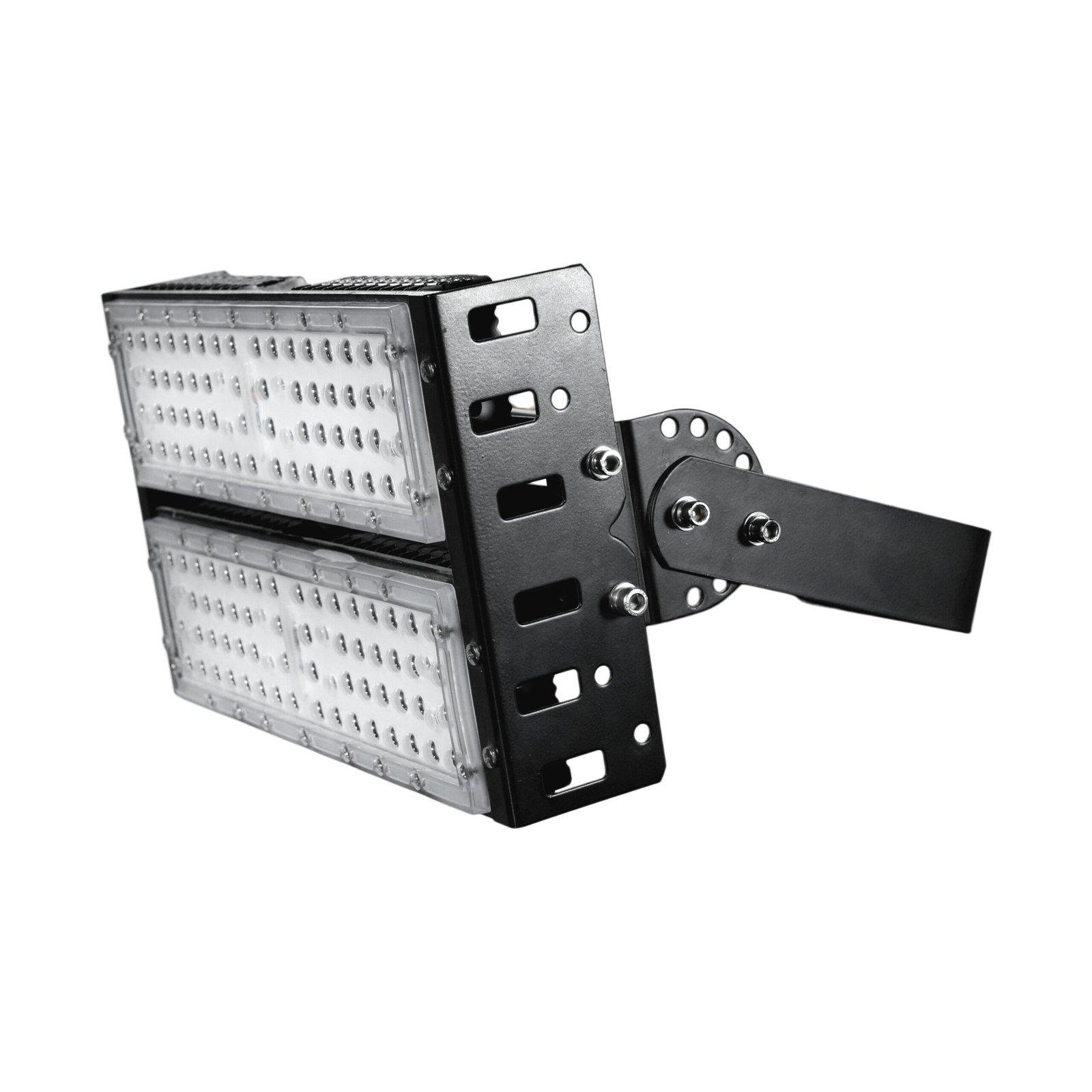

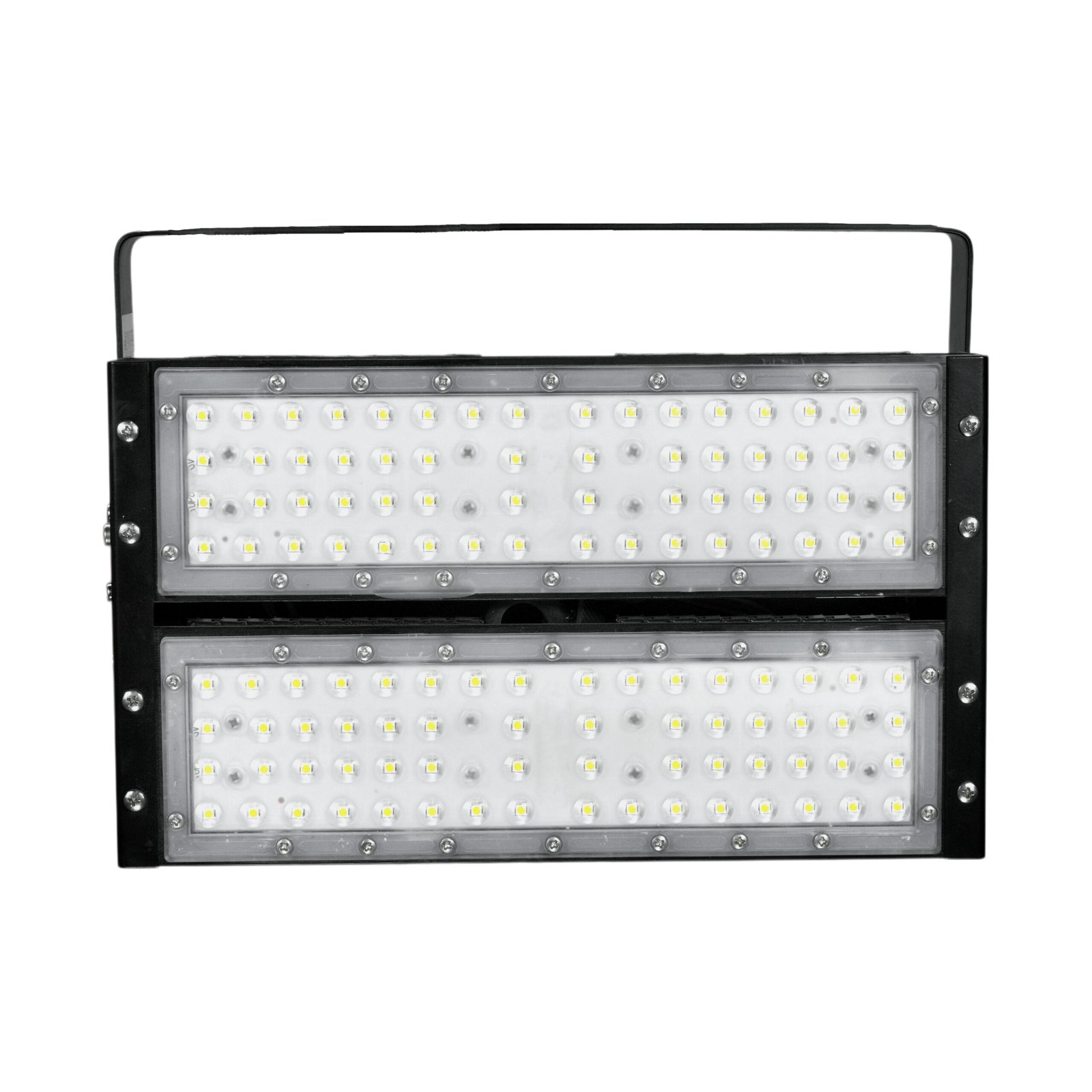

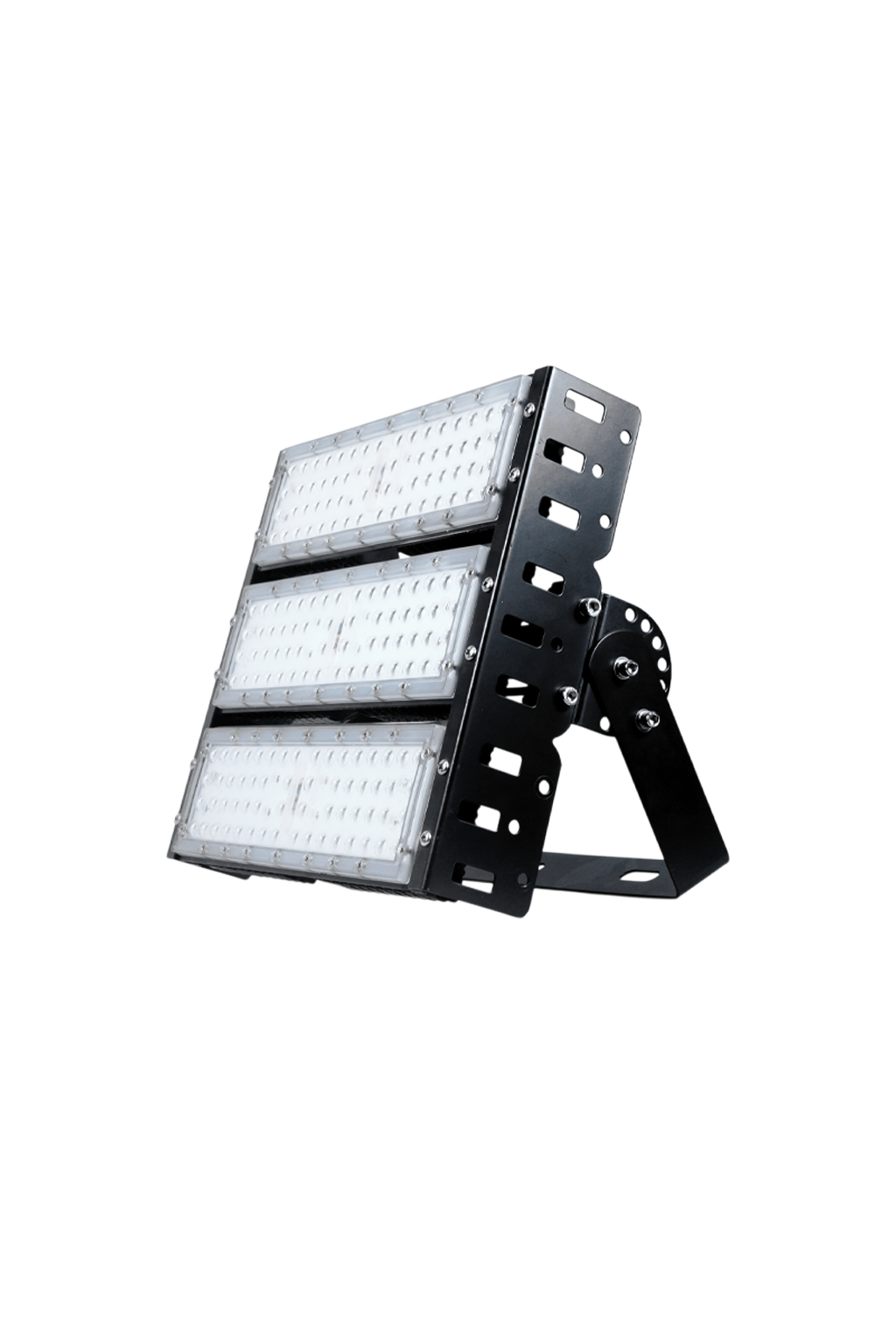

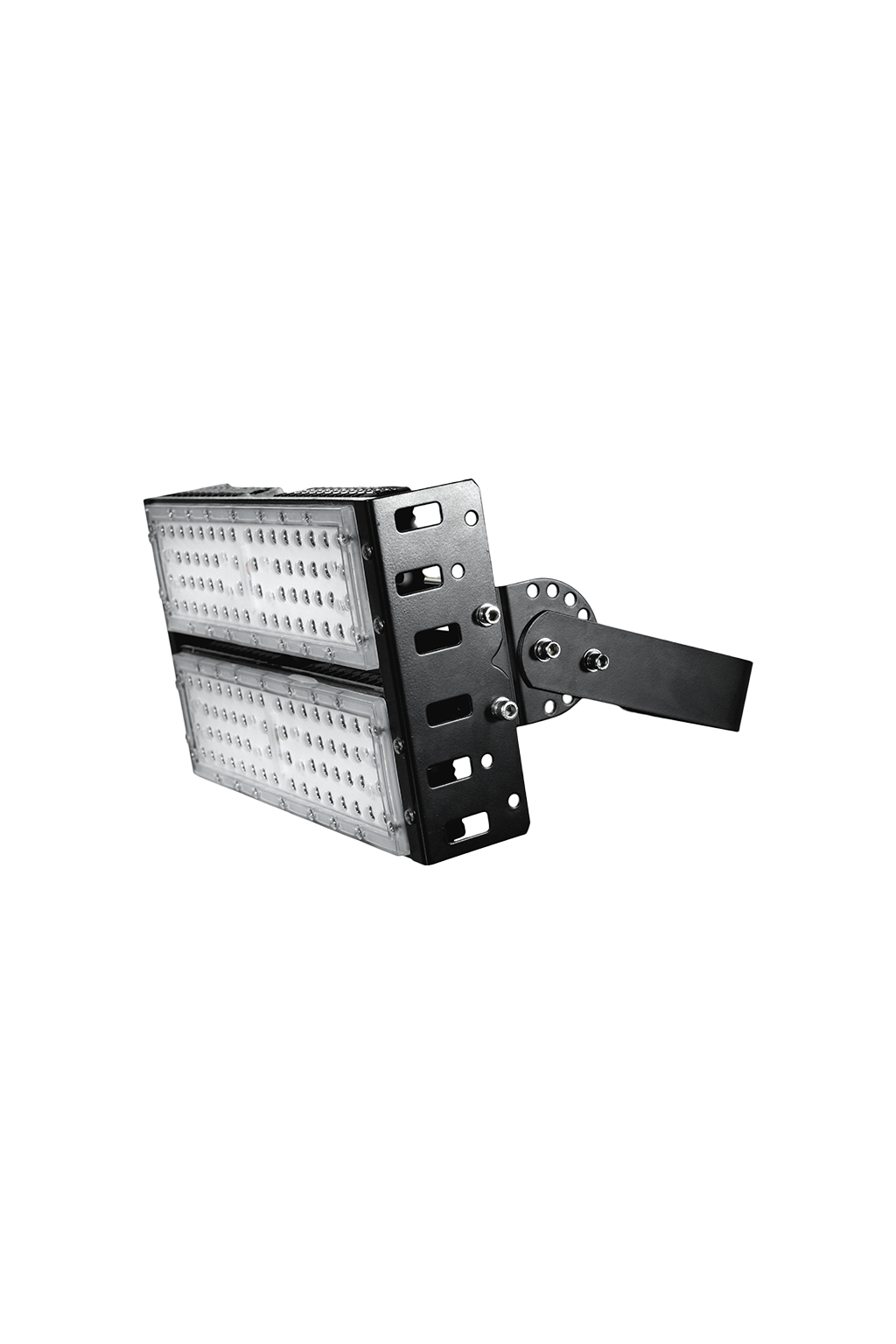

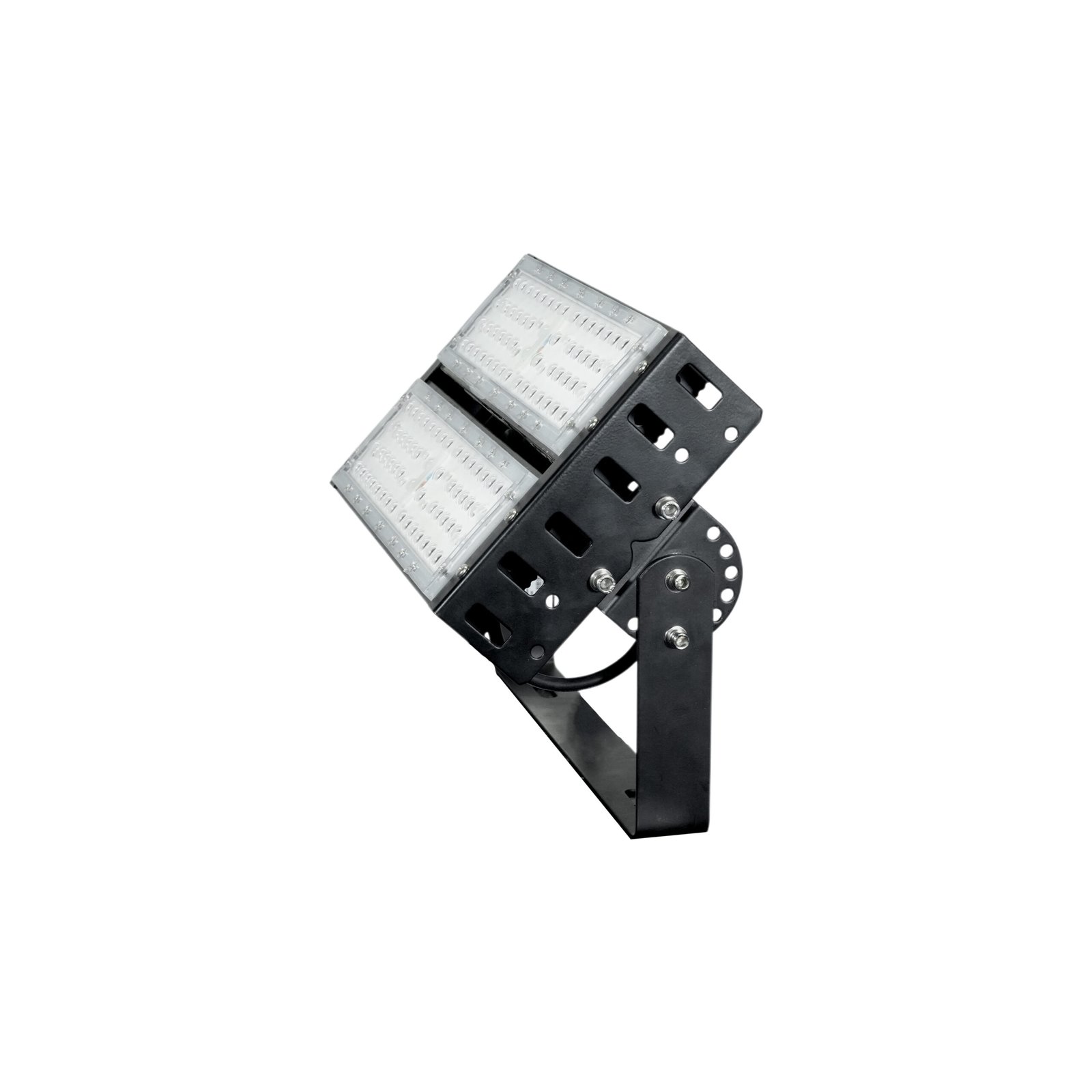

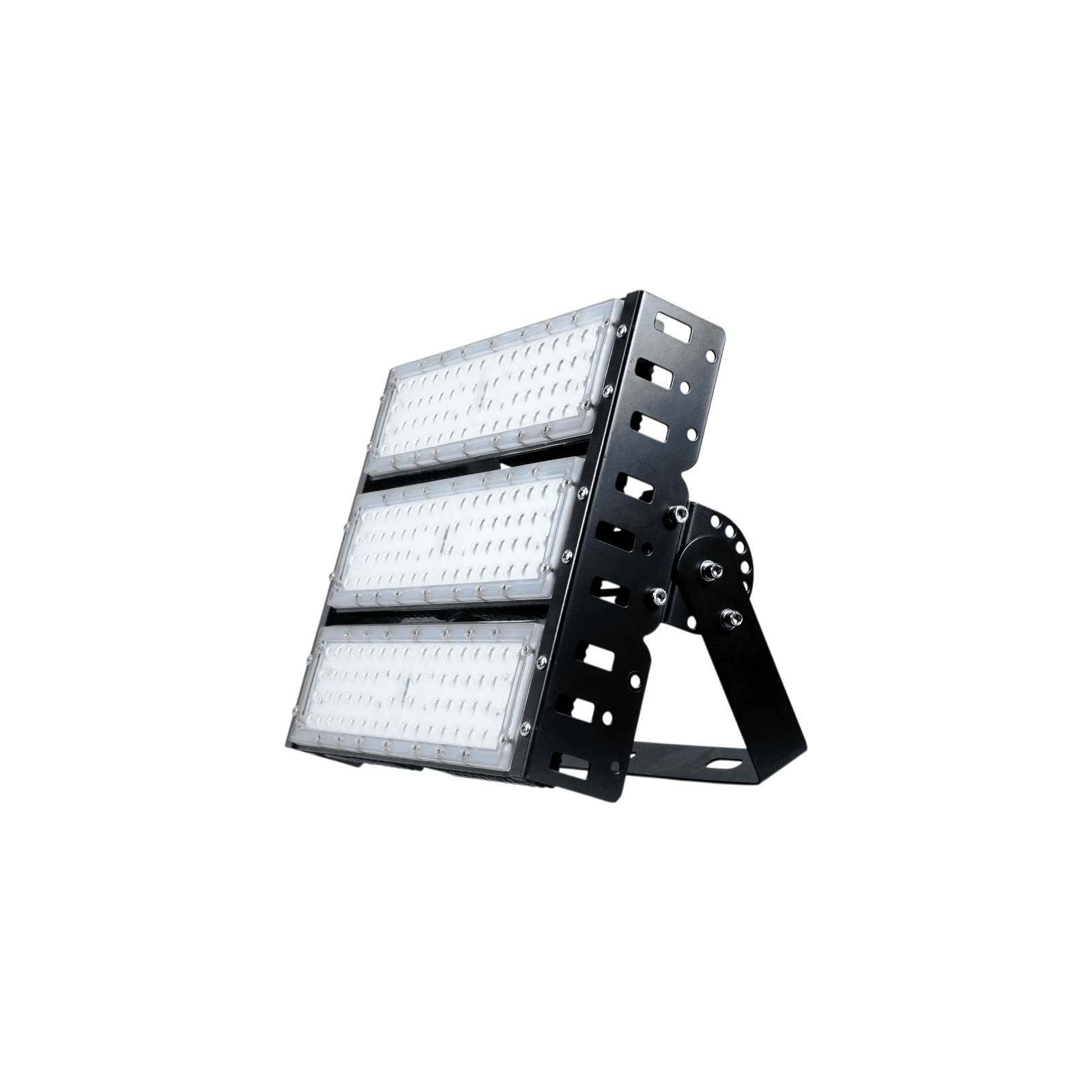

Civic F
50W, 100W, 150W, 200W, 250W, 300W, 400W, 500W
This range of products is popular for a wide range of applications, such as Outdoor/Indoor stadiums, Galleries, and Industrial areas CIVIC F is a versatile LED FLOOD Light that can be used widely Outdoors, easy to mount on the wall surfaces and Post tops. The luminaire offers a broad range of power, color temperatures and options like timer and sleep function.
| Colour | 3000K, 4000K, 6500K |
|---|---|
| Wattage | 100W, 150W, 200W, 250W, 300W, 400W, 500W, 50W |
Suitable for :
- Hotel
- Retail
- Shops
- Industrial kitchen areas
- Indoor stadiums
- Outdoor stadiums
- Reception Areas
- Stadiums
-
Features
-
Specifications
-
Technical Data
-
Downloads
- High Luminous efficacy - More light output

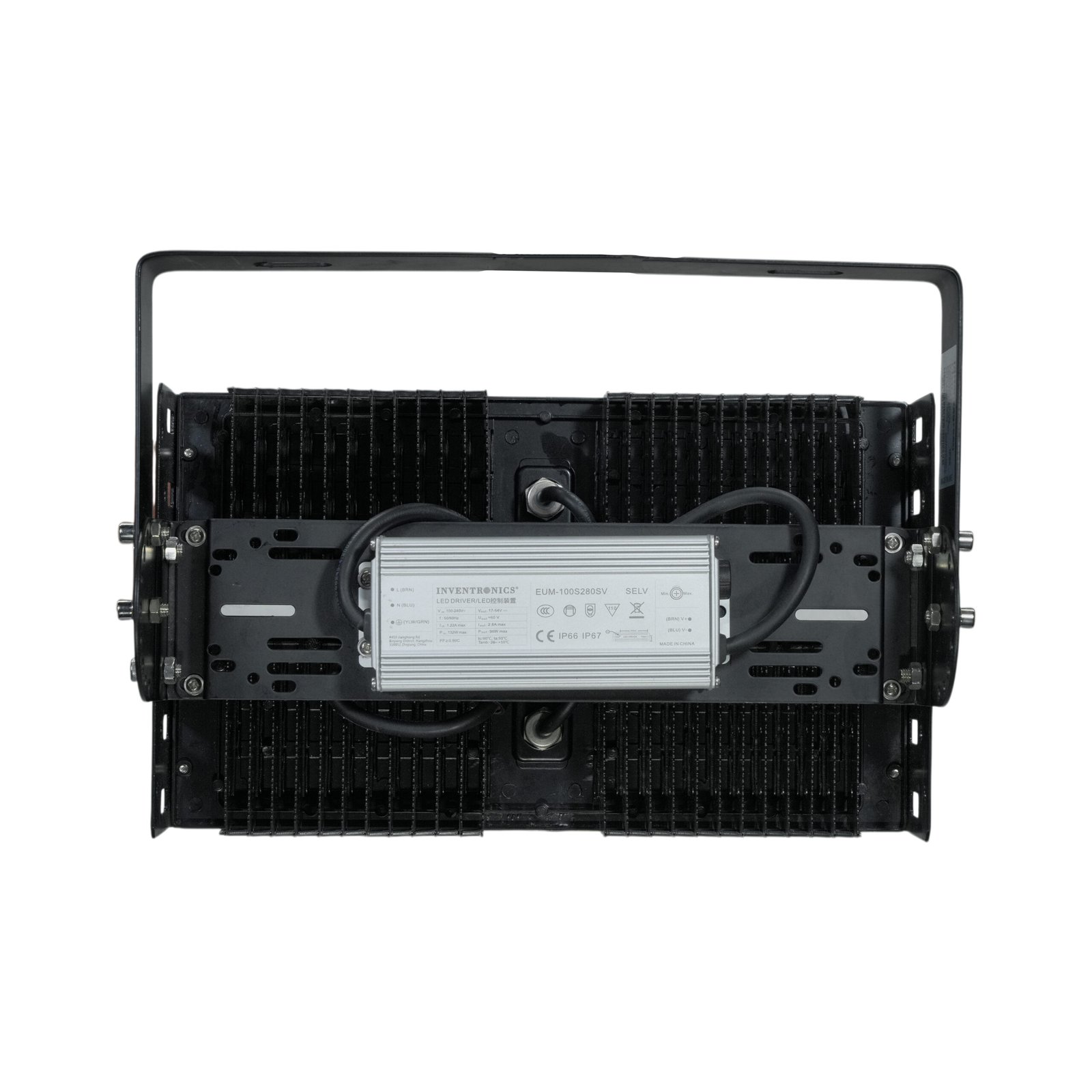

- Efficient Heat Dissipation – Die-cast aluminum housing
- Long life: 50,000+ hrs - Minimal maintenance

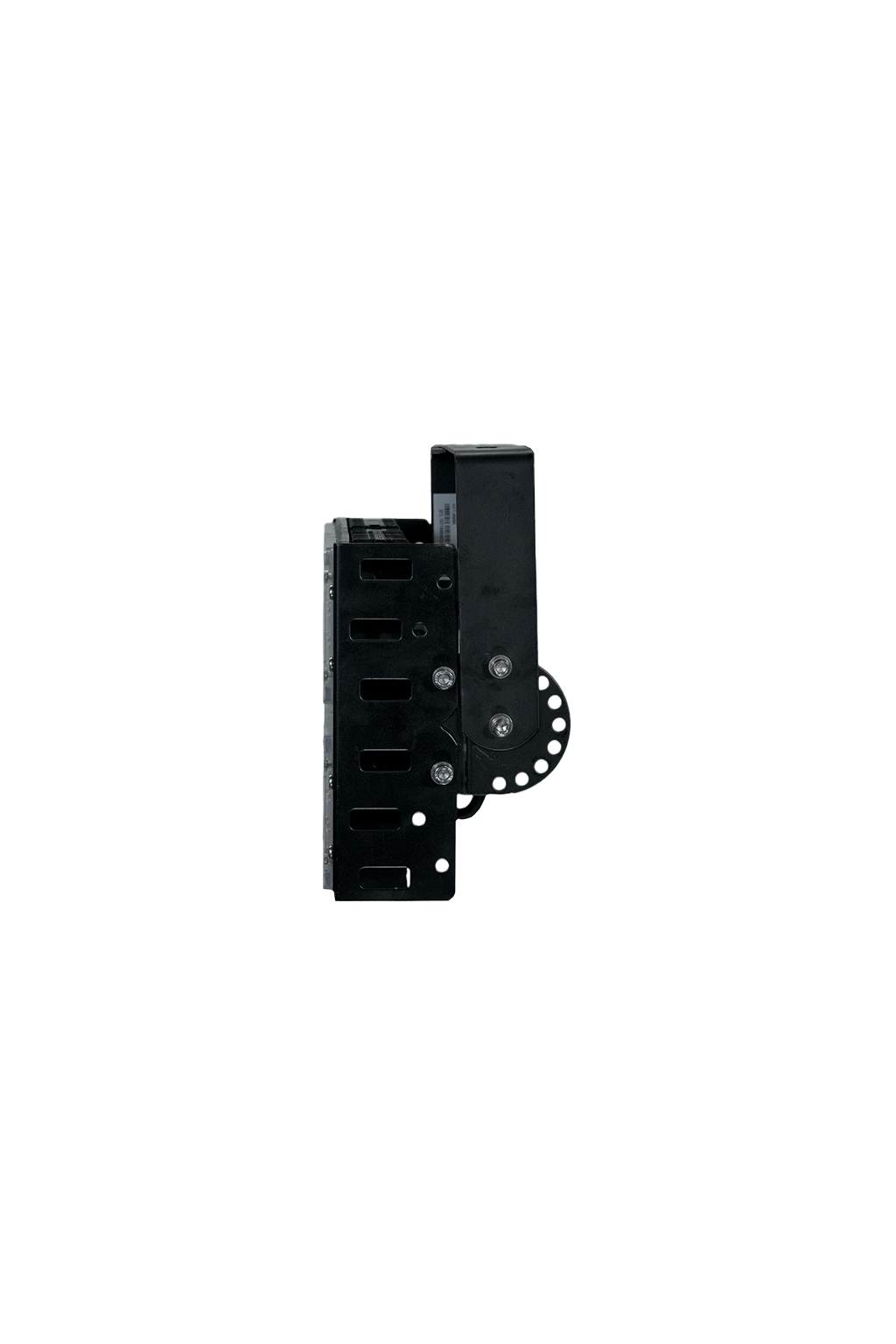

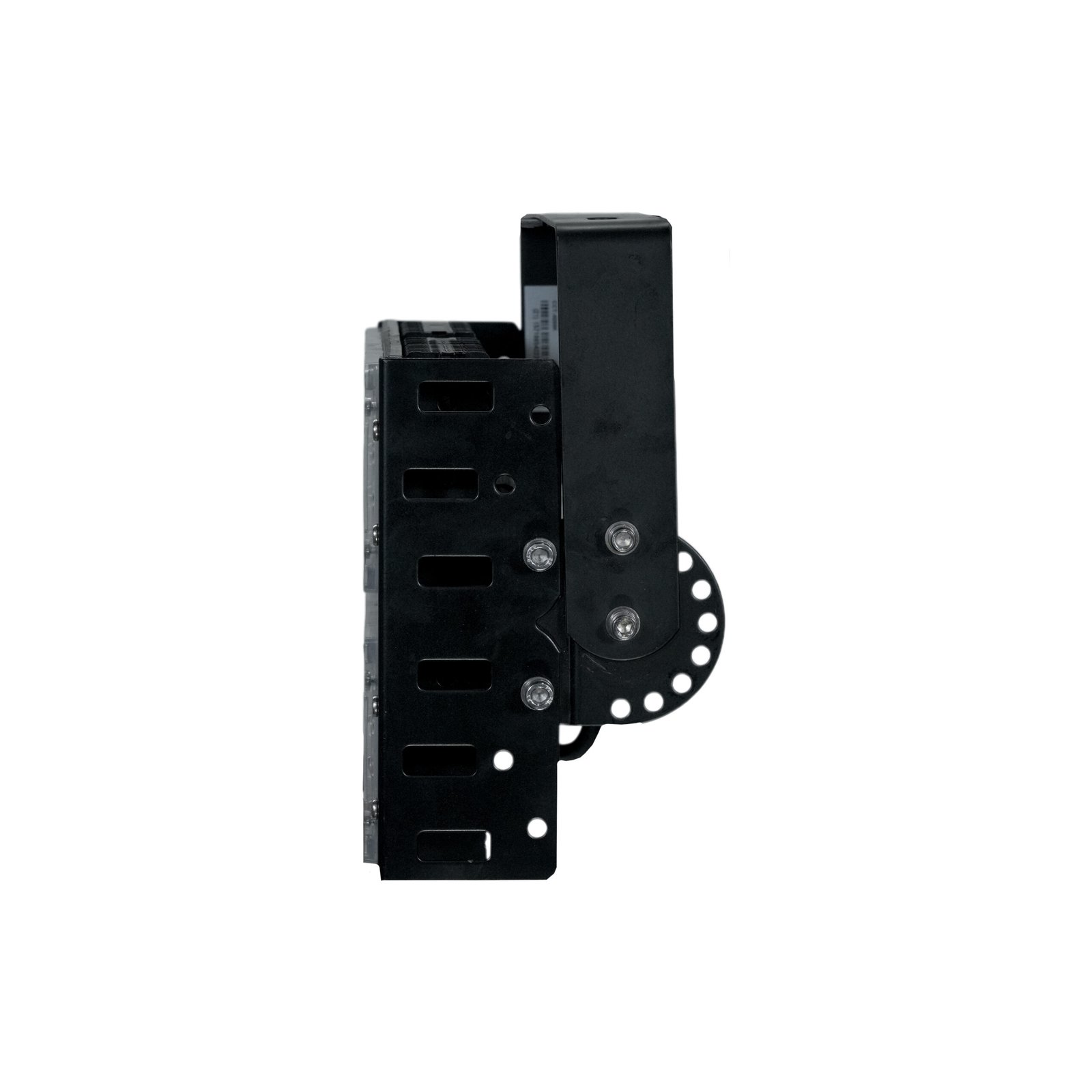

- Adjustable Bracket – Easy installation & aiming
- Consistent Performance & Quality - Delivers stable brightness
| Housing | Aluminium Die cast Body Body With PC Lens | |
| Body Colour | Black | |
| Light Source | Bridgelux | |
| Dimming | ON-OFF, 0.-10V,DALI | |
| Rated Luminous Efficacy | 130 lm/W | |
| LED Life Time | >50,000 hours | |
| Input Voltage | 100-240 VAC | |
| Input Frequency | 50-60 Hz | |
| Efficiency | >90% | |
| IP Rating | IP65 | |
| IK Rating | IK10 |
| Model No. | Power (W) | Lumens | CCT | CRI | Beam Angle | Dimensions (mm) | |||
| CVF-FLD-050 | 50 | 6500 | 3000K/4000K/6500K | >80 | 90.2° | L/D:87,W:315,H:230 mm | |||
| CVF-FLD-0100 | 100 | 13000 | 3000K/4000K/6500K | >80 | 93.3° | L/D:185,W:315,H:230 mm | |||
| CVF-FLD-0150 | 150 | 19680 | 3000K/4000K/6500K | >80 | 83.3° | L/D:280,W:315,H:230 mm | |||
| CVF-FLD-0200 | 200 | 27336 | 3000K/4000K/6500K | >80 | 91.5° | L/D:375,W:315,H:230 mm | |||
| CVF-FLD-0250 | 250 | 32500 | 3000K/4000K/6500K | >80 | 91.5° | L/D:468,W:315,H:220 mm | |||
| CVF-FLD-0300 | 300 | 39000 | 3000K/4000K/6500K | >80 | 94.0° | L/D:566,W:315,H:220 mm | |||
| CVF-FLD-0400 | 400 | 52000 | 3000K/4000K/6500K | >80 | 91.5° | L/D:375,W:645,H:220 mm | |||
| CVF-FLD-0500 | 500 | 65000 | 3000K/4000K/6500K | >80 | 91.5° | L/D:475,W:645,H:220 mm |
*D=Diameter; H=Height
