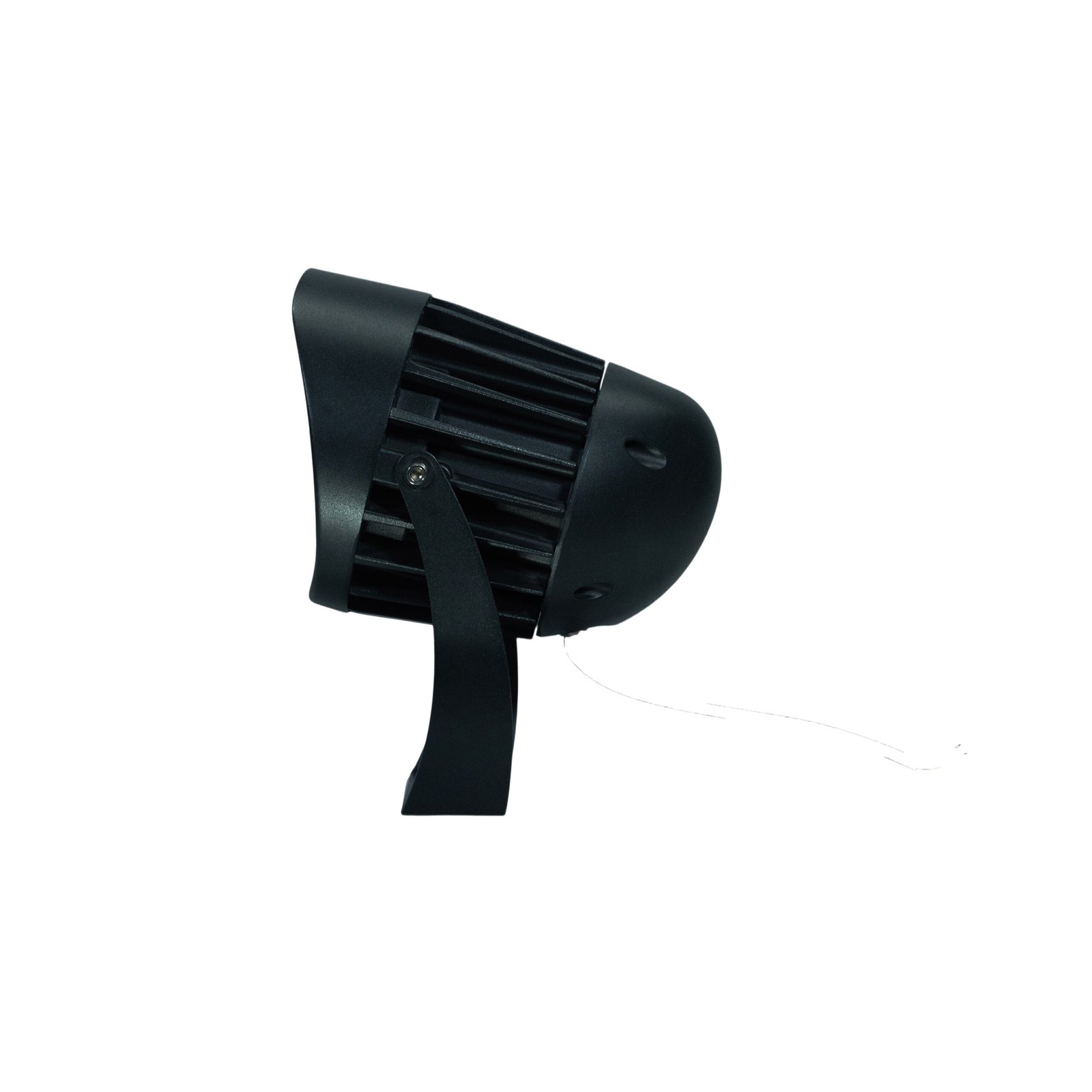

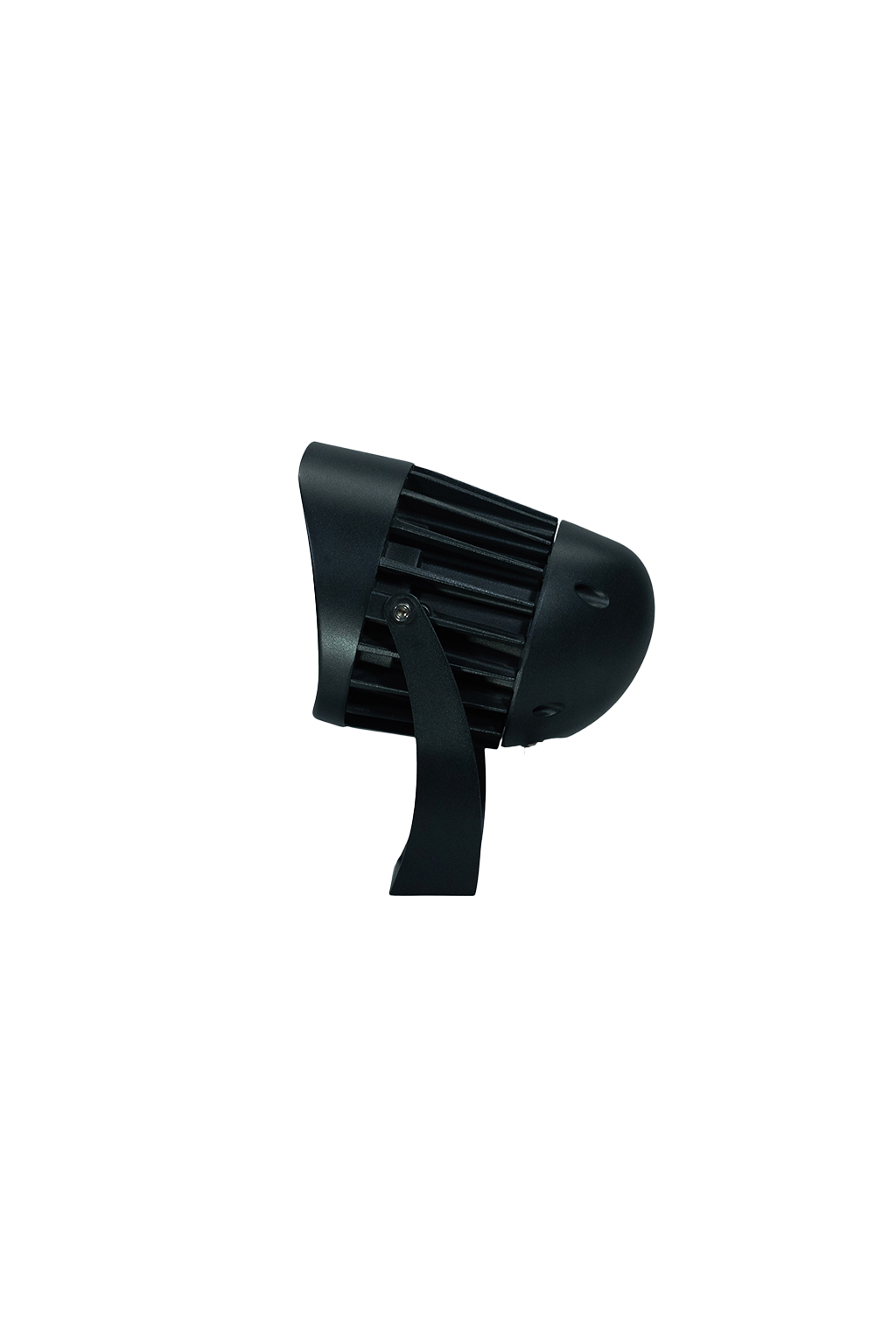

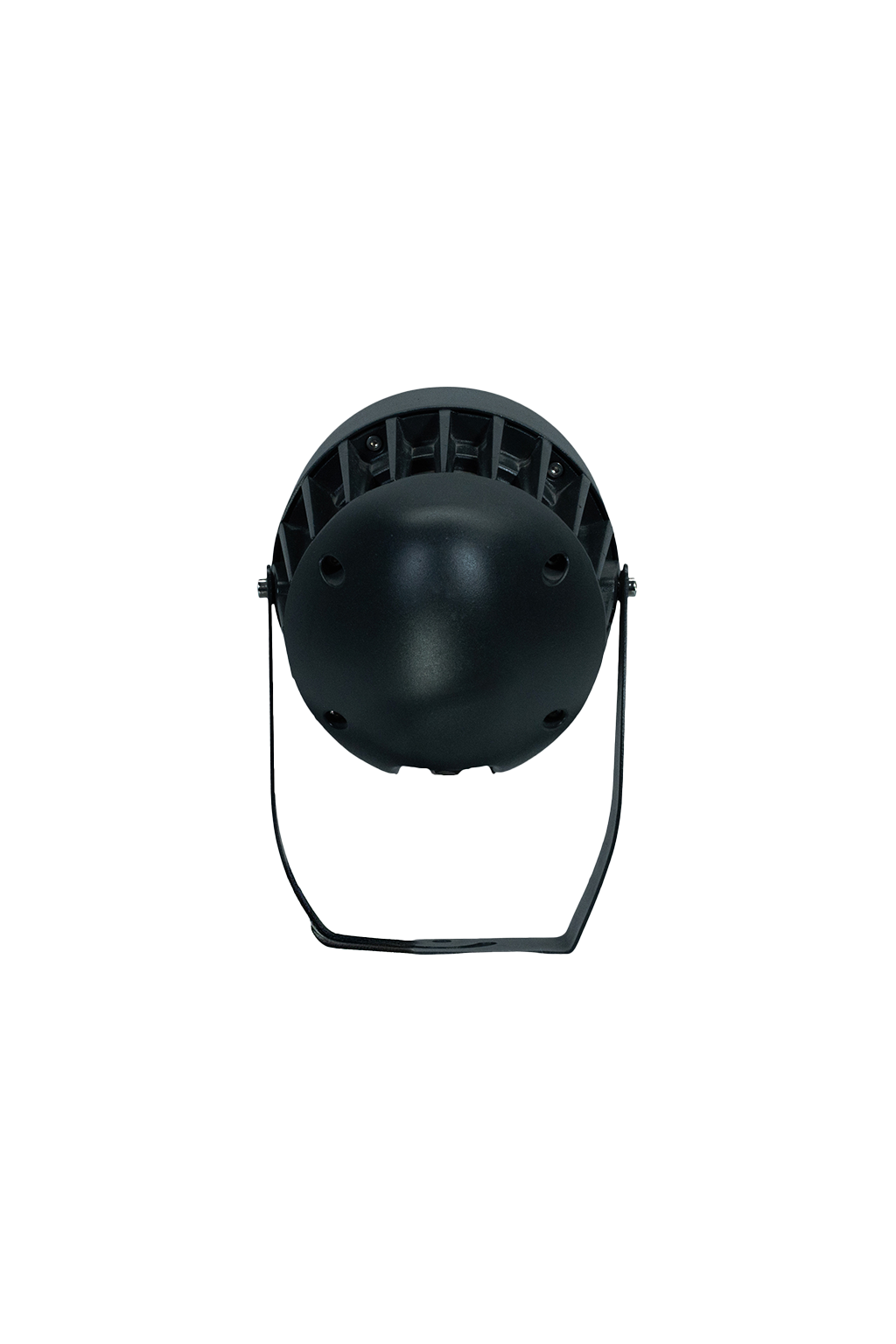

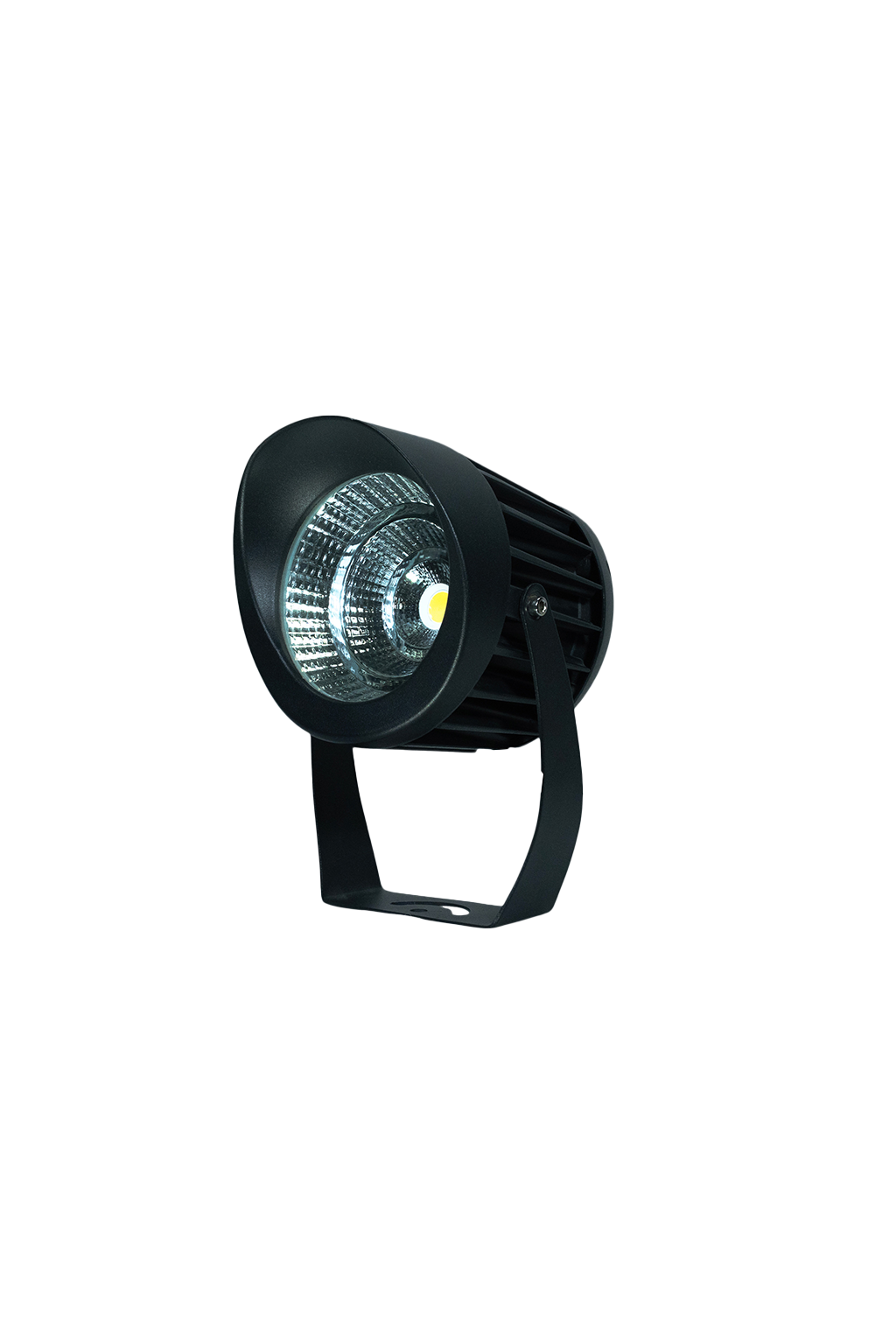

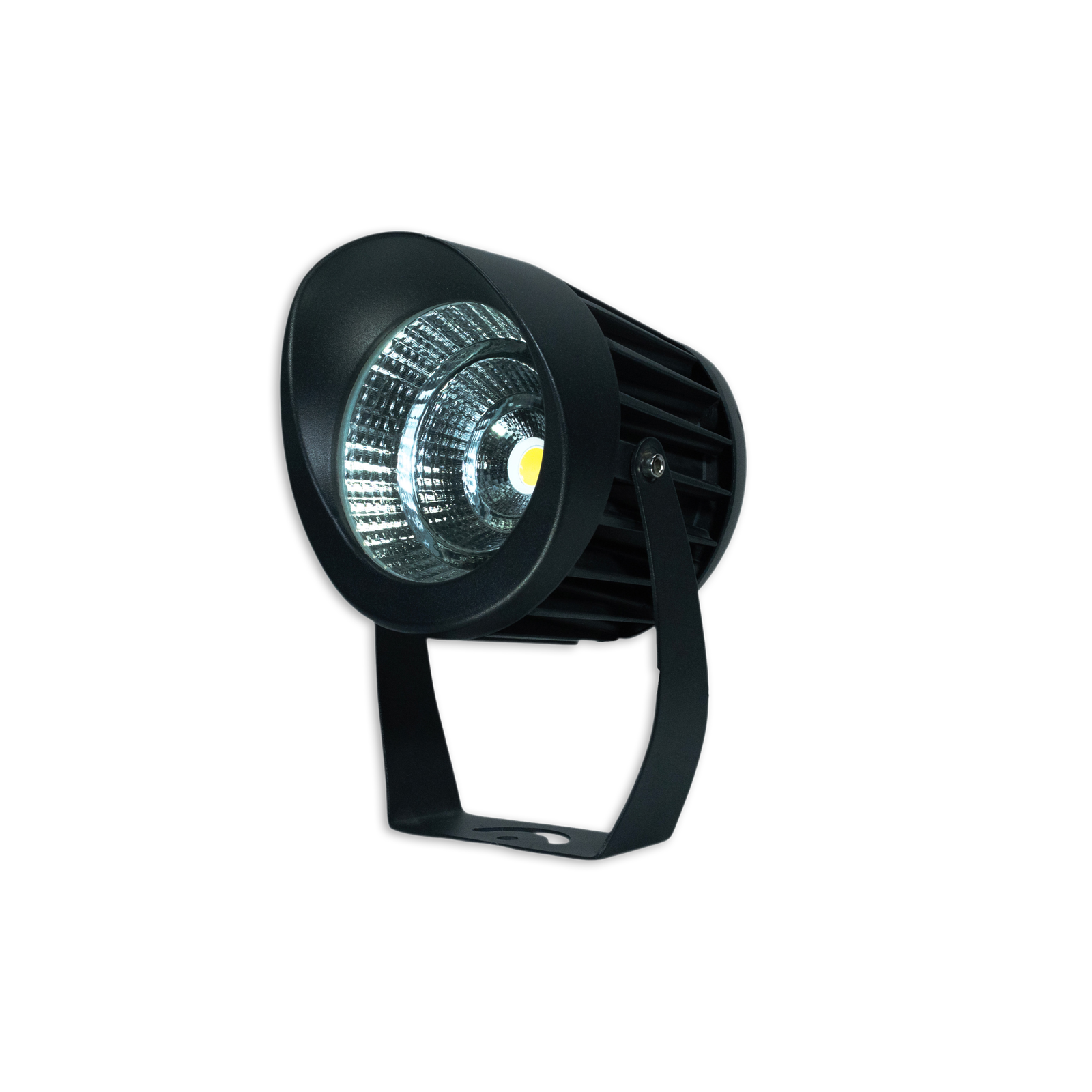

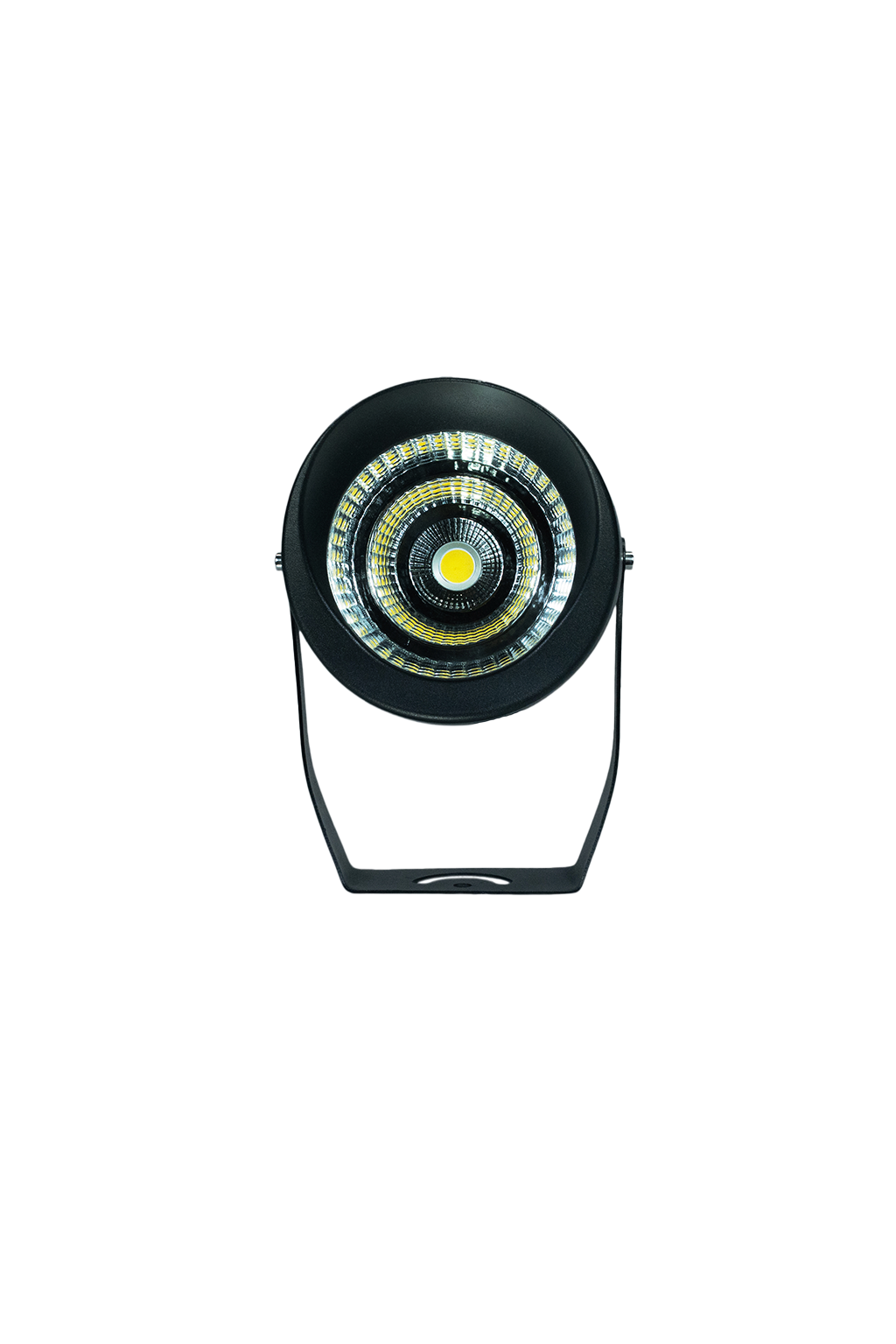

CORVUS
10W, 20W, 30W
CORVUS is an LED Projector Light designed to highlight and accentuate the architectural features of a building ‘exterior. The luminaire offers a broad range of power and color temperatures.
The luminaire is suitable for a wide range of applications such as architectural accent, billboard lighting, hotels, background lighting for retail display, event lighting.
| Colour | 3000K, 4000K, 6500K |
|---|---|
| Wattage | 10W, 20W, 30W |
Suitable for :
- Dining Room
- Hotel
- Restaurant
- Offices
- Retail
- Shops
- Store Rooms
- Residential areas
- Ring roads
- Facade Lighting
- Highways
- Reception Areas
-
Features
-
Specifications
-
Technical Data
-
Downloads
- High Luminous efficacy - More light output
- Long life: 50,000+ hrs - Minimal maintenance
- Easy installation - Tool‑free spring‑clip installation.
- Consistent Performance & Quality - Delivers stable brightness
- IP65 Rated – Protected against dust and water for reliable performance.
| Housing | Aluminium Die-cast with Clear Glass | |
| Body Colour | Black | |
| Light Source | Bridgelux | |
| Dimming | ON-OFF,TRIAC, 0.-10V,DALI | |
| Rated Luminous Efficacy | 100 lm/W | |
| LED Life Time | >50,000 hours | |
| Input Voltage | 220-240 VAC | |
| Input Frequency | 50-60 Hz | |
| Efficiency | >90% | |
| IP Rating | IP65 | |
| IK Rating | IK08 |
| Model No. | Power (W) | Lumens | CCT | CRI | Beam Angle | Dimensions (mm) | |||
| CS-FL-10 | 10 | 1000 | 3000K/4000K/6500K | >80 | 26.6° | L/D:94mm,W:NA,H:145 mm | |||
| CS-FL-20 | 20 | 2000 | 3000K/4000K/6500K | >80 | 18.7° | L/D:120,W:NA,H:190 mm | |||
| CS-FL-30 | 30 | 3000 | 3000K/4000K/6500K | >80 | 24.4° | L/D:120,W:NA,H:190 mm |
*D=Diameter; H=Height
