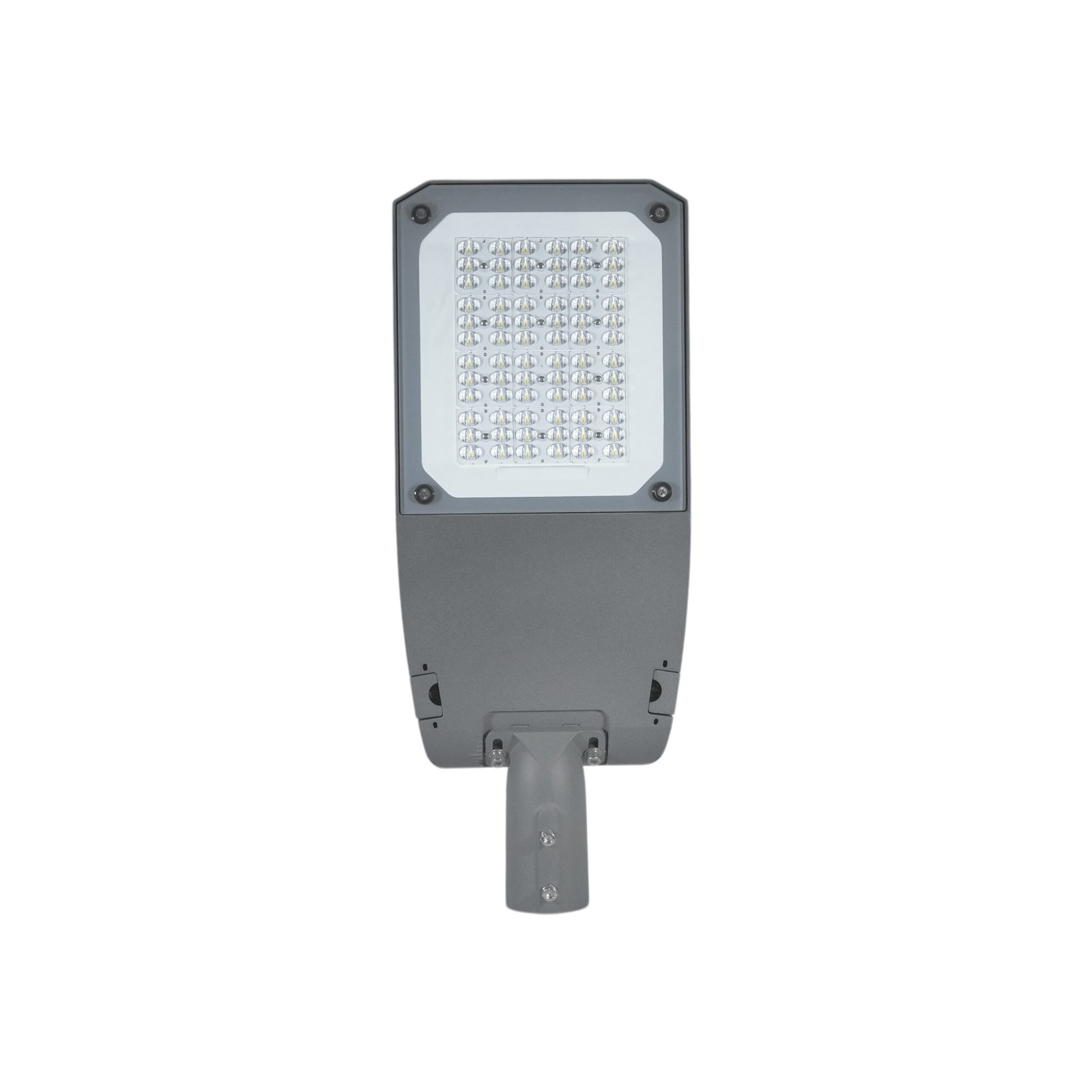

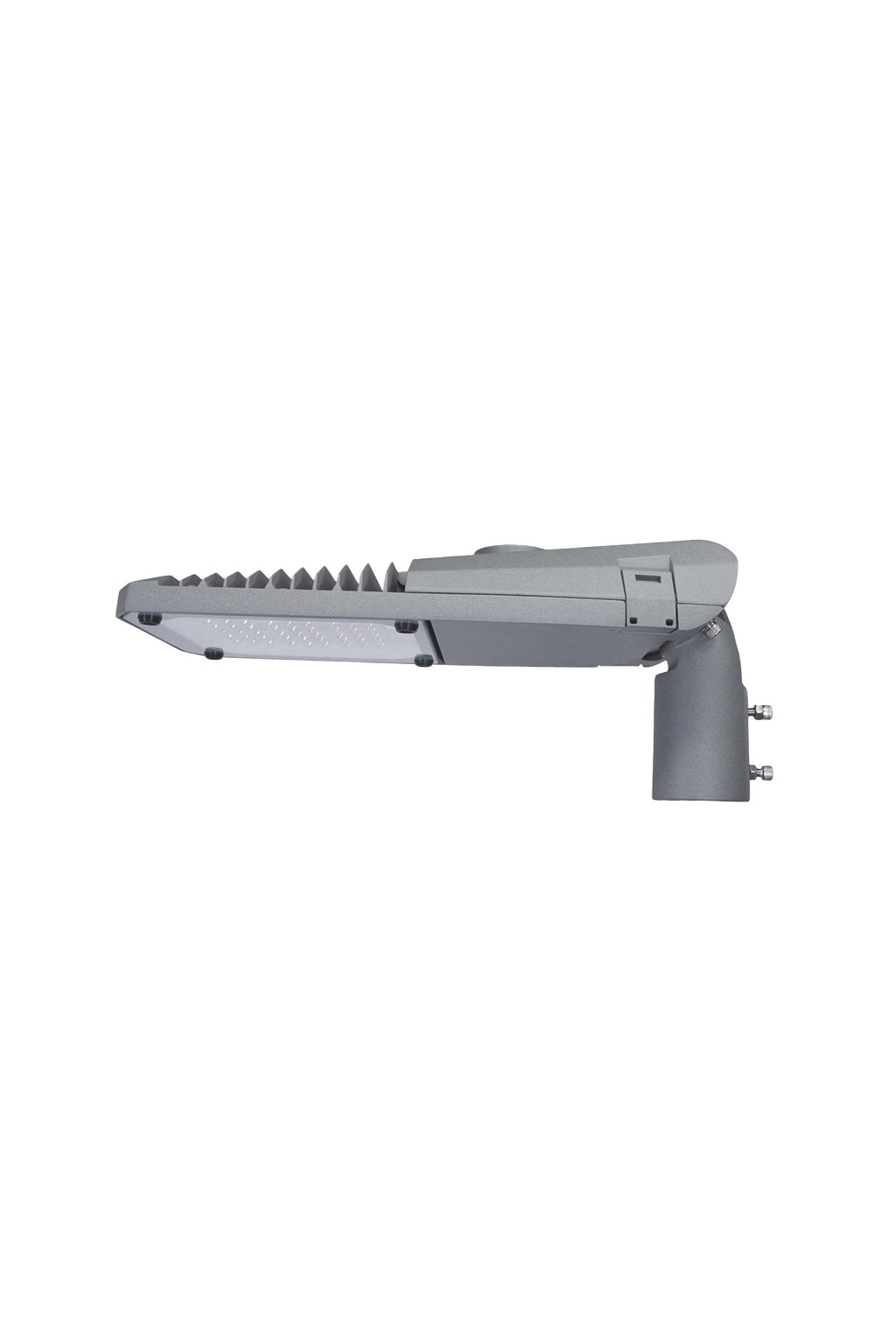

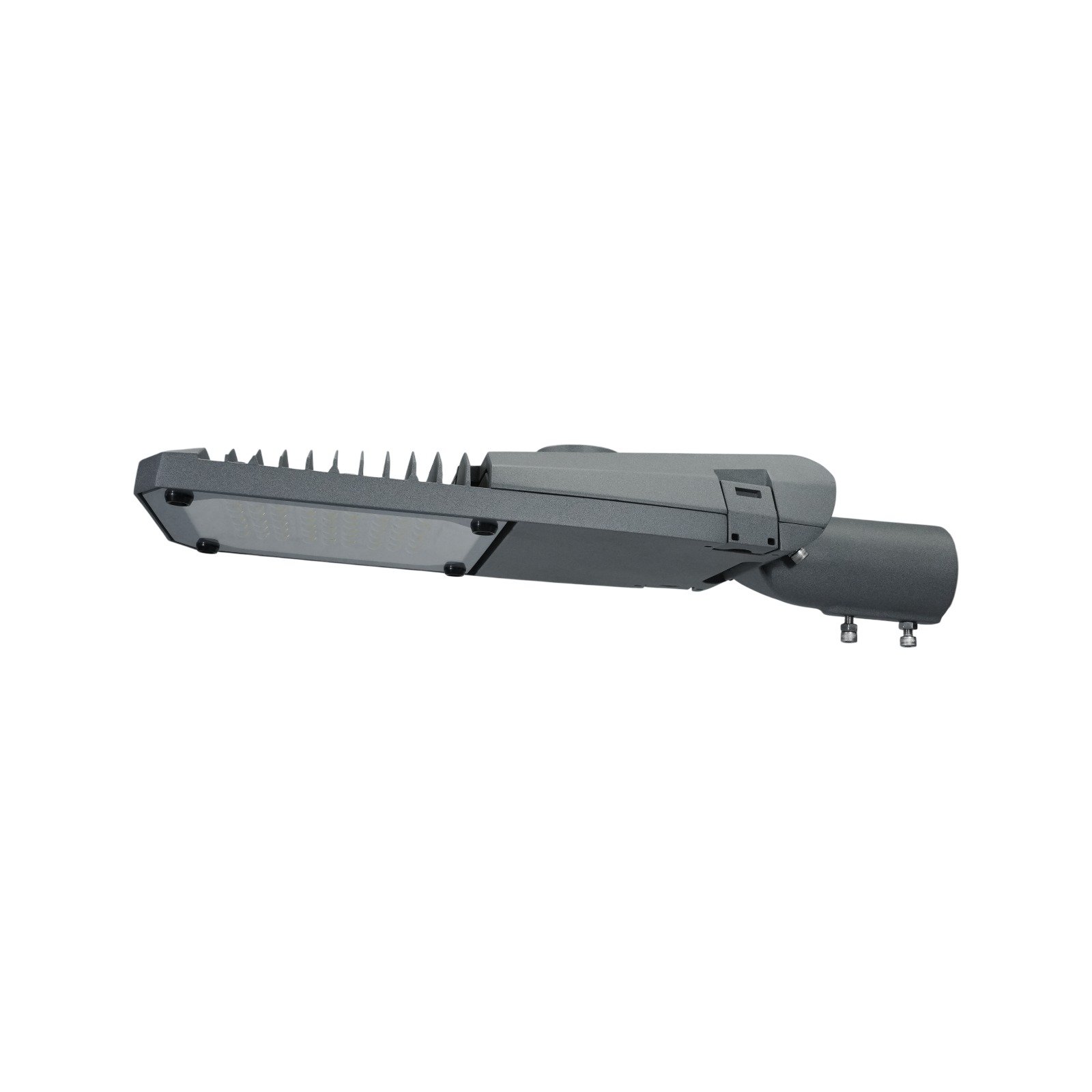

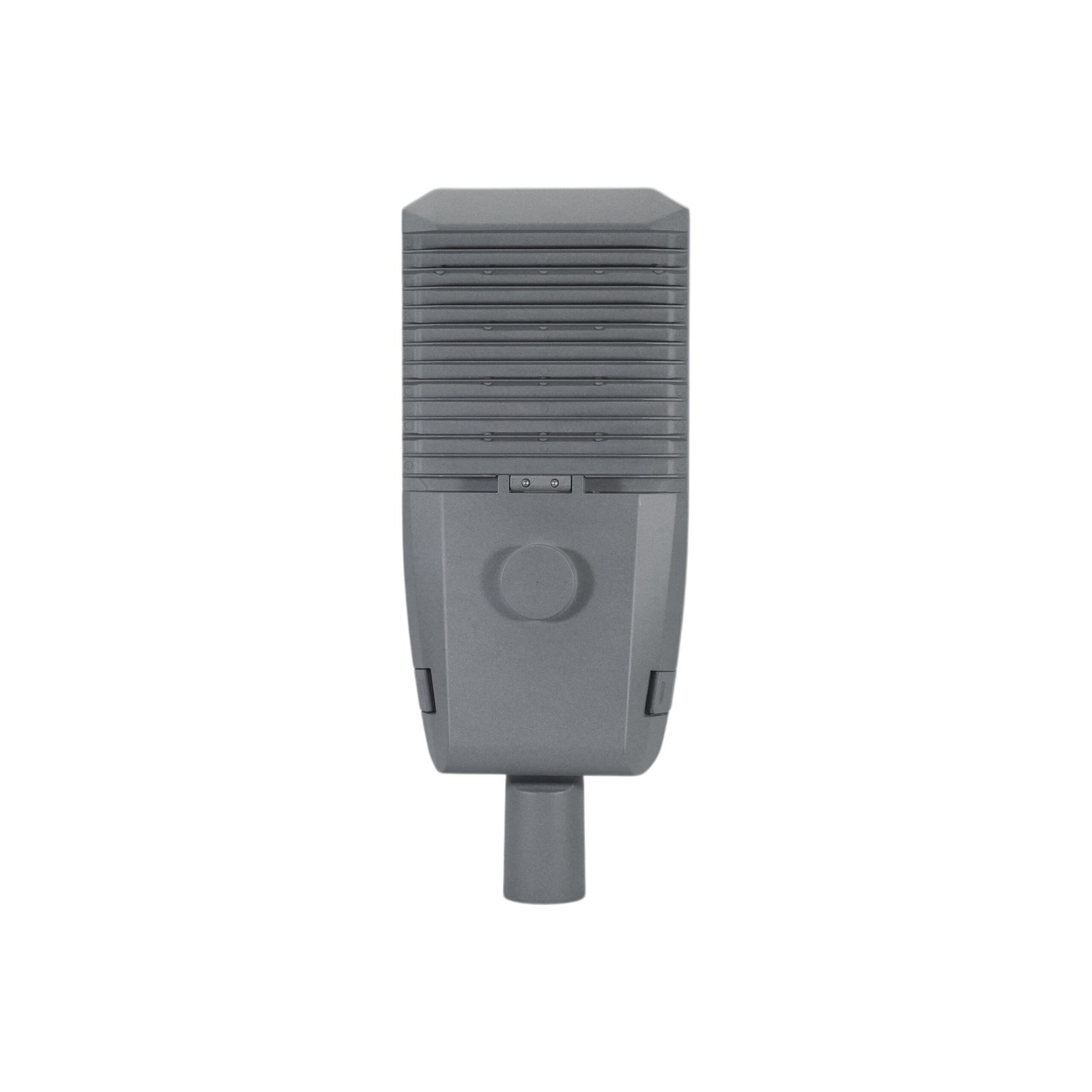

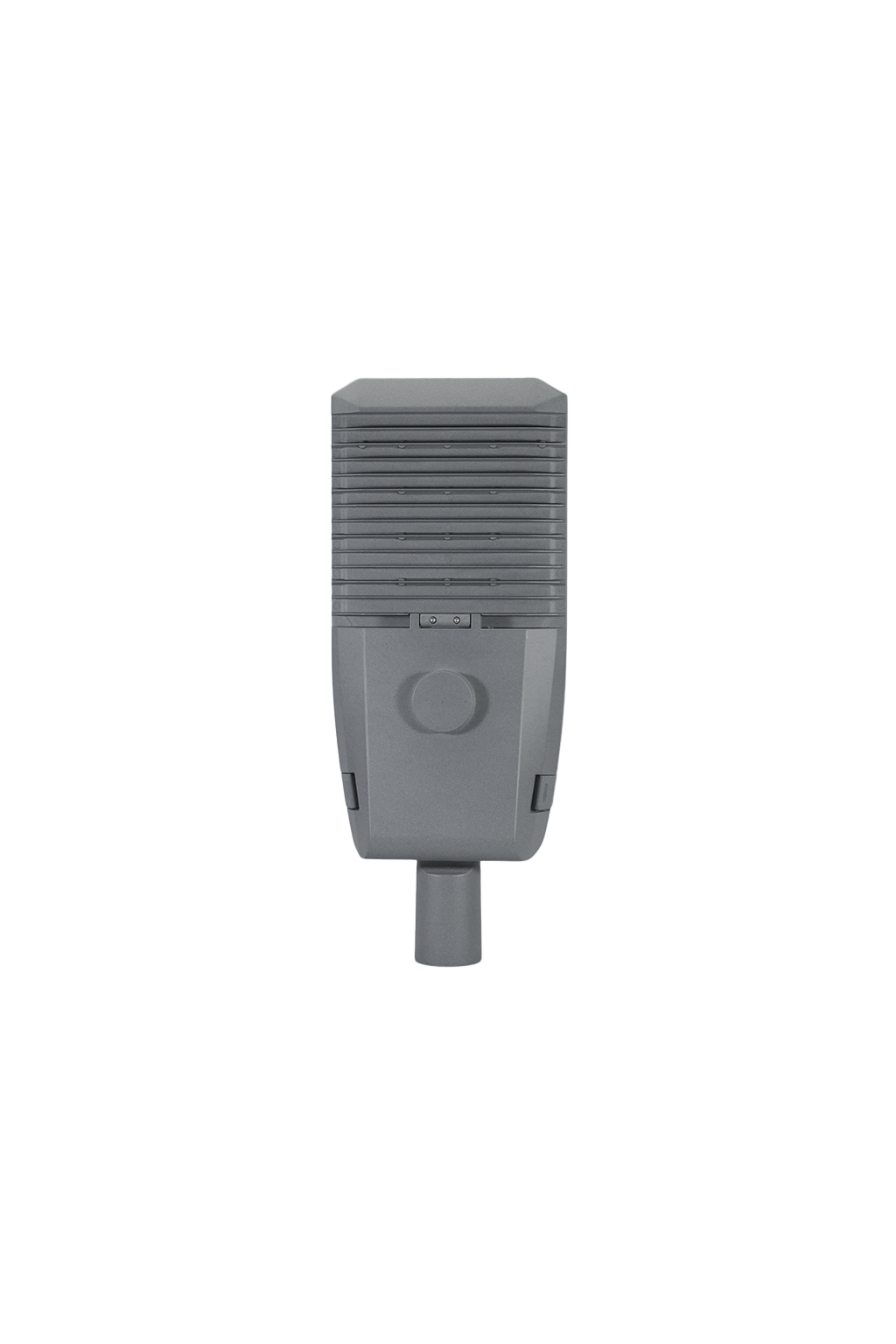

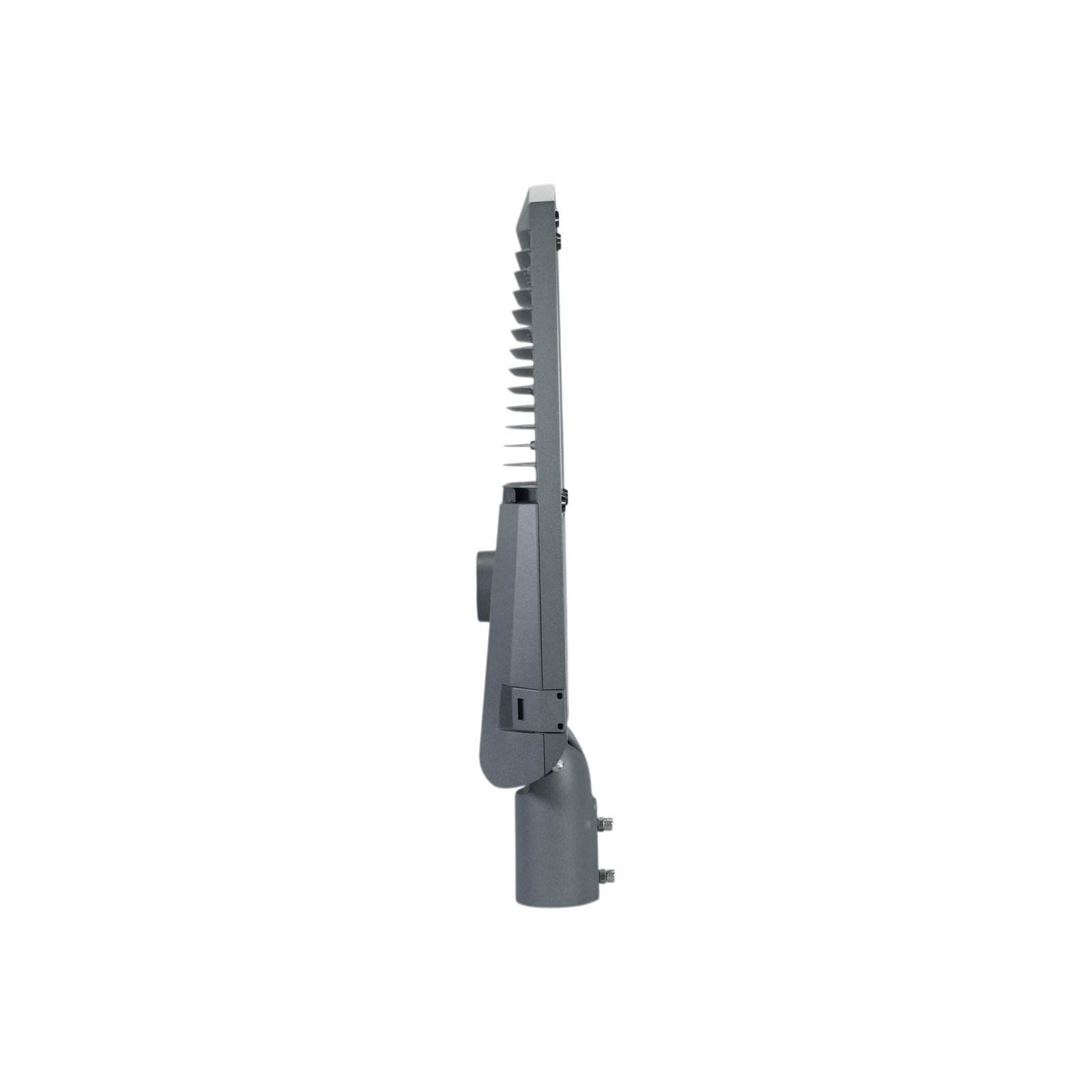

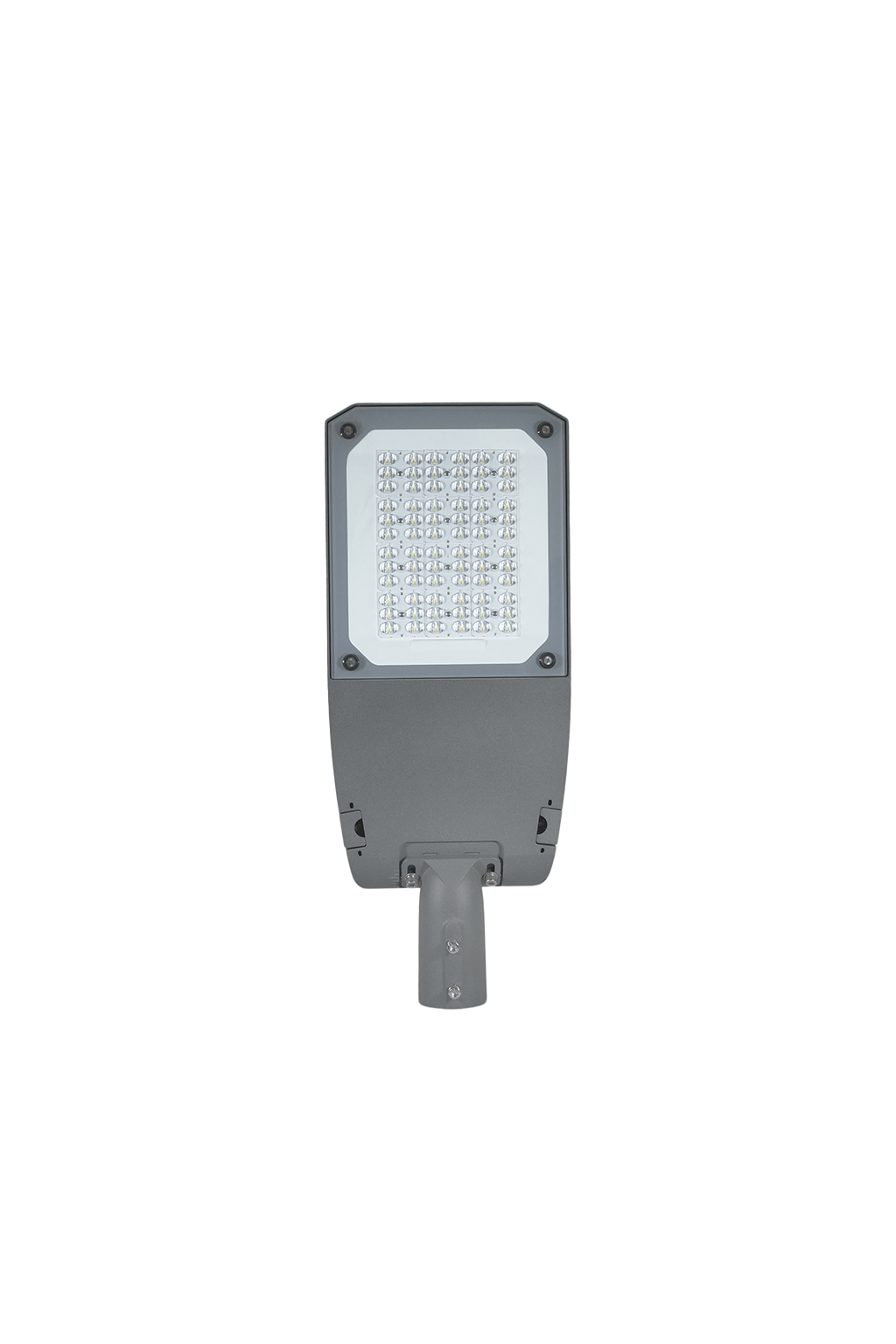

Falcon G
40W, 60W, 80W, 100W, 120W, 150W, 180W, 200W, 240W
It is a high-performance outdoor lighting solution engineered for modern urban and roadway applications. Designed with advanced LED technology and robust construction, it delivers superior brightness, energy efficiency, and long-term reliability. Its sleek aerodynamic design enhances both functionality and aesthetic appeal, making it ideal for city streets, highways, and public areas.
| Colour | 3000K, 4000K, 5700k, 6500K |
|---|---|
| Wattage | 100W, 120W, 150W, 180W, 200W, 240W, 40W, 60W, 80W |
Suitable for :
- Hotel
- Shops
- Indoor stadiums
- Outdoor stadiums
- Residential areas
- Parking Areas
- Stadiums
-
Features
-
Specifications
-
Technical Data
-
Downloads
- Tool Free - Easy maintenance.
- Multiple Beam Choices – adaptable for any space.
- High Luminous Efficacy -More light output.
- Efficient Heat Dissipation – Die-cast aluminum housing.
- Consistent Performance & Quality - Delivers stable brightness
| Housing | Aluminium Die cast Body Body With PC Lens & Tempered Glass | |
| Body Colour | Grey | |
| Light Source | Bridgelux | |
| Dimming | ON-OFF,0.-10V,DALI | |
| Rated Luminous Efficacy | 160 lm/W | |
| LED Life Time | >50,000 hours | |
| Input Voltage | 100-240 VAC | |
| Input Frequency | 50-60 Hz | |
| Efficiency | >90% | |
| IP Rating | IP66 | |
| IK Rating | IK08 |
| Model No. | Power (W) | Lumens | CCT | CRI | Beam Angle | Dimensions (mm) | |||
| Falcon G-40 | 40 | 5600 | 3000K/4000K/5700K/6500K | >80 | 119.9° | L/D:541,W:200,H:113, ARM DIA:68 mm | |||
| Falcon G-60 | 60 | 8400 | 3000K/4000K/5700K/6500K | >80 | 119.9° | L/D:541,W:200,H:113, ARM DIA:68 mm | |||
| Falcon G-80 | 80 | 11200 | 3000K/4000K/5700K/6500K | >80 | 113.9° | L/D:602,W:243,H:121, ARM DIA:68 mm | |||
| Falcon G-100 | 100 | 14000 | 3000K/4000K/5700K/6500K | >80 | 113.9° | L/D:602,W:243,H:121, ARM DIA:68 mm | |||
| Falcon G-120 | 120 | 16800 | 3000K/4000K/5700K/6500K | >80 | 117.7° | L/D:652,W:263,H:121, ARM DIA:68 mm | |||
| Falcon G-150 | 150 | 21000 | 3000K/4000K/5700K/6500K | >80 | 117.7° | L/D:652,W:263,H:121, ARM DIA:68 mm | |||
| Falcon G-180 | 180 | 25200 | 3000K/4000K/5700K/6500K | >80 | 110.8° | L/D:823,W:314,H:121, ARM DIA:68 mm | |||
| Falcon G-200 | 200 | 28000 | 3000K/4000K/5700K/6500K | >80 | 110.8° | L/D:823,W:314,H:121, ARM DIA:68 mm | |||
| Falcon G-240 | 240 | 33600 | 3000K/4000K/5700K/6500K | >80 | 110.8° | L/D:823,W:314,H:121, ARM DIA:68 mm |
*D=Diameter; H=Height
