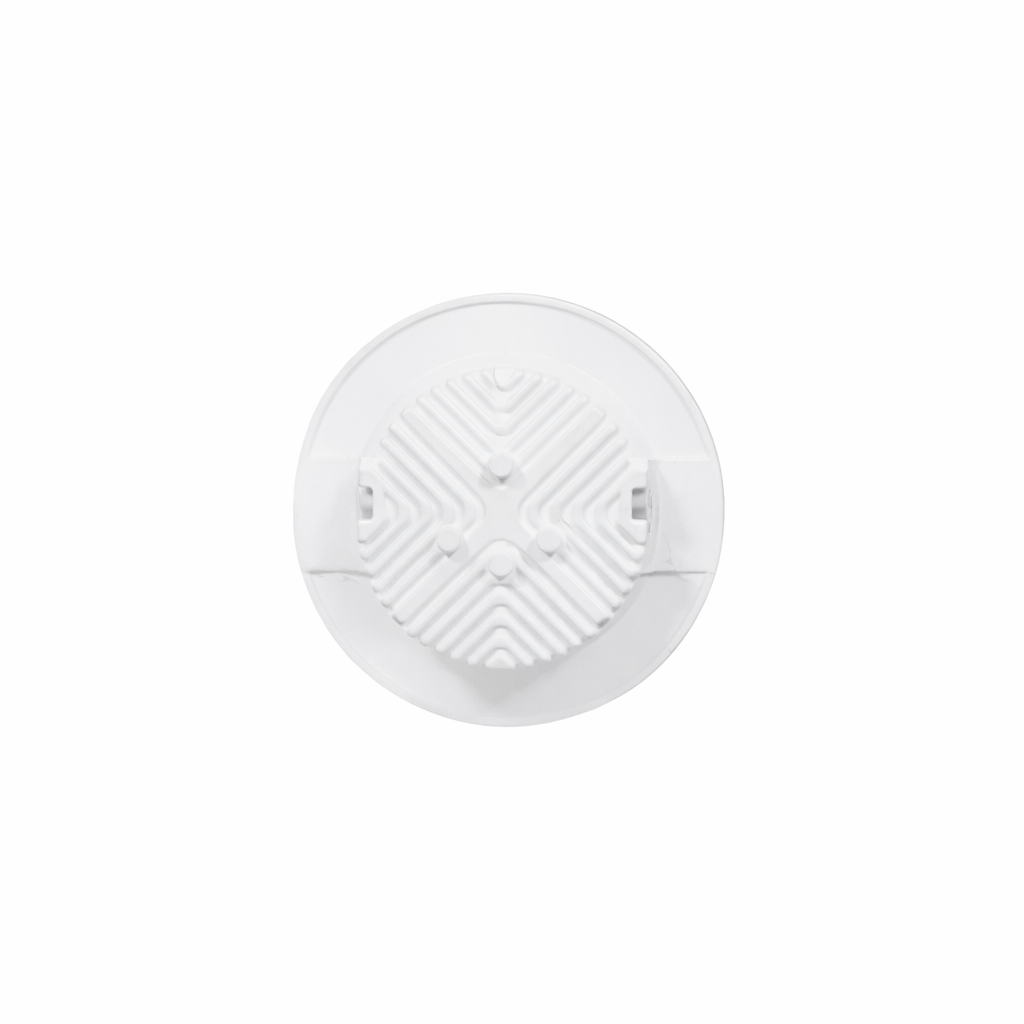

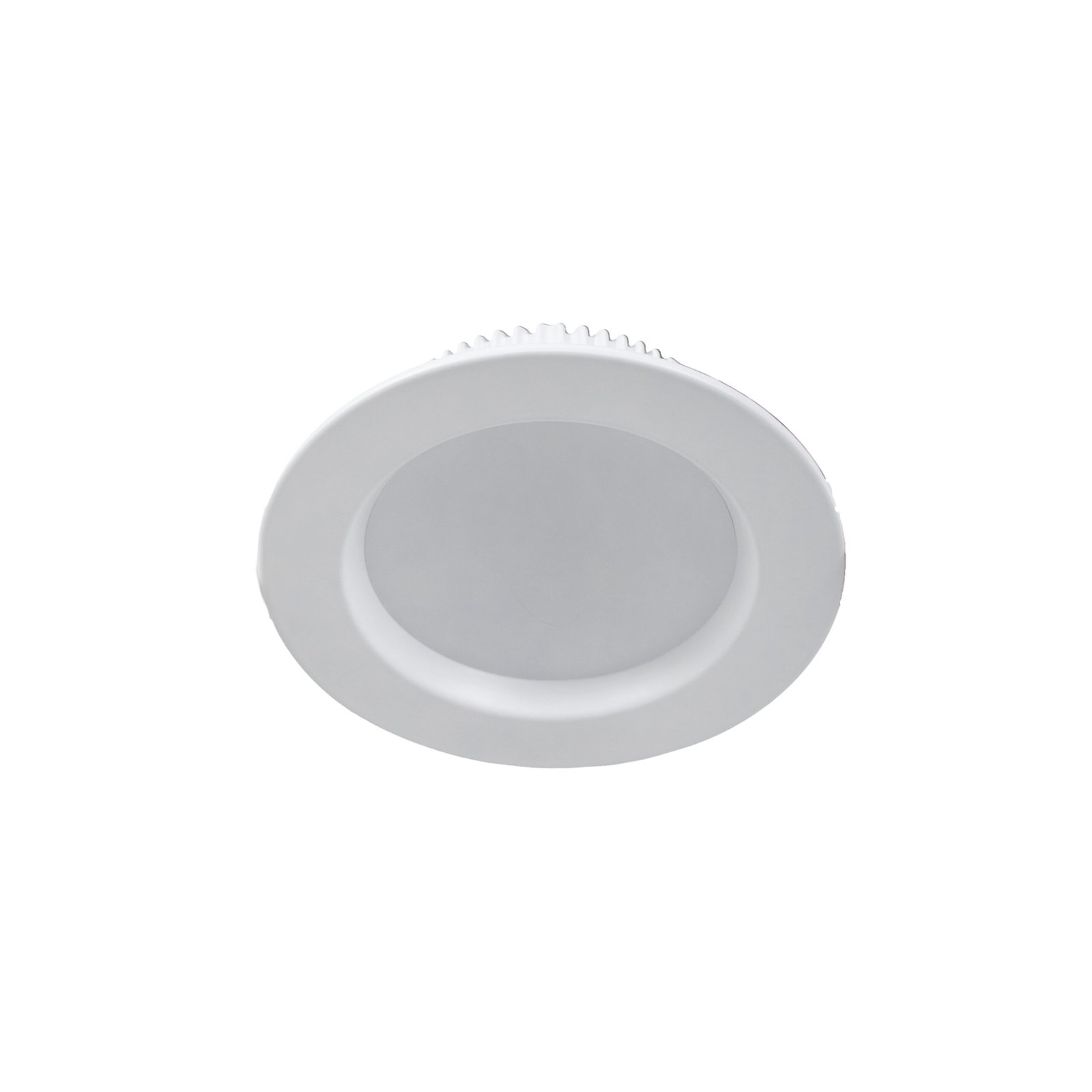

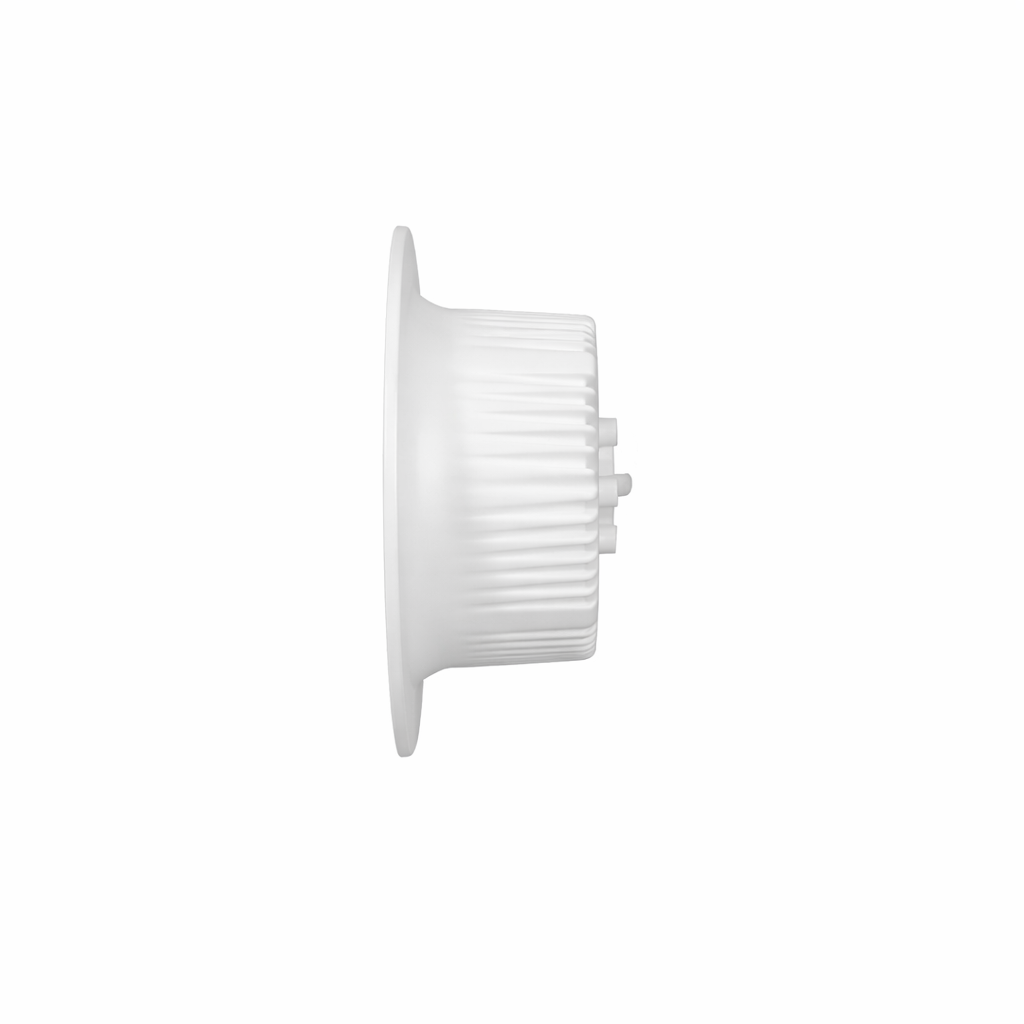

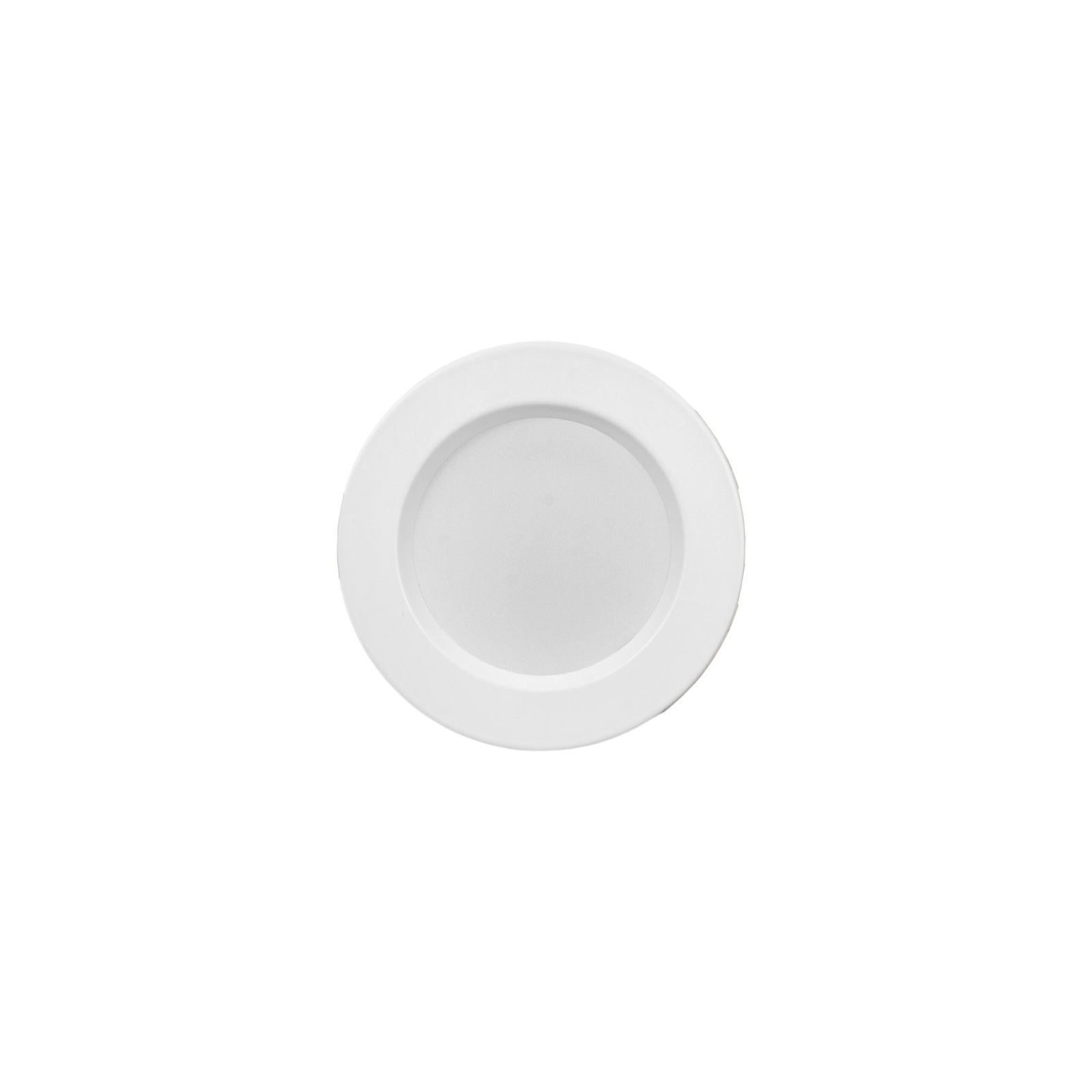

Magnor RD
3W,7W,9W,12W,15W,18W,24W,36W
Sleek, high efficiency, recessed LED downlights for indoor lighting applications
| Colour | 3000K, 4000K, 6500K |
|---|---|
| Wattage | 03W, 07W, 09W, 12W, 15W, 18W, 24W, 36W |
Suitable for :
- Home
- Living Room
- Hospital
- Hotel
- Restaurant
- Offices
- Shops
- Banks
-
Features
-
Specifications
-
Technical Data
-
Downloads
- Diffused Illumination – Soft, uniform, glare-free light
- Easy installation - Tool-free spring-clip installation.
- Long Life: 50,000+ hrs– Minimal maintenance.
- Consistent Performance & Quality - Delivers stable brightness.
- High Luminous Efficacy -More light output.
| Housing | Aluminium Die cast Body Body With PC Diffuser | |
| Body Colour | White/Black | |
| Light Source | Bridgelux | |
| Dimming | ON-OFF, 0.-10V,DALI | |
| Rated Luminous Efficacy | 100 lm/W | |
| LED Life Time | >50,000 hours | |
| Input Voltage | 100-240 VAC | |
| Input Frequency | 50-60 Hz | |
| Efficiency | >90% | |
| IP Rating | IP20 | |
| IK Rating | IK02 |
| Model No. | Power (W) | Lumens | CCT | CRI | Beam Angle | Dimensions (mm) | |||
| MNR-RD-03 | 3 | 300 | 3000K/4000K/6500K | >80 | 110.3° | D:70,H:32,C:50 mm | |||
| MNR-RD-07 | 7 | 700 | 3000K/4000K/6500K | >80 | 110.3° | D:98,H:29,C:70 mm | |||
| MNR-RD-09 | 9 | 900 | 3000K/4000K/6500K | >80 | 109.2° | D:110,H:29,C:80 mm | |||
| MNR-RD-12 | 12 | 1200 | 3000K/4000K/6500K | >80 | 110.9° | D:120,H:29,C:90 mm | |||
| MNR-RD-15 | 15 | 1500 | 3000K/4000K/6500K | >80 | 108.4° | D:145,H:29,C:110 mm | |||
| MNR-RD-18 | 18 | 1800 | 3000K/4000K/6500K | >80 | 111.6° | D:170,H:29,C:135 mm | |||
| MNR-RD-24 | 24 | 2400 | 3000K/4000K/6500K | >80 | 111.2° | D:180,H:29,C:145 mm | |||
| MNR-RD-36 | 36 | 3600 | 3000K/4000K/6500K | >80 | 111.2° | D:230,H:29,C:190 mm |
*D=Diameter; H=Height
