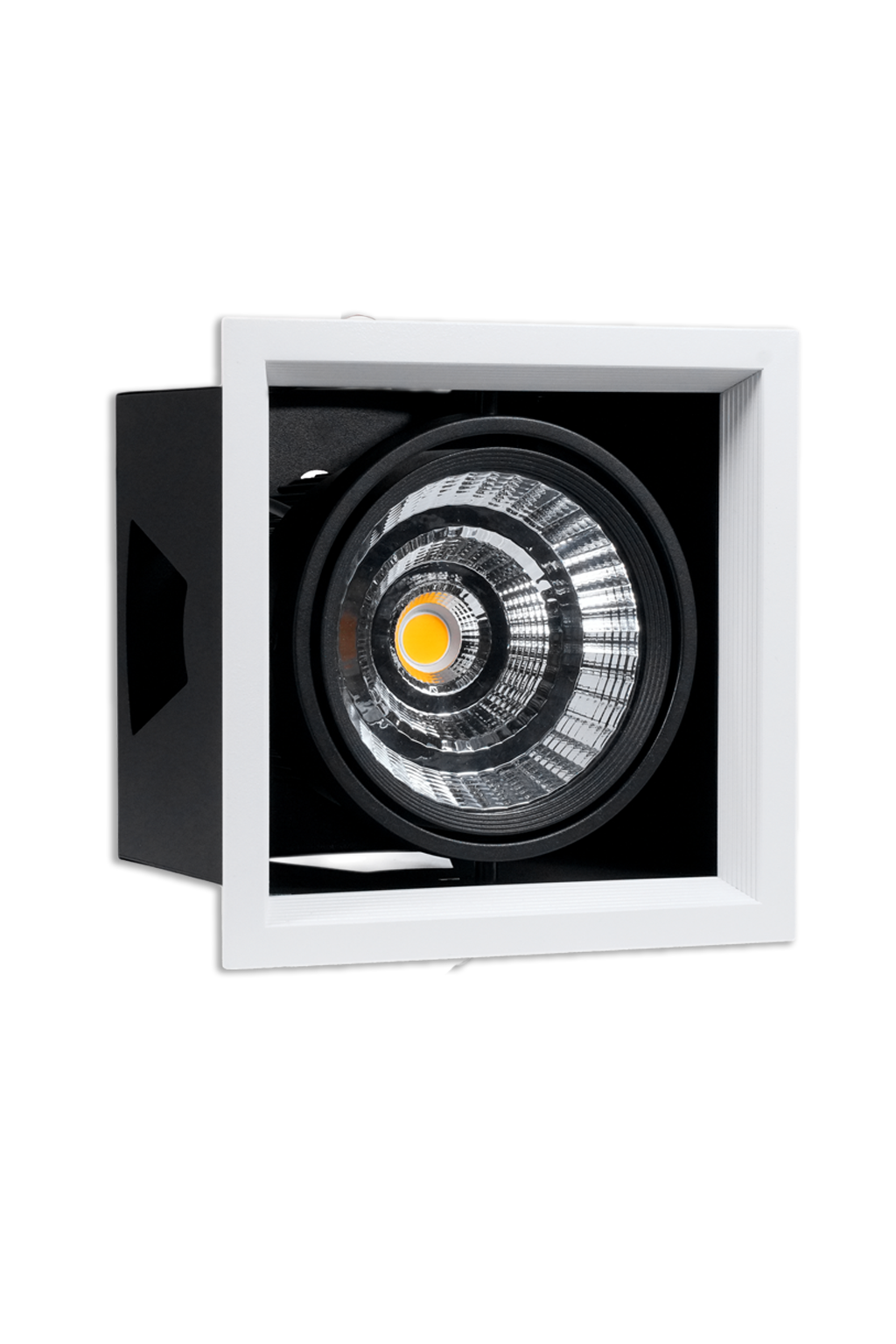

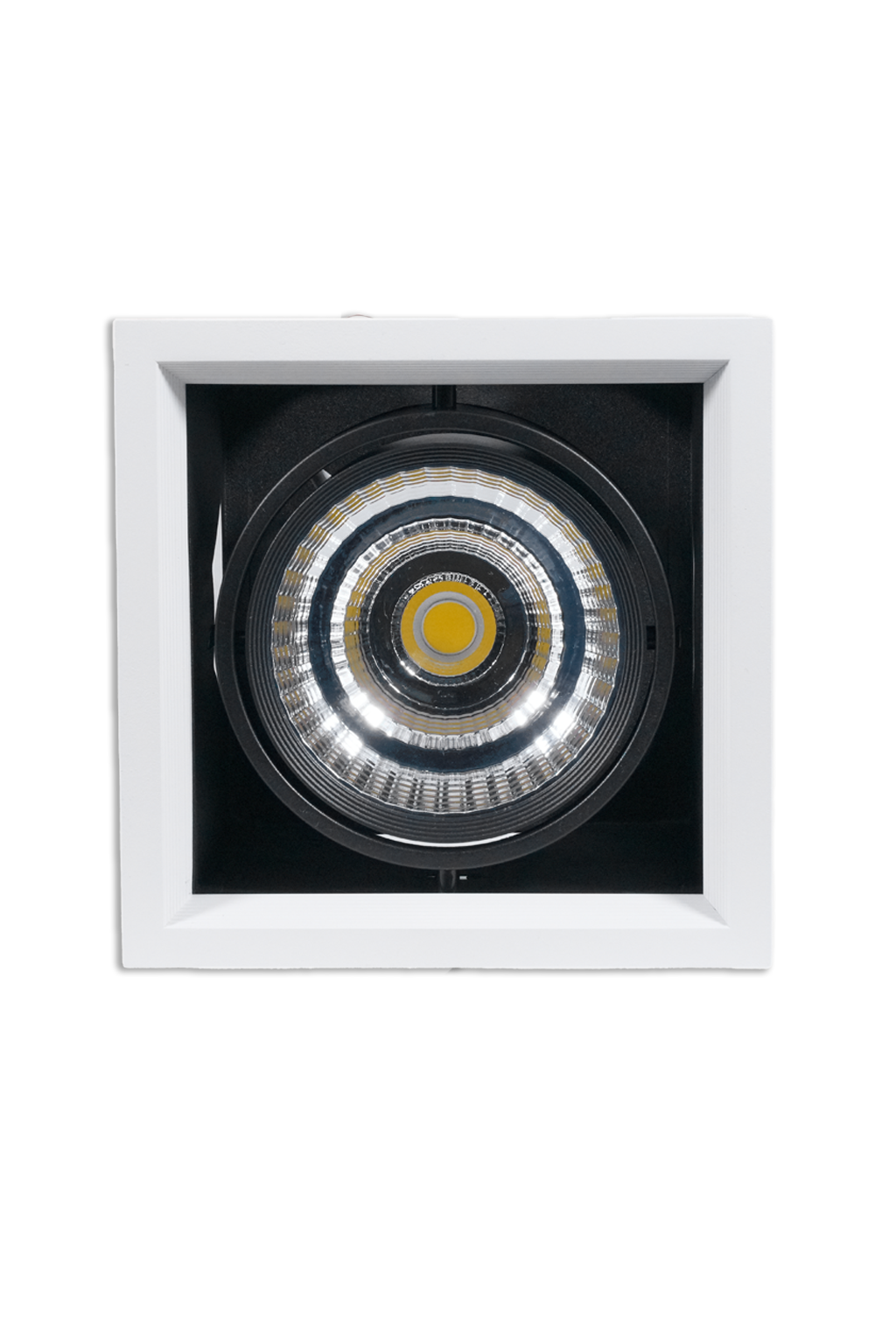

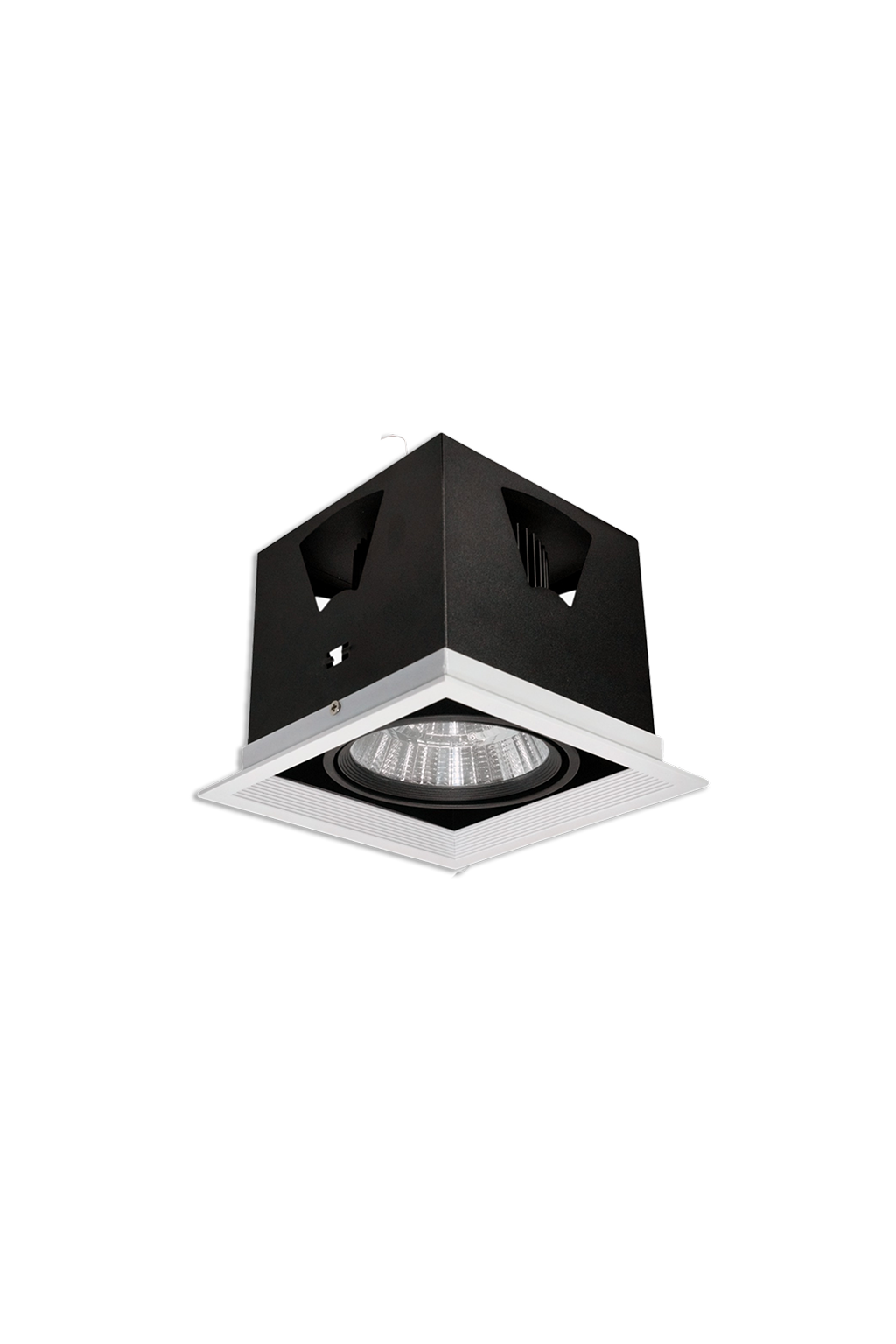

NEGOZIO BGX1
12W, 15W, 20W, 30W, 40W
LED Recessed Box Gimbal Lights with Single Adjustable head for retail lighting and accent lighting applications.
| Colour | 3000K, 4000K, 6500K |
|---|---|
| Wattage | 12W, 15W, 20W, 30W, 40W |
Suitable for :
- Retail
- Shops
- Indoor stadiums
-
Features
-
Specifications
-
Technical Data
-
Downloads
- 360° Adjustable Gimbal – Direct light precisely in any direction.
- Low Glare - Low glare via optimized optics.
- Long Life: 50,000+ hrs - Minimal maintenance.
- High Luminous Efficacy - More light output.
- Consistent Performance & Quality - Delivers stable brightness.
| Housing | Aluminium Diecast Body With Glass Diffuser | |
| Body Colour | White | |
| Light Source | Bridgelux | |
| Control Gear | ON-OFF, TRIAC, 0-10V, DALI | |
| Rated Luminous Efficacy | 80-100 lm/W | |
| LED Life Time | >50,000 hours | |
| Input Voltage | 220-240 VAC | |
| Input Frequency | 50-60 Hz | |
| Efficiency | >90% | |
| IP Rating | IP20 | |
| IK Rating | IK02 |
| Model No. | Power (W) | Lumens | CCT | CRI | Beam Angle | Dimensions (MM) | |||
| BG1-12 | 12 | 1200 | 3000/4000/6500 | >80 | 59.2° | L/D:145, W:145, H:143, Cutout:110X110 mm | |||
| BG1-15 | 15 | 1500 | 3000/4000/6500 | >80 | 58.3° | L/D:145, W:145, H:143, Cutout:110X110 mm | |||
| BG1-20 | 20 | 2000 | 3000/4000/6500 | >80 | 24.1° | L/D:145, W:145, H:143, Cutout:110X110 mm | |||
| BG1-30 | 30 | 3000 | 3000/4000/6500 | >80 | 58.1° | L/D:185, W:185, H:143, Cutout:155X155 mm | |||
| BG1-40 | 40 | 4000 | 3000/4000/6500 | >80 | 18.5° | L/D:185, W:185, H:143, Cutout:155X155 mm |
*L= Length ,W= Width, H= Height, C= Cut-out
