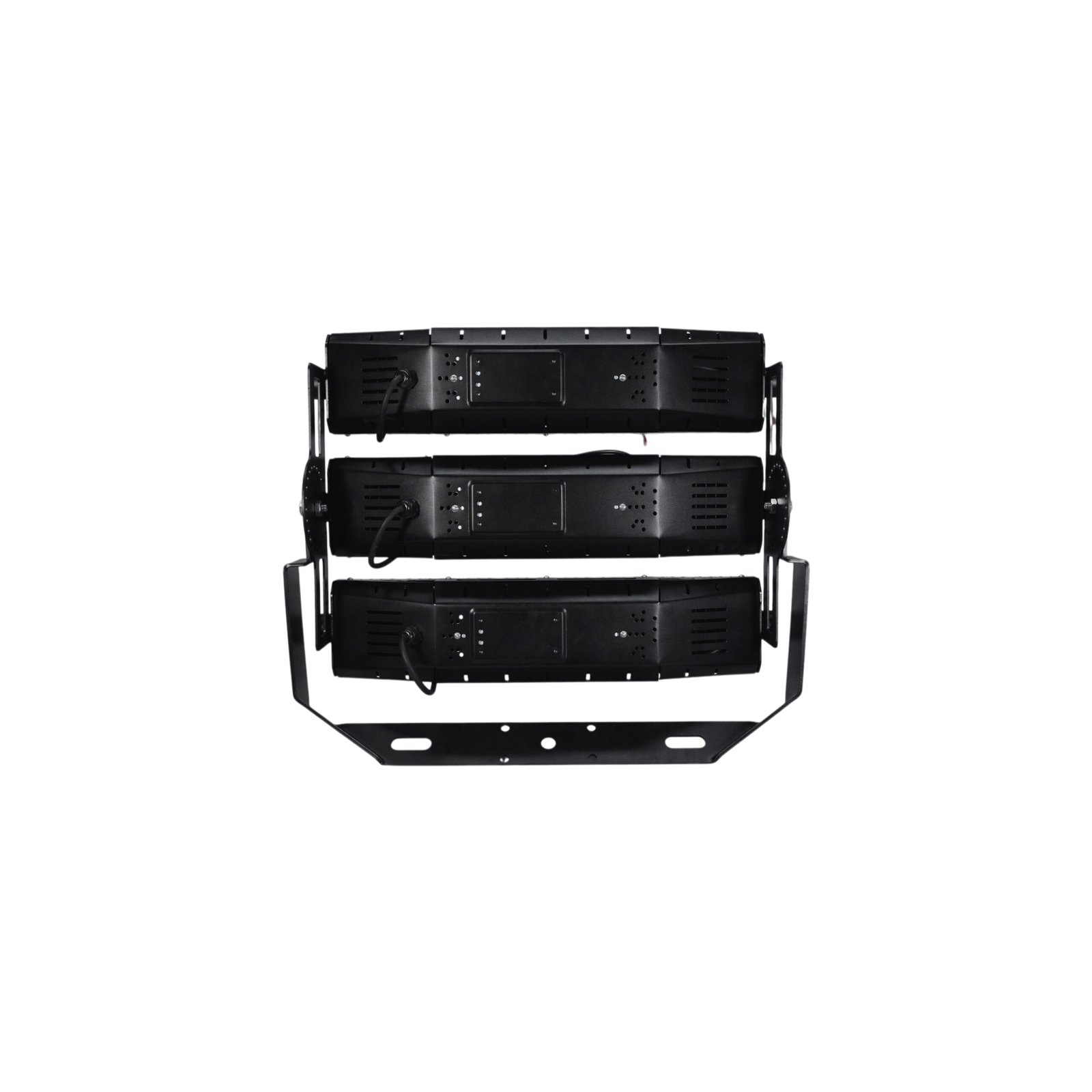

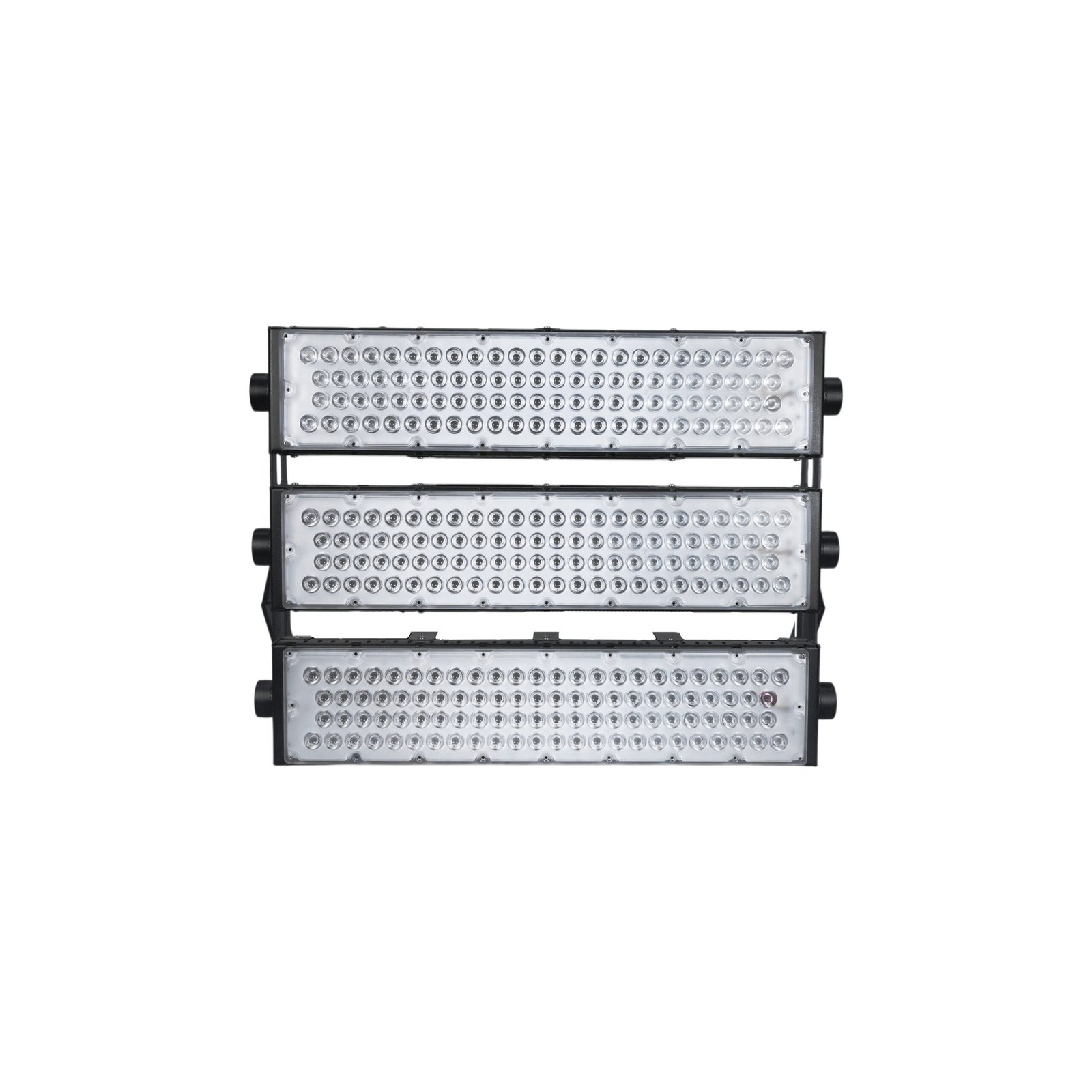

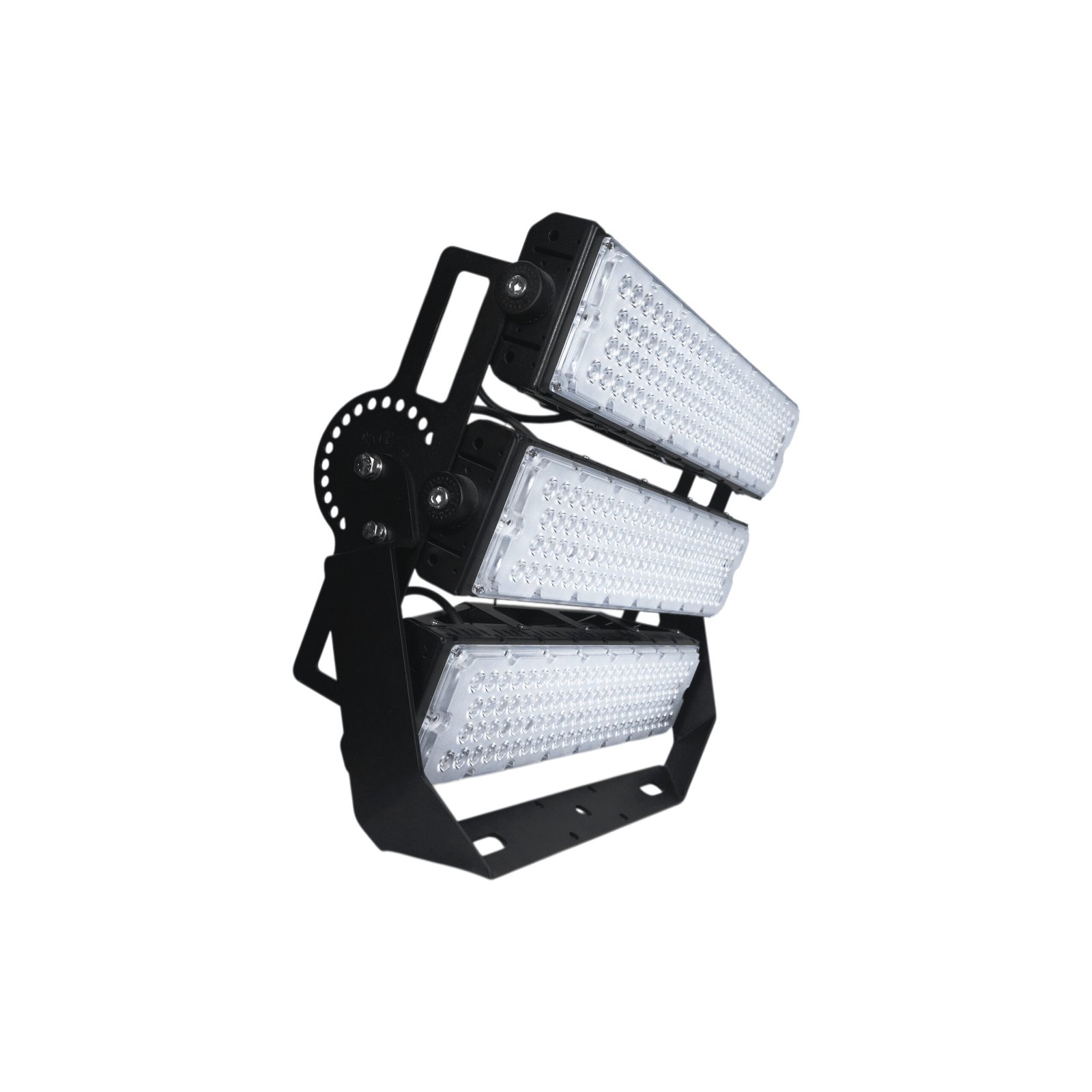

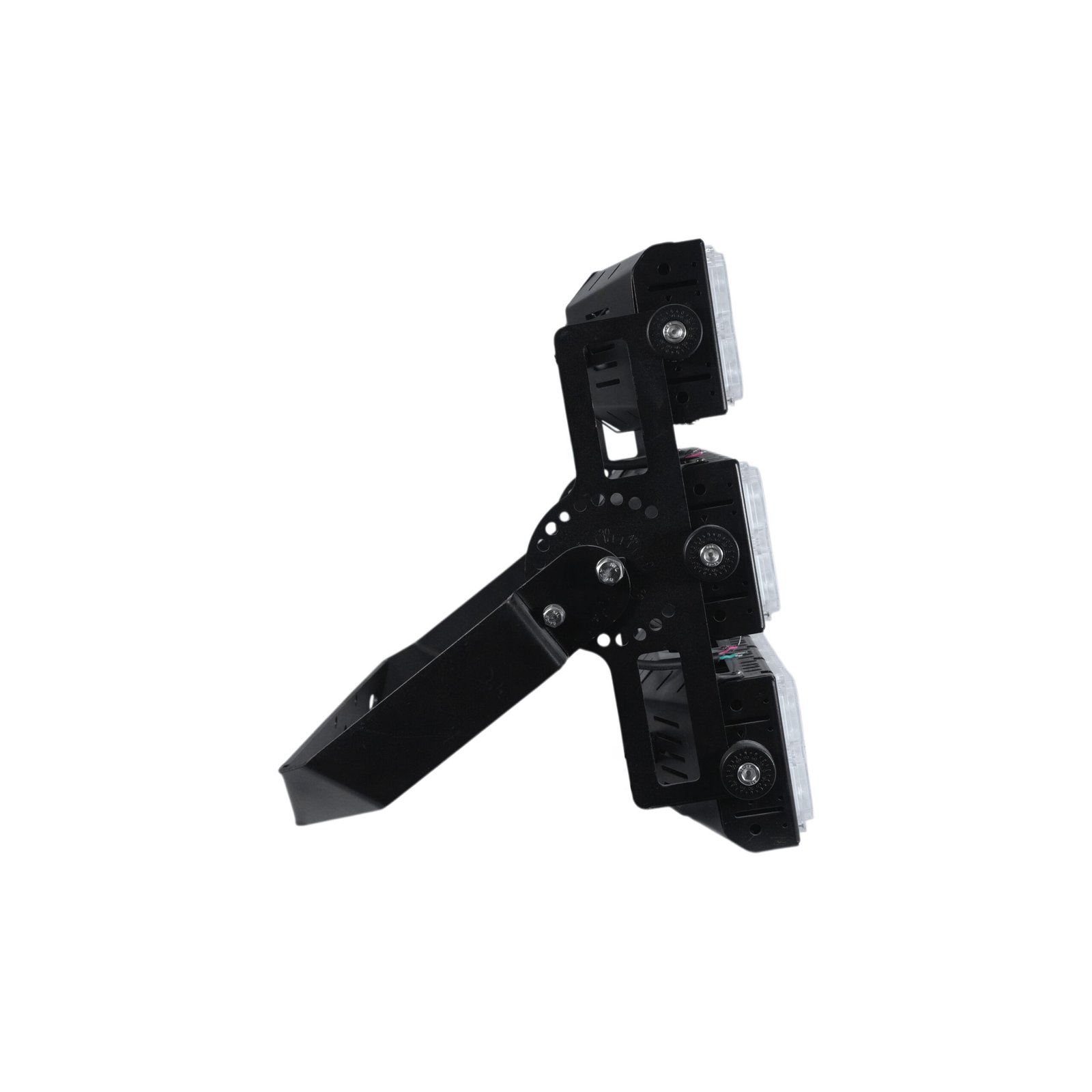

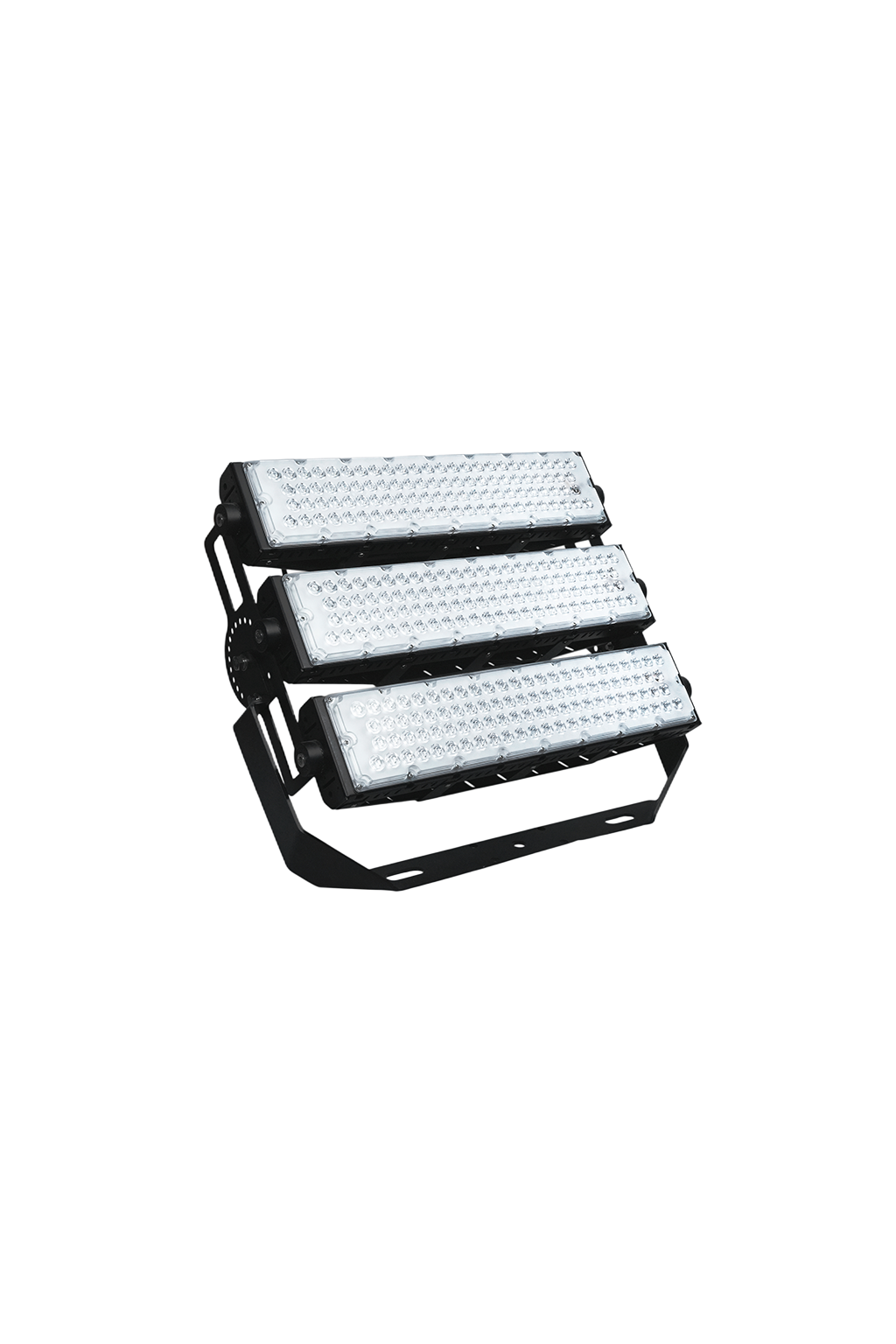

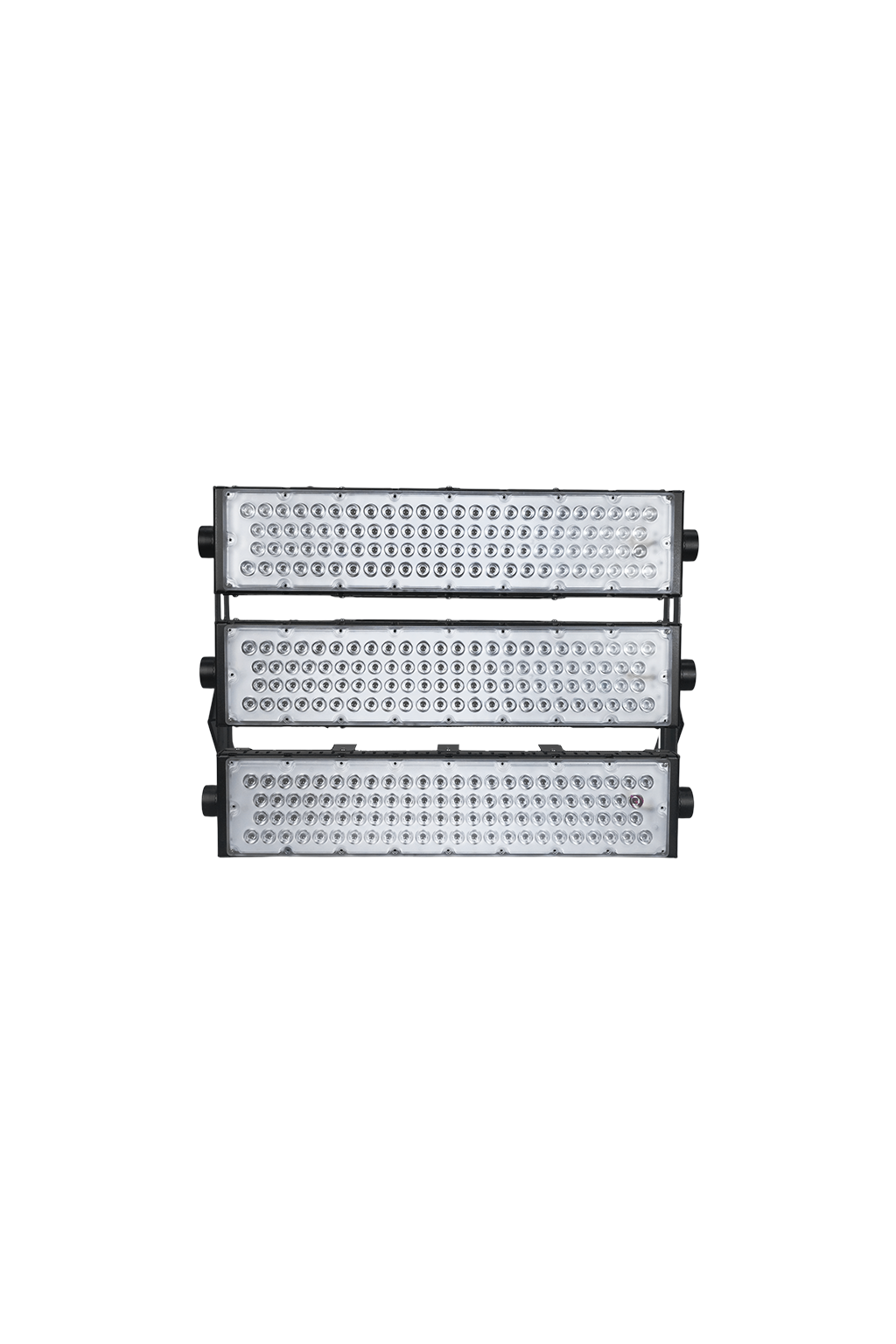

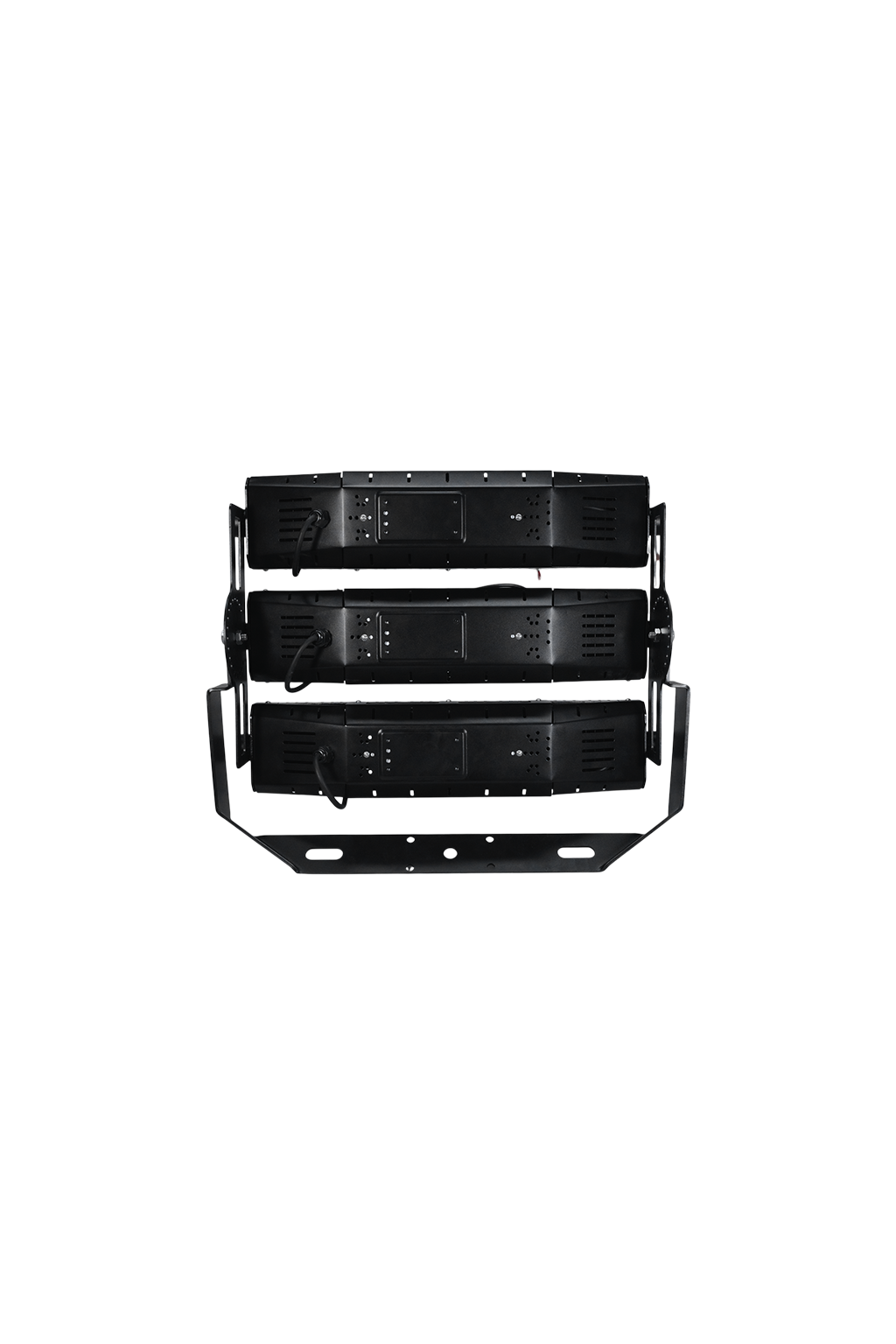

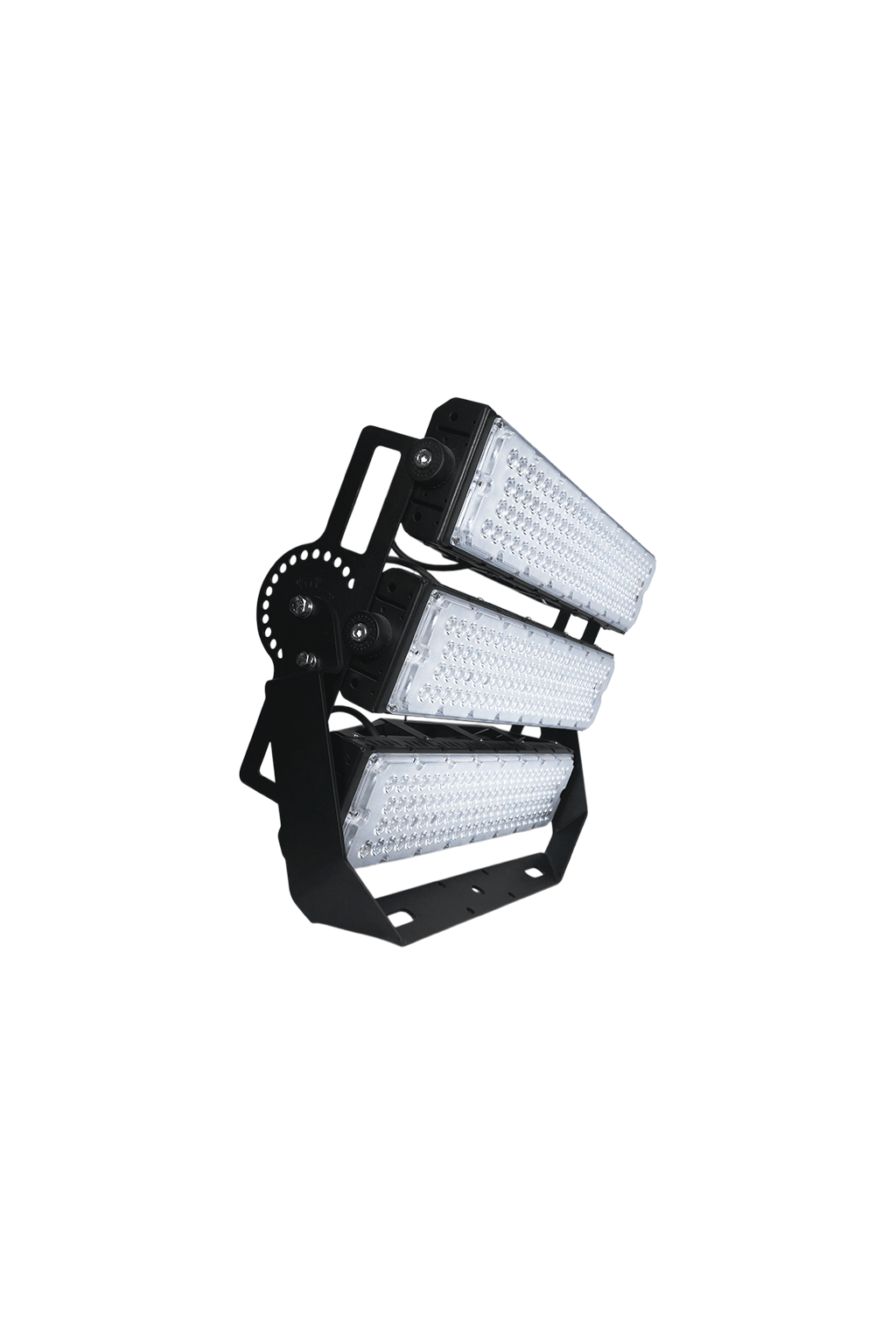

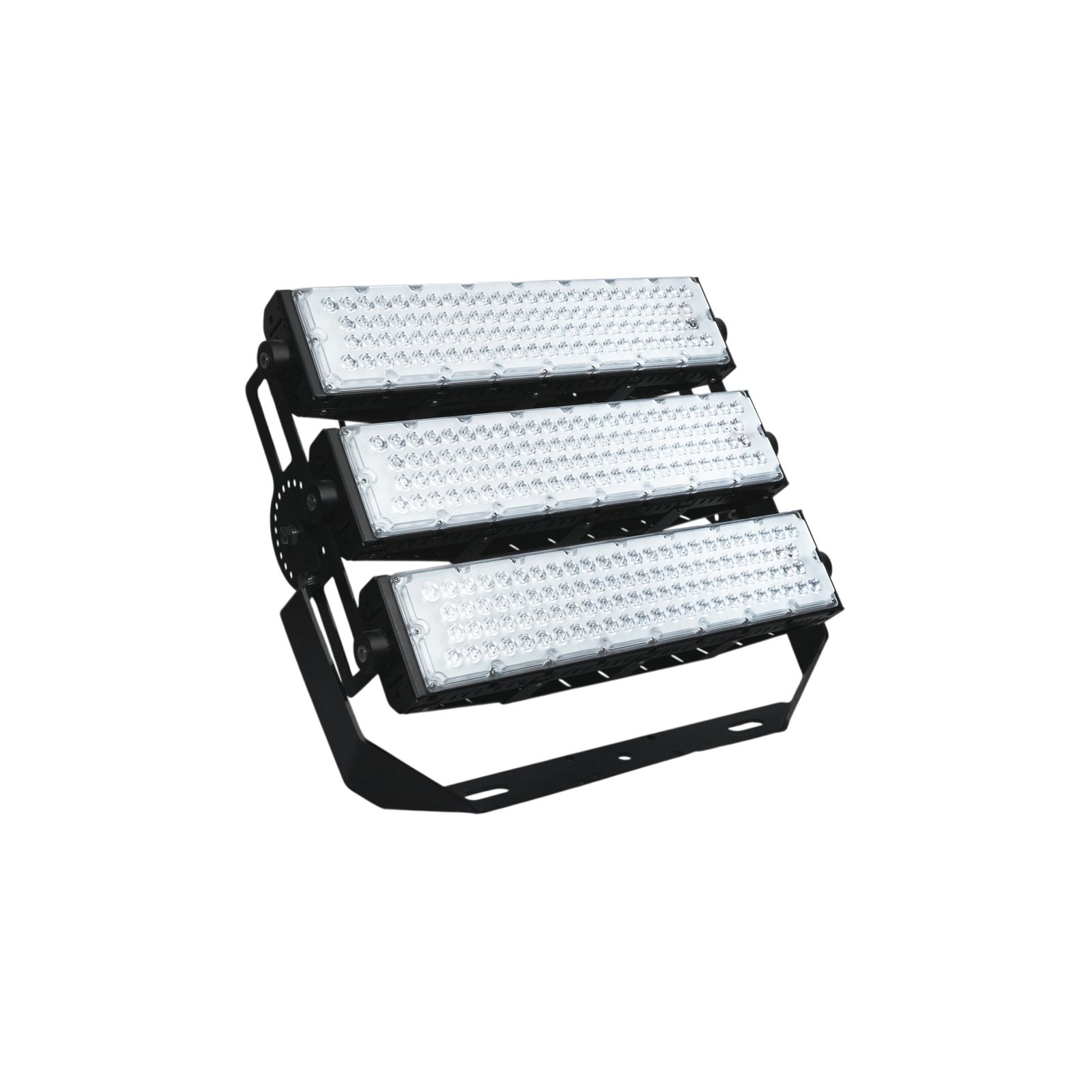

Pacific LX
250W, 500W, 750W, 1000W, 1250W, 1500W
“A versatile IP66 flood light designed for outdoor applications that demand high levels of illumination and robust performance. These luminaires are easy to mount and provide an extensive selection of power and CCT. Customizable
to include features like timer and auto sleep.”
| Colour | 3000K, 4000K, 6500K |
|---|---|
| Wattage | 250W, 500W, 1000W, 1250W, 1500W, 750W |
Suitable for :
- Hotel
- Restaurant
- Shops
- Courtyards
- Indoor stadiums
- Outdoor stadiums
- Industrial premises
- Private Pathways
- Stadiums
-
Features
-
Specifications
-
Technical Data
-
Downloads
- High Luminous efficacy - More light output
- Efficient Heat Dissipation – Die-cast aluminum housing
- Long life: 100,000+ hrs - Minimal maintenance
- Adjustable Bracket – Easy installation & aiming
- Consistent Performance & Quality - Delivers stable brightness
| Housing | Aluminium Die cast Body Body With PC Lens | |
| Body Colour | Black | |
| Light Source | Bridgelux | |
| Dimming | ON-OFF, 0.-10V,DALI | |
| Rated Luminous Efficacy | 140 lm/W | |
| LED Life Time | >100,000 hours | |
| Input Voltage | 100-240 VAC | |
| Input Frequency | 50-60 Hz | |
| Efficiency | >90% | |
| IP Rating | IP66 | |
| IK Rating | IK10 |
| Model No. | Power (W) | Lumens | CCT | CRI | Beam Angle | Dimensions (mm) | |||
| PLX-FLD-250 | 250 | 32,500 | 3000K/4000K/6500K | >80 | 34.4° | L/D:121,W:595,H:167 mm | |||
| PLX-FLD-500 | 500 | 65,000 | 3000K/4000K/6500K | >80 | 34.6° | L/D:286,W:595,H:400 mm | |||
| PLX-FLD-750 | 750 | 97,500 | 3000K/4000K/6500K | >80 | 35.7° | L/D:435,W:595,H:370 mm | |||
| PLX-FLD-1000 | 1000 | 130,000 | 3000K/4000K/6500K | >80 | 35.7° | L/D:595,W:595,H:370 mm | |||
| PLX-FLD-1250 | 1250 | 162,500 | 3000K/4000K/6500K | >80 | 35.7° | L/D:747,W:595,H:370 mm | |||
| PLX-FLD-1500 | 1500 | 195,000 | 3000K/4000K/6500K | >80 | 35.7° | L/D:900,W:595,H:376 mm |
*D=Diameter; H=Height
