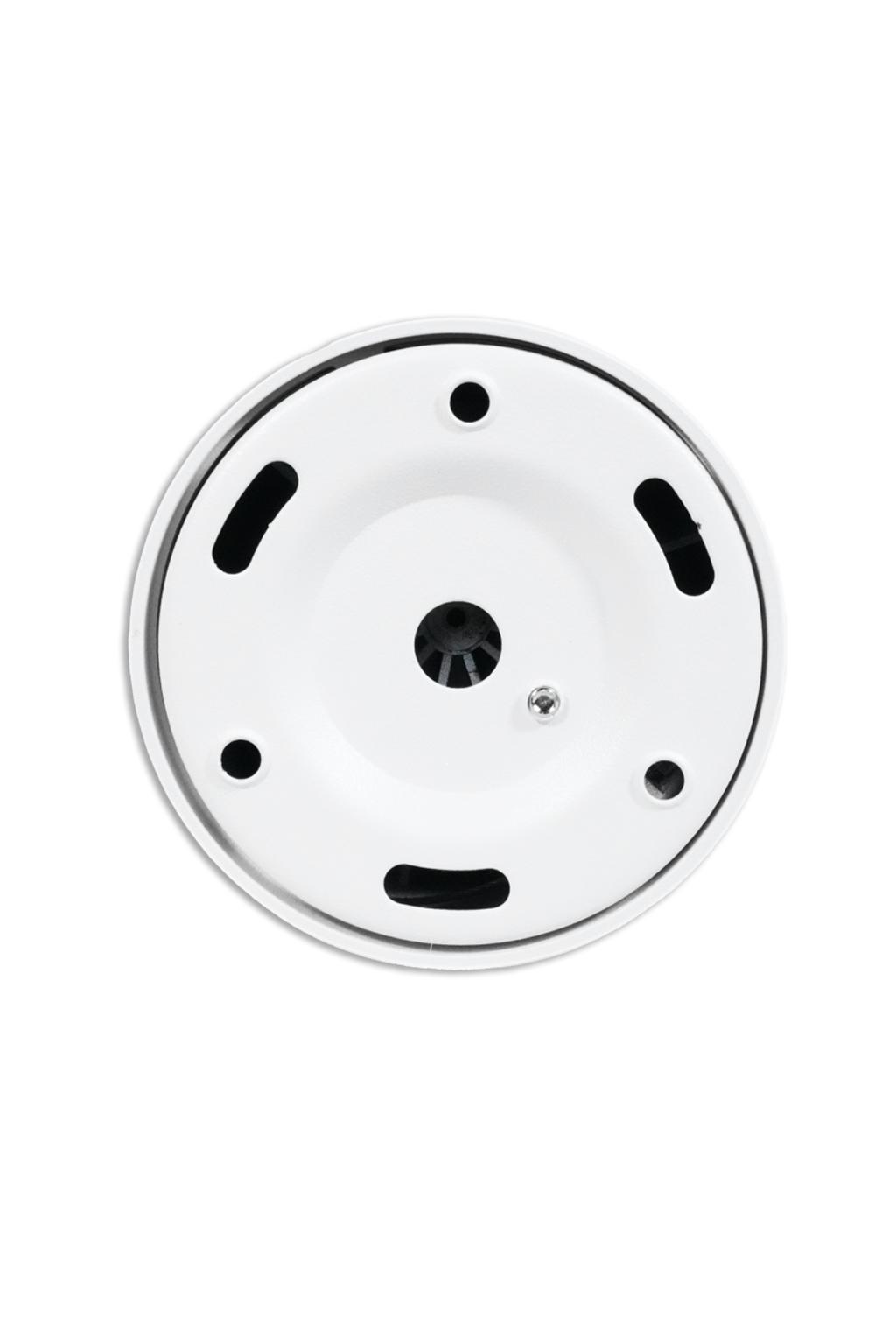

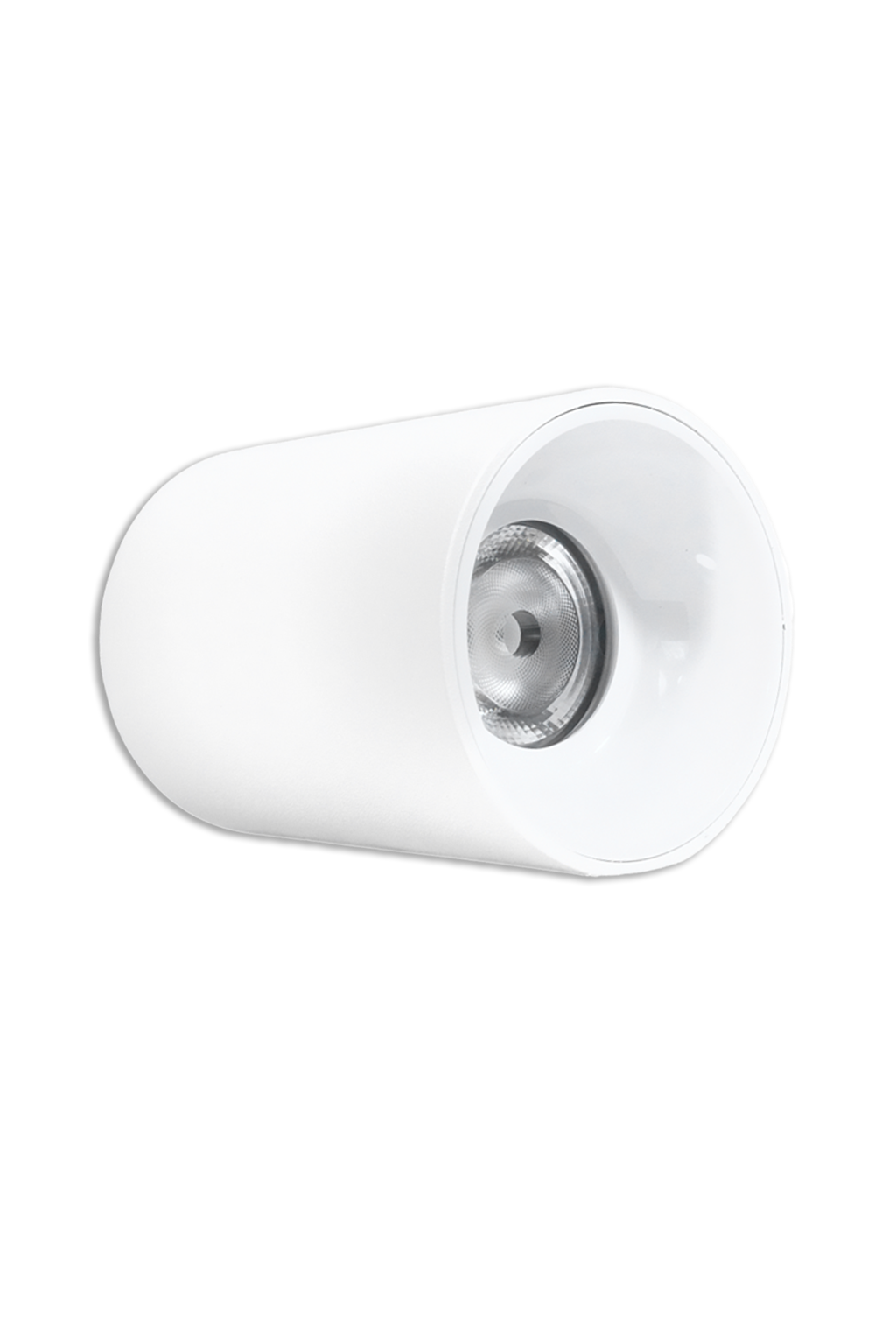

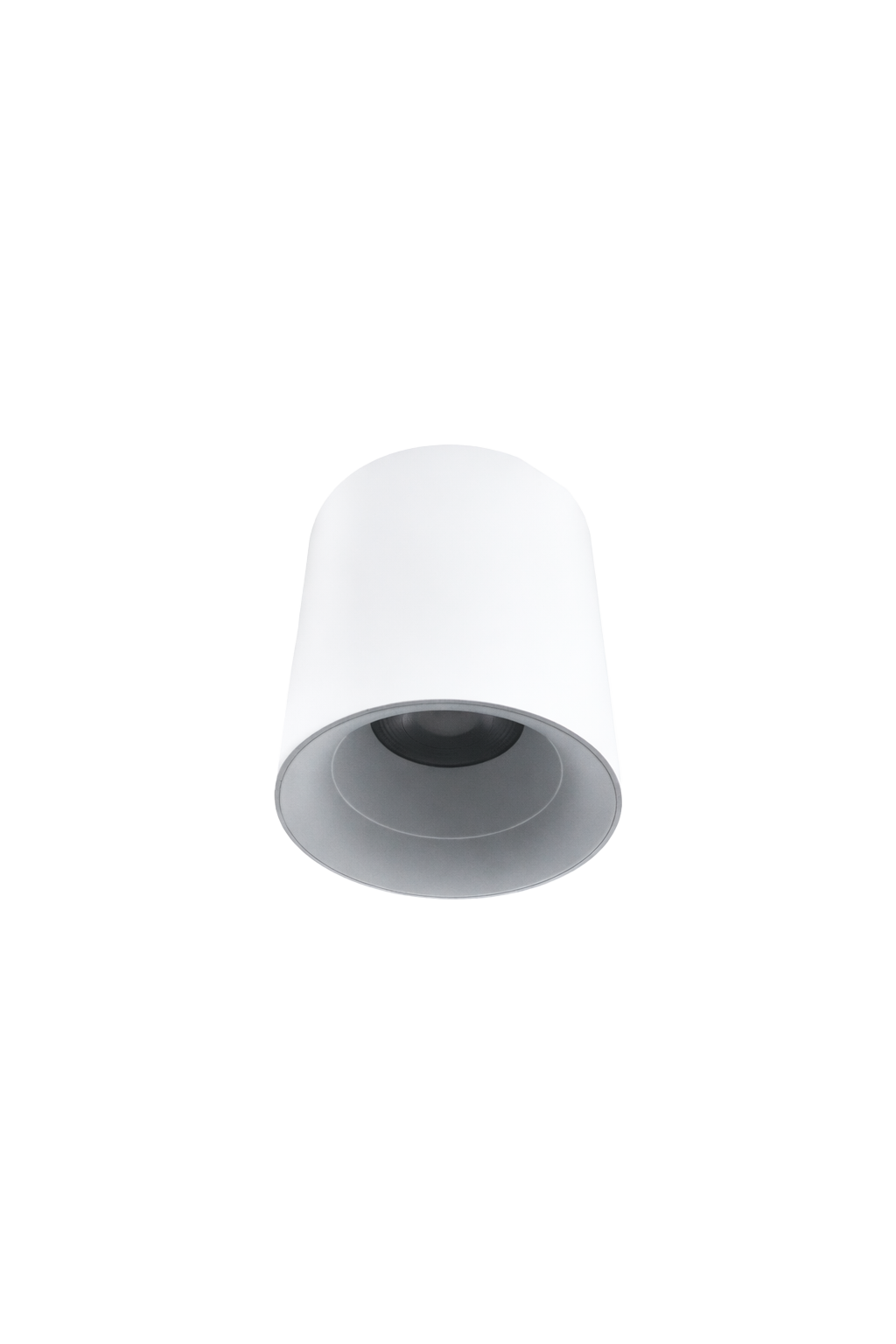

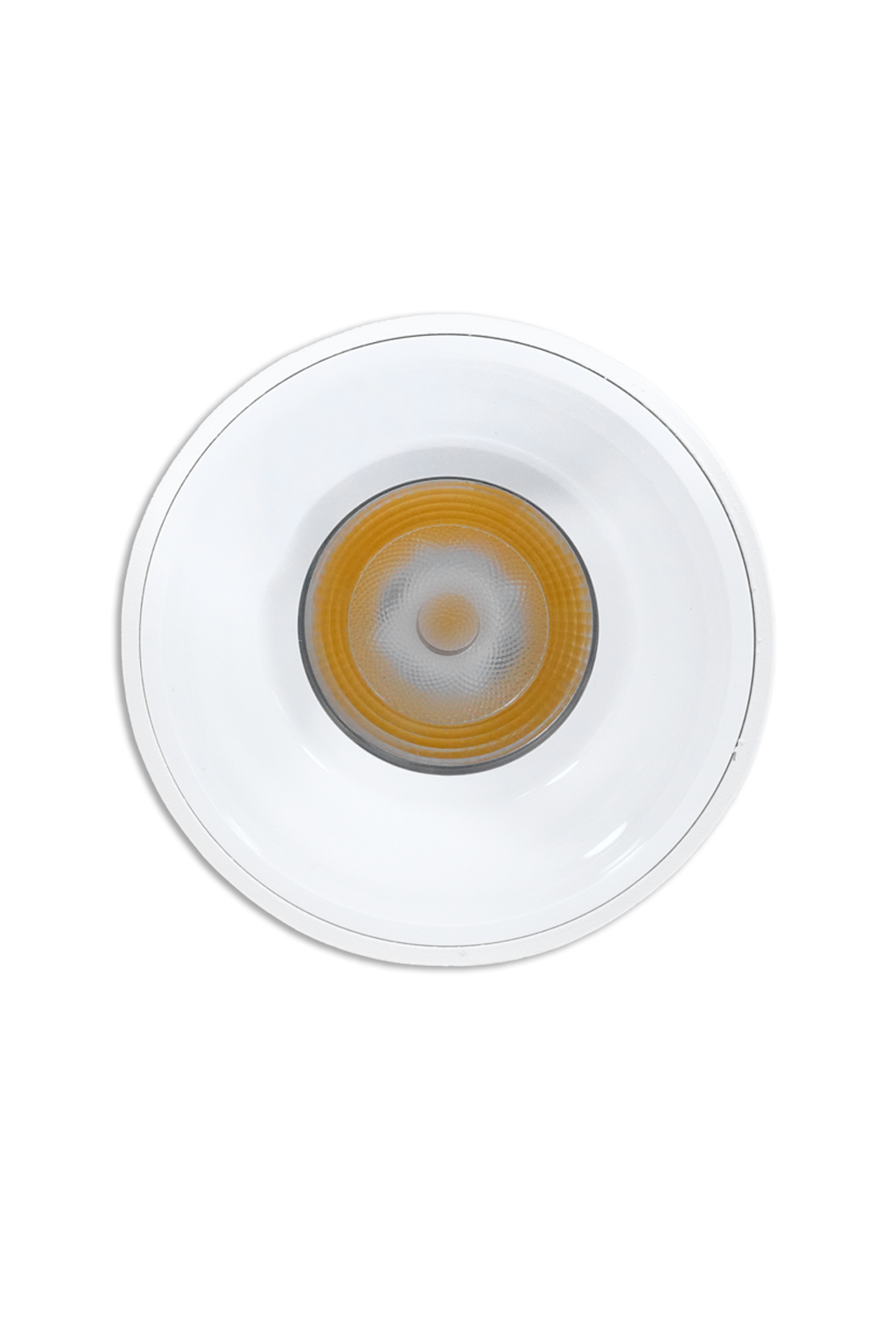

Rookie Aqua II
20W, 30W, 40W, 50W
Rookie Aqua II is an easy-to-install, high-performance surface mounting fixture, which comes in a design that makes it suitable for a variety of applications. Available in Black and White color variants. This fixture comes in a wide range of CCT and power to meet your very specific requirements.
| Colour | 3000K, 4000K, 6500K |
|---|---|
| Wattage | 20W, 30W, 40W, 50W |
Suitable for :
- Home
- Corridor
- Hospital
- Hotel
- Restaurant
- Offices
- Rest Rooms
-
Features
-
Specifications
-
Technical Data
-
Downloads
- Flexible Mounting – Surface or pendant installation options.
- IP65-rated – Protects against dust and water.
- Long Life: 50,000+ hrs – Minimal maintenance.
- High Luminous Efficacy – More light output.
- Glare-Controlled Optics – Comfortable, uniform light.
| Housing | Aluminium Die cast Body Body With Pc Lens | |
| Body Colour | Black/White | |
| Light Source | Bridgelux | |
| Control/Dimming | ON-OFF, TRIAC, 0-10V, DALI | |
| Rated Luminous Efficacy | 100-120 lm/W | |
| LED Life Time | >50,000 hours | |
| Input Voltage | 220-240 VAC | |
| Input Frequency | 50-60 Hz | |
| Efficiency | >90% | |
| IP Rating | IP65 | |
| IK Rating | IK02 |
| Model No. | Power (W) | Lumens | CCT | CRI | Beam Angle | Dimensions (mm) | |||
| CQ-ll-RD-20 | 20 | 2000 | 3000K/4000K/6500K | >80 | 27.7° | L/D:95, W:NA, H:100 mm | |||
| CQ-ll-RD-30 | 30 | 3000 | 3000K/4000K/6500K | >80 | 29.8° | L/D:114, W:NA, H:152 mm | |||
| CQ-ll-RD-40 | 40 | 4000 | 3000K/4000K/6500K | >80 | 28.3° | L/D:138, W:NA, H:165 mm | |||
| CQ-ll-RD-50 | 50 | 5000 | 3000K/4000K/6500K | >80 | 28.3° | L/D:170, W:NA, H:182.5 mm |
*D=Diameter; H=Height
