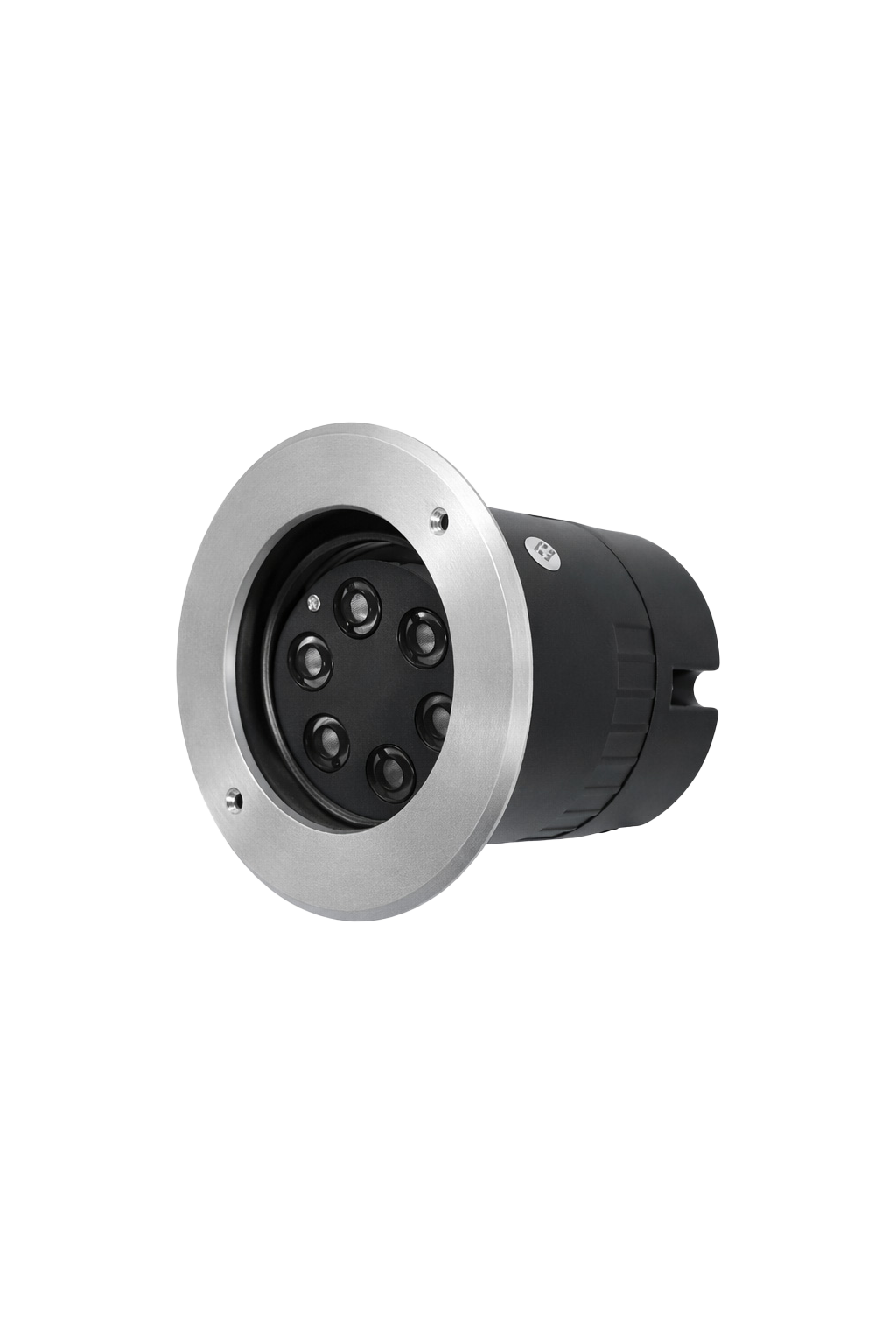

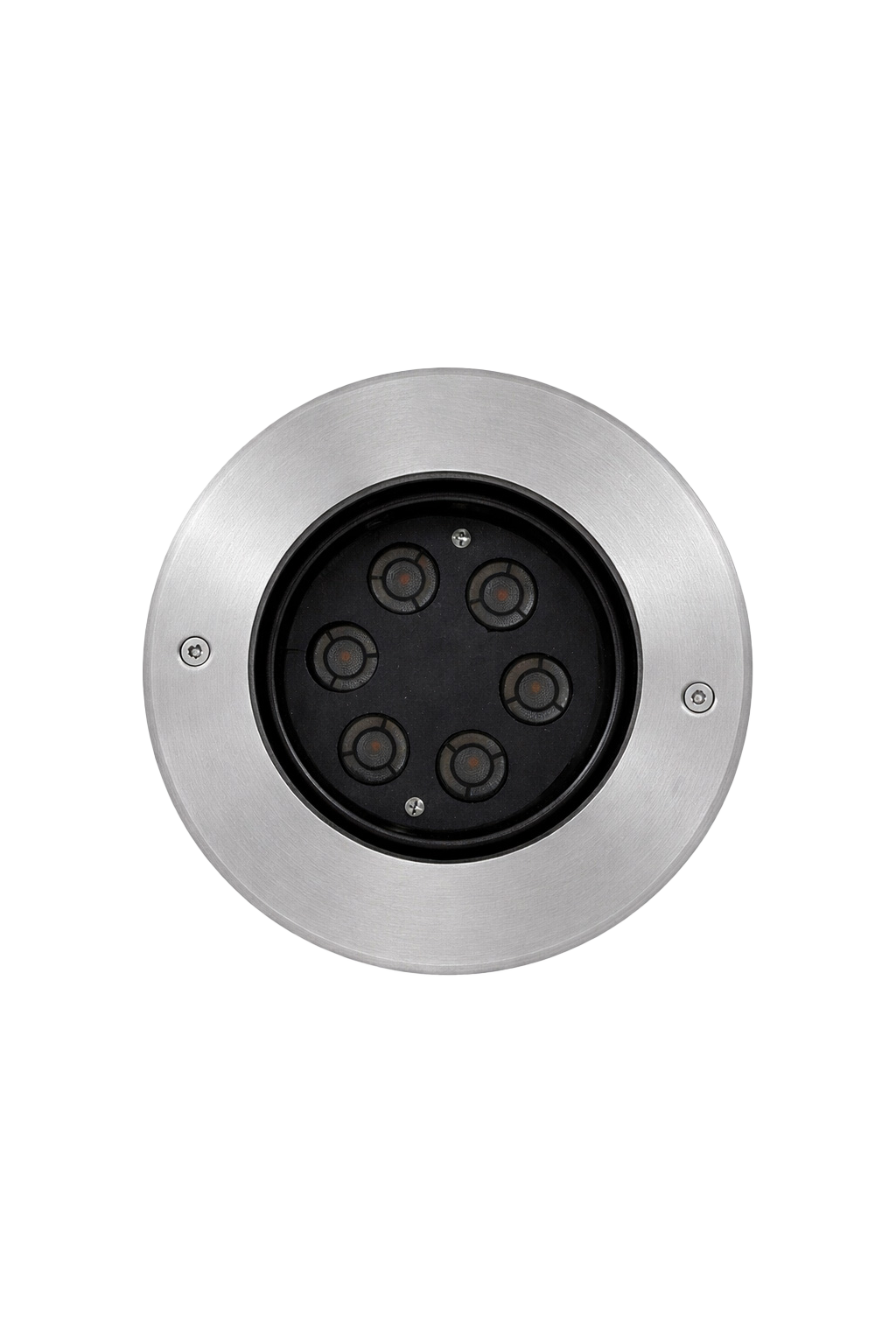

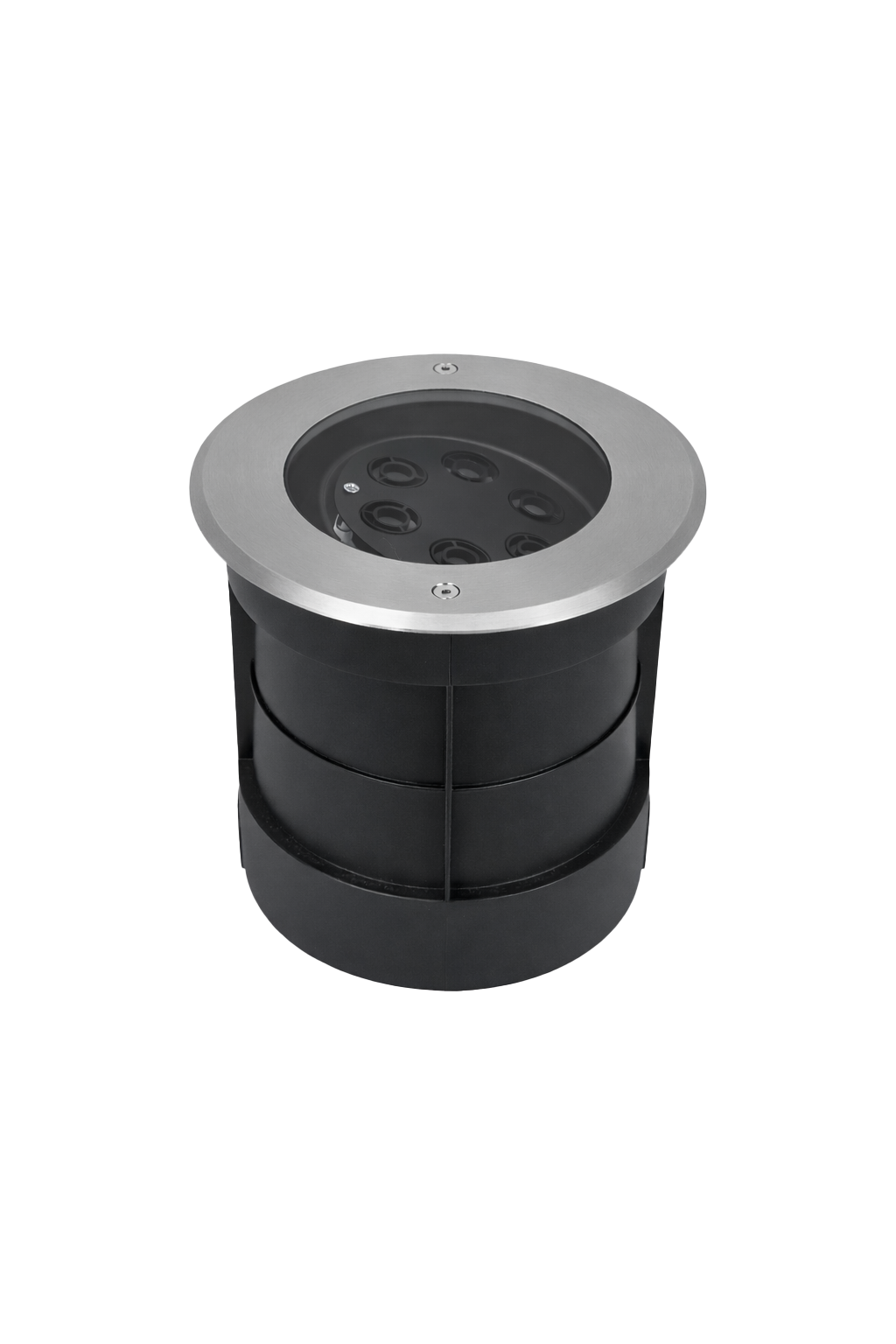

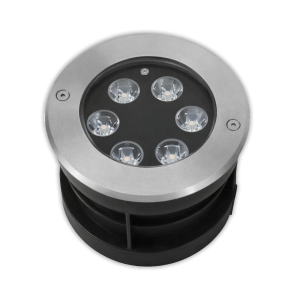

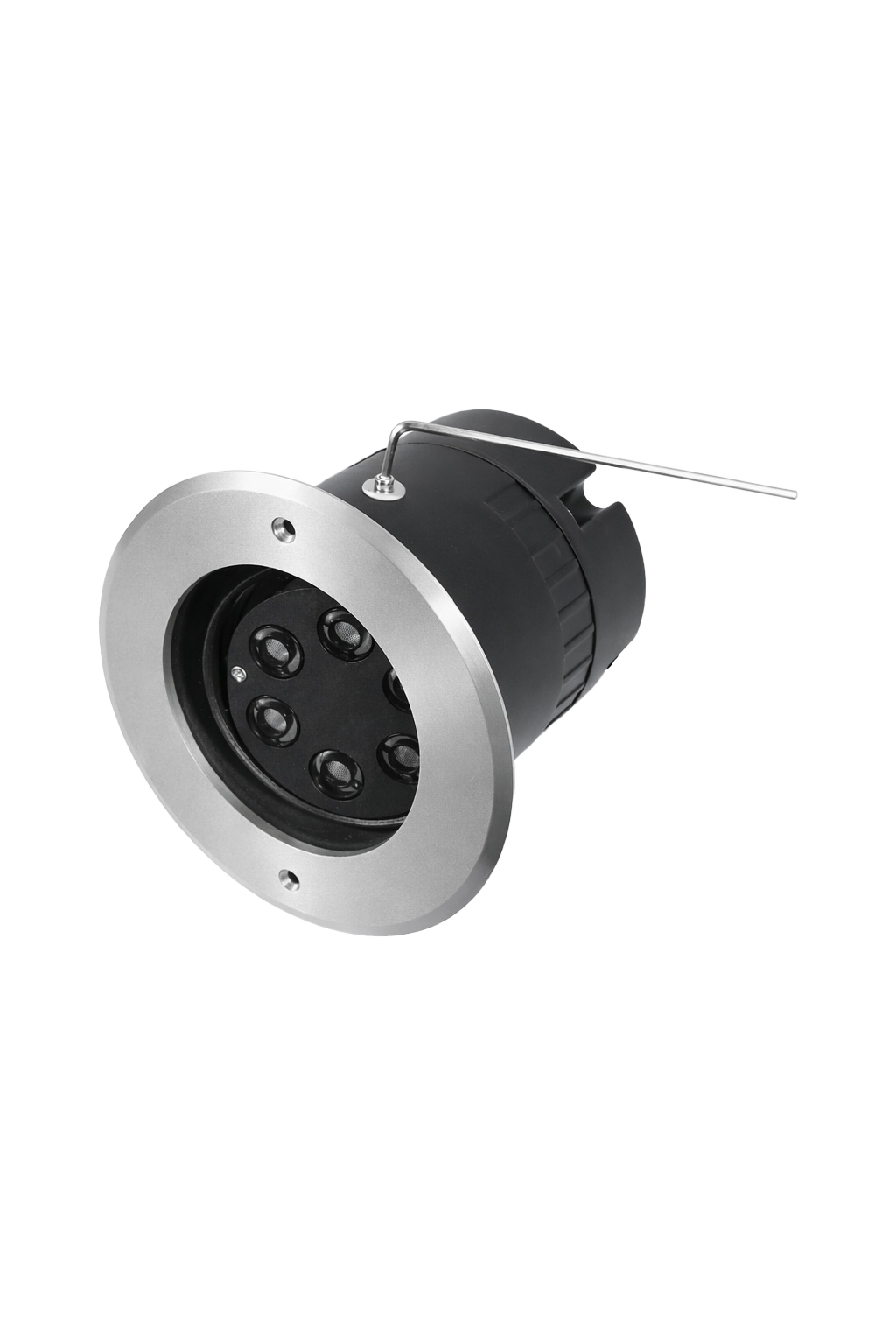

Splash Tiltable
3W, 9W, 12W, 18W
Splash Tiltable In-Ground Landscape Lights are a premium, high-performance lighting solution engineered for seamless integration and stunning illumination of your landscape, walkways, and architectural features. Designed with exceptional durability and dynamic color control, these fixtures transform any outdoor space.
| Colour | 3000K, 4000K, 6500K |
|---|---|
| Wattage | 03W, 09W, 12W, 18W |
Suitable for :
- Hospital
- Hotel
- Offices
- Retail
- Ring roads
- Banks
- Facade Lighting
- Parking Areas
- Private Pathways
- Reception Areas
-
Features
-
Specifications
-
Technical Data
-
Downloads
- High Luminous efficacy - More light output
- Long Life: 50,000+ hrs – Minimal maintenance
- Drive-Over Rated – Safe for vehicle and foot traffic
- Consistent Performance & Quality - Delivers stable brightness
- SS 316 Trim – corrosion-resistant and durable.
| Housing | Aluminium Die cast Body Body With Toughened Glass | |
| Body Colour | Black | |
| Light Source | Bridgelux | |
| Dimming | ON-OFF, TRIAC, 0.-10V, DALI | |
| Rated Luminous Efficacy | 100 lm/W | |
| LED Life Time | >50,000 hours | |
| Input Voltage | 220-240 VAC | |
| Input Frequency | 50-60 Hz | |
| Efficiency | >90% | |
| IP Rating | IP67 | |
| IK Rating | IK10 |
| Model No. | Power (W) | Lumens | CCT | CRI | Beam Angle | Dimensions (mm) | |||
| BLX-03-RD | 3 | 300 | 3000/4000/6500 | >80 | 31.6° | L/D:120,W:NA,H:139 mm | |||
| BLX-09-RD | 9 | 900 | 3000/4000/6500 | >80 | 31.6° | L/D:160,W:NA,H:154 mm | |||
| BLX-12-RD | 12 | 1200 | 3000/4000/6500 | >80 | 31.6° | L/D:200,W:NA,H:175 mm | |||
| BLX-18-RD | 18 | 1800 | 3000/4000/6500 | >80 | 31.6° | L/D:260,W:NA,H:196 mm |
*D=Diameter; H=Height
