TECO
30W, 40W,50W,60W

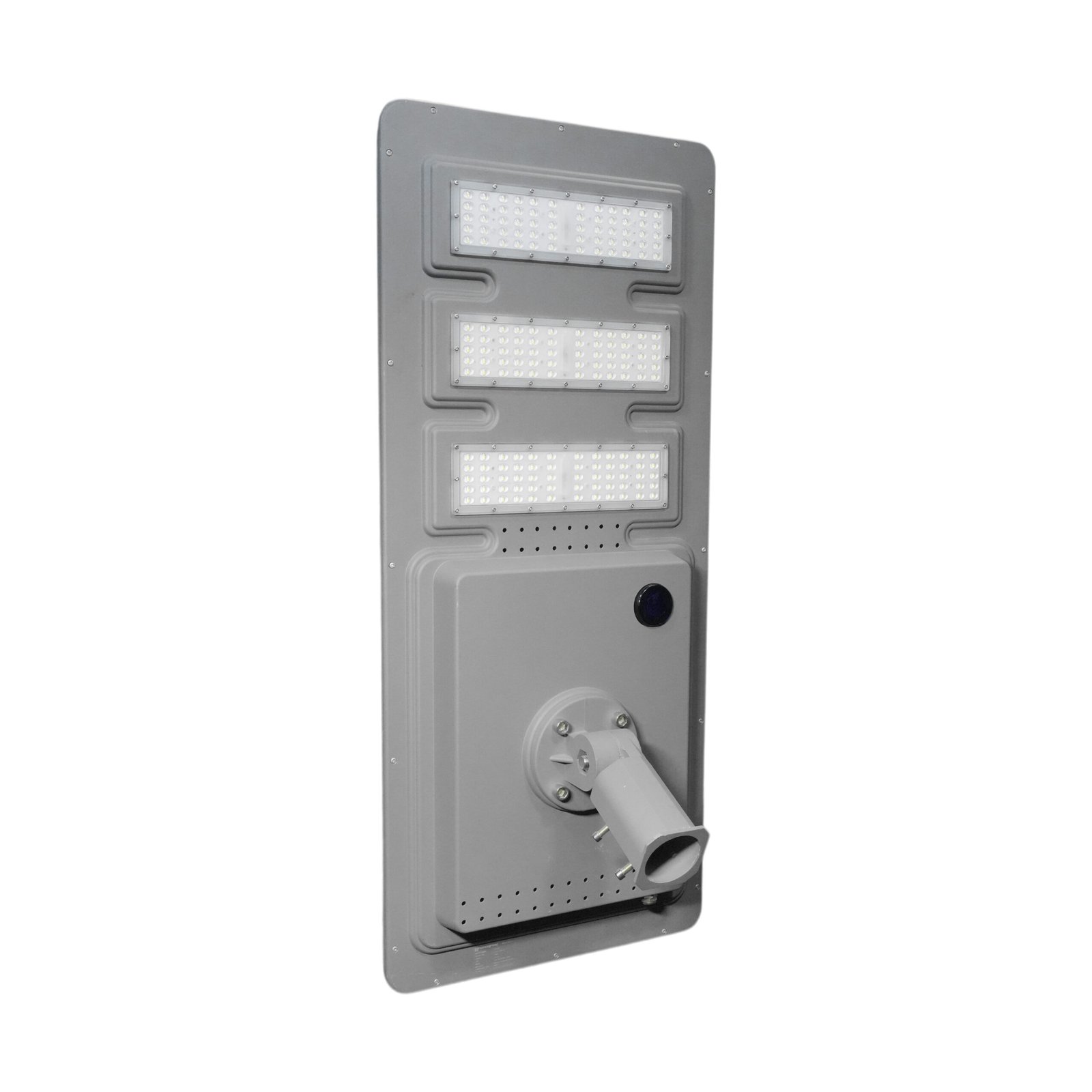

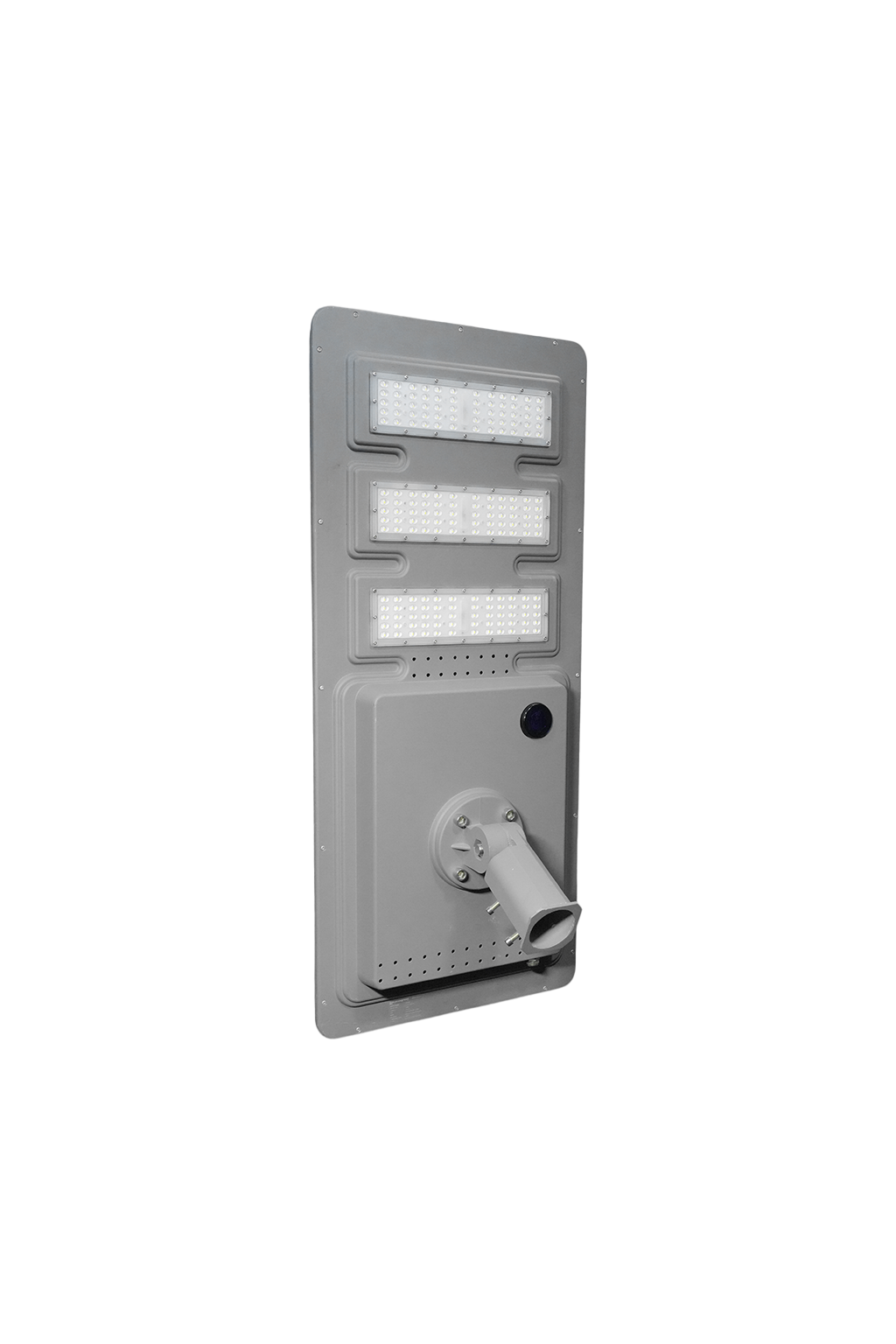

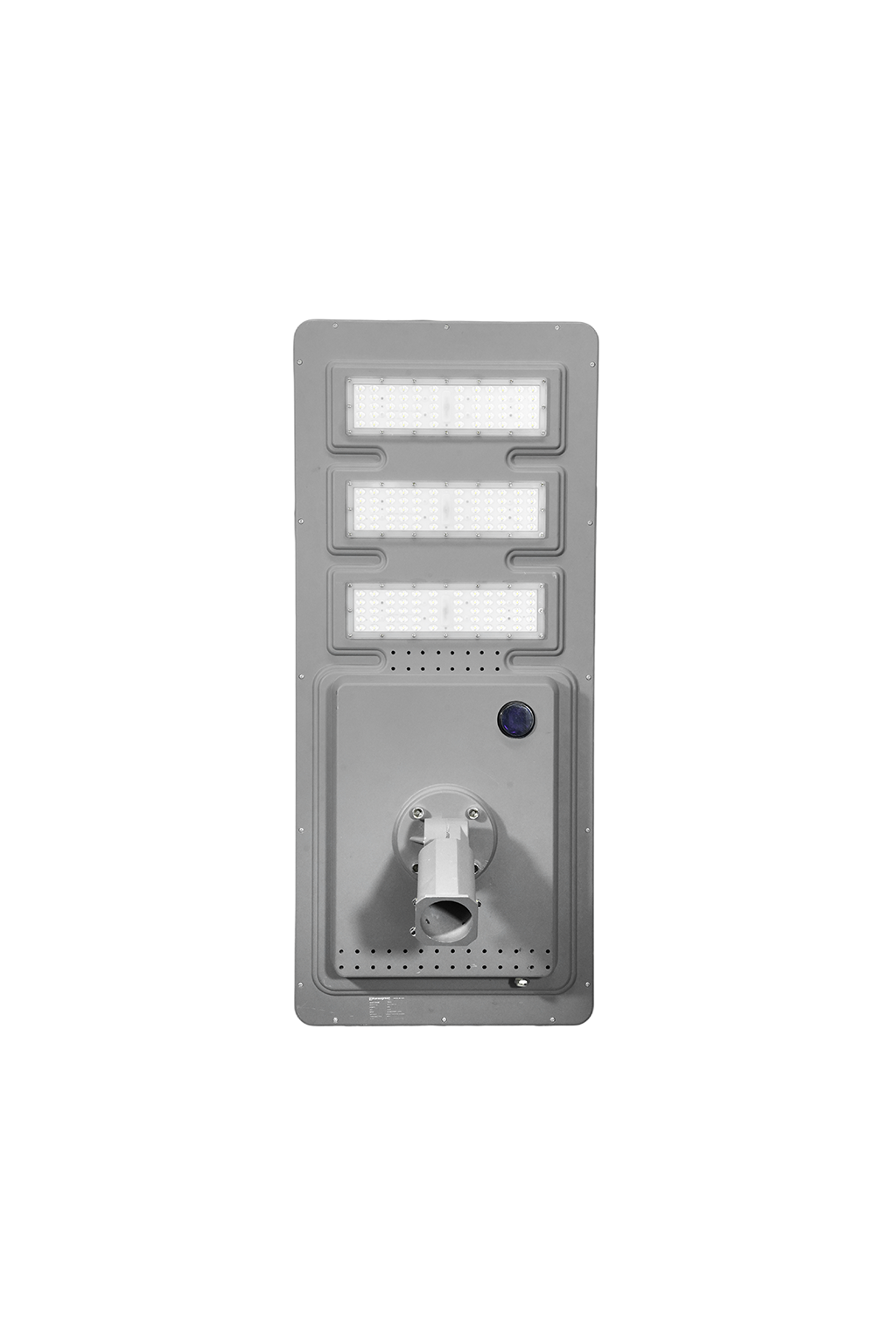

TECO is a solar streetlight series that delivers a fully autonomous, off-grid lighting solution. Its sleek All-in-One/All-in-Two design integrates a high-efficiency, long-life LiFePO₄ battery, MPPT controller, and high-lumen LED light source into one robust fixture.
| Colour | 3000K, 4500k, 6500K |
|---|---|
| Wattage | 30W, 40W, 50W, 60W |
Suitable for :
- Residential areas
- Ring roads
- Highways
- Parking Areas
- Private Pathways
-
Features
-
Specifications
-
Technical Data
-
Downloads
- Heavy-Duty Aluminum Alloy – Provides strength and durability.

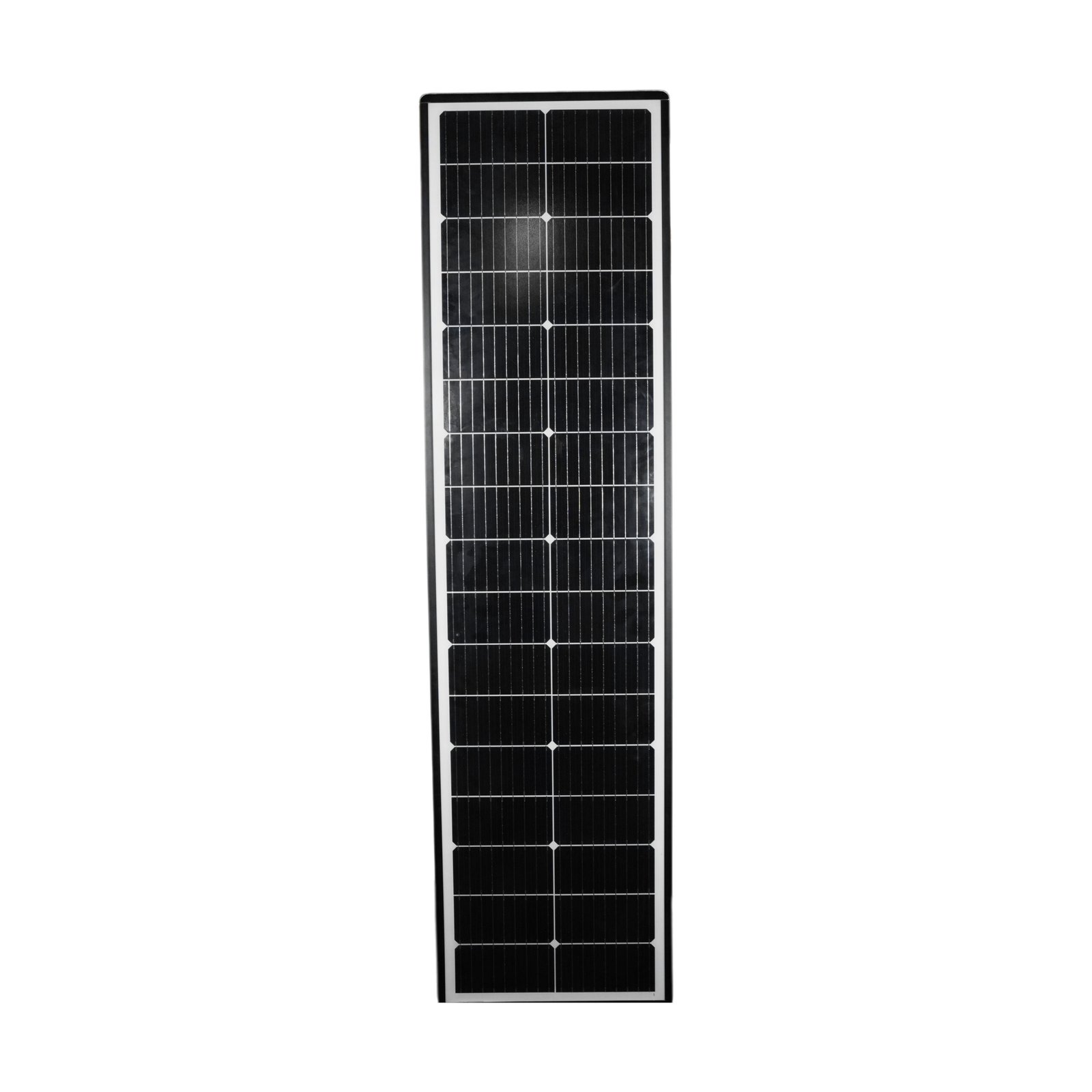

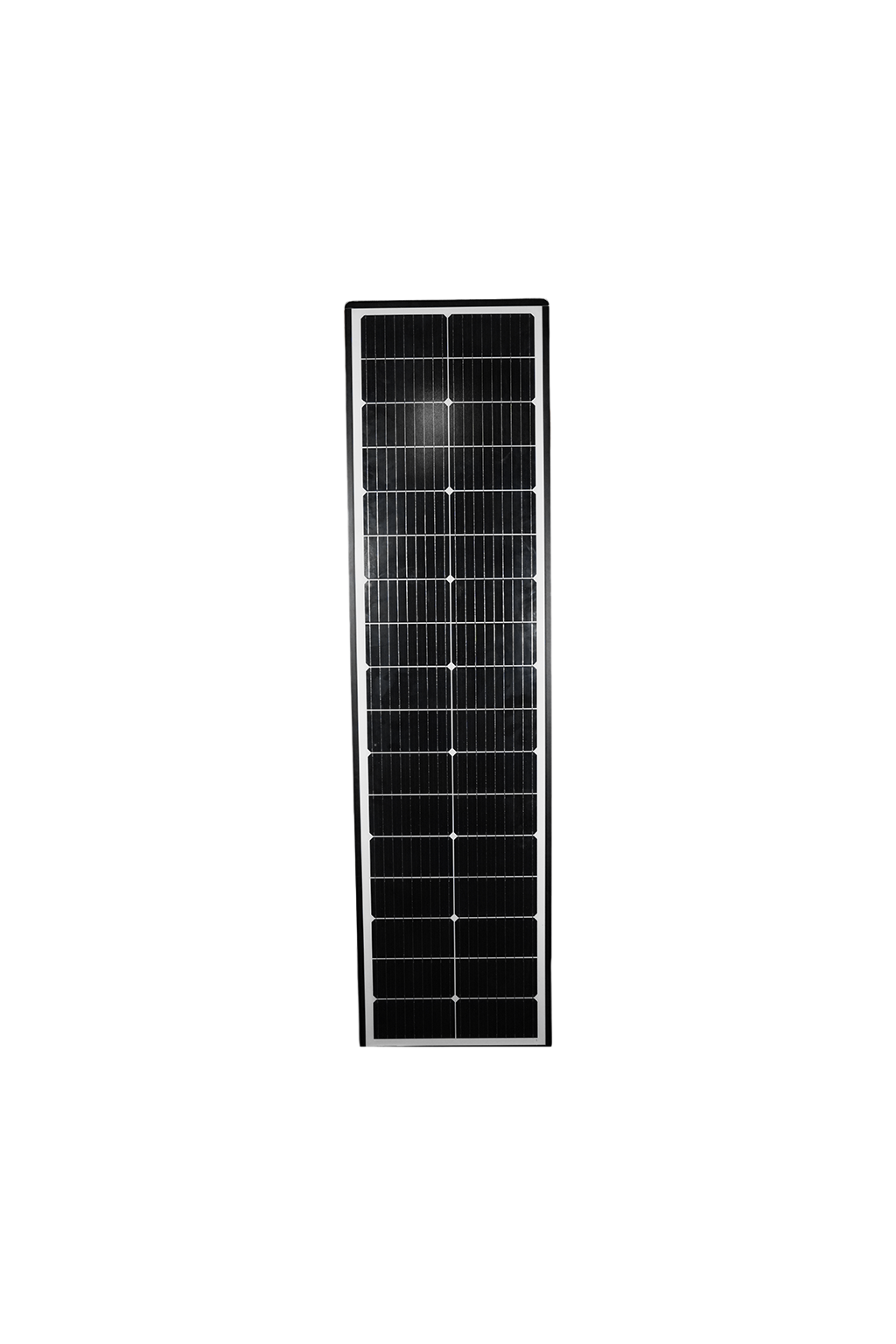

- Efficient Solar Panel – Enables fast charging and high efficiency.
- High Luminous efficacy -More light output
- Efficient Solar Panel – Fast charging with high efficiency.
- Consistent Performance & Quality - Delivers stable brightness.
| Housing | Die Cast Aluminium With PC Lens | |
| Solar Panel Type | Mono Crystalline | |
| Body Colour | Grey | |
| Light Source | MPPT | |
| Dimming | ON-OFF | |
| Rated Luminous Efficacy | 150 lm/W | |
| LED Life Time | >50,000 hours | |
| Battery Rating | 12,8V-30Ah | |
| Input Frequency | 50-60 Hz | |
| Efficiency | >90% | |
| IP Rating | IP66 | |
| IK Rating | IK08 |
| Model No. | Power (W) | Lumens | CCT | CRI | Beam Angle | Dimensions (mm) | |||
| TECO-AN1-30 | 30 | 4800 | 3000K/4000K/6500K | >80 | 105° | L/D: 899,W:454, Height:124, Arm Dia:57-63 mm | |||
| TECO-AN1-40 | 40 | 6400 | 3000K/4000K/6500K | >80 | 105° | L/D: 899,W:454, Height:124, Arm Dia:57-63 mm | |||
| TECO-AN1-50 | 50 | 8000 | 3000K/4000K/6500K | >80 | 105° | L/D: 899,W:454, Height:124, Arm Dia:57-63 mm | |||
| TECO-AN1-60 | 60 | 9600 | 3000K/4000K/6500K | >80 | 105° | L/D: 899,W:454, Height:124, Arm Dia:57-63 mm |
*D=Diameter; H=Height
