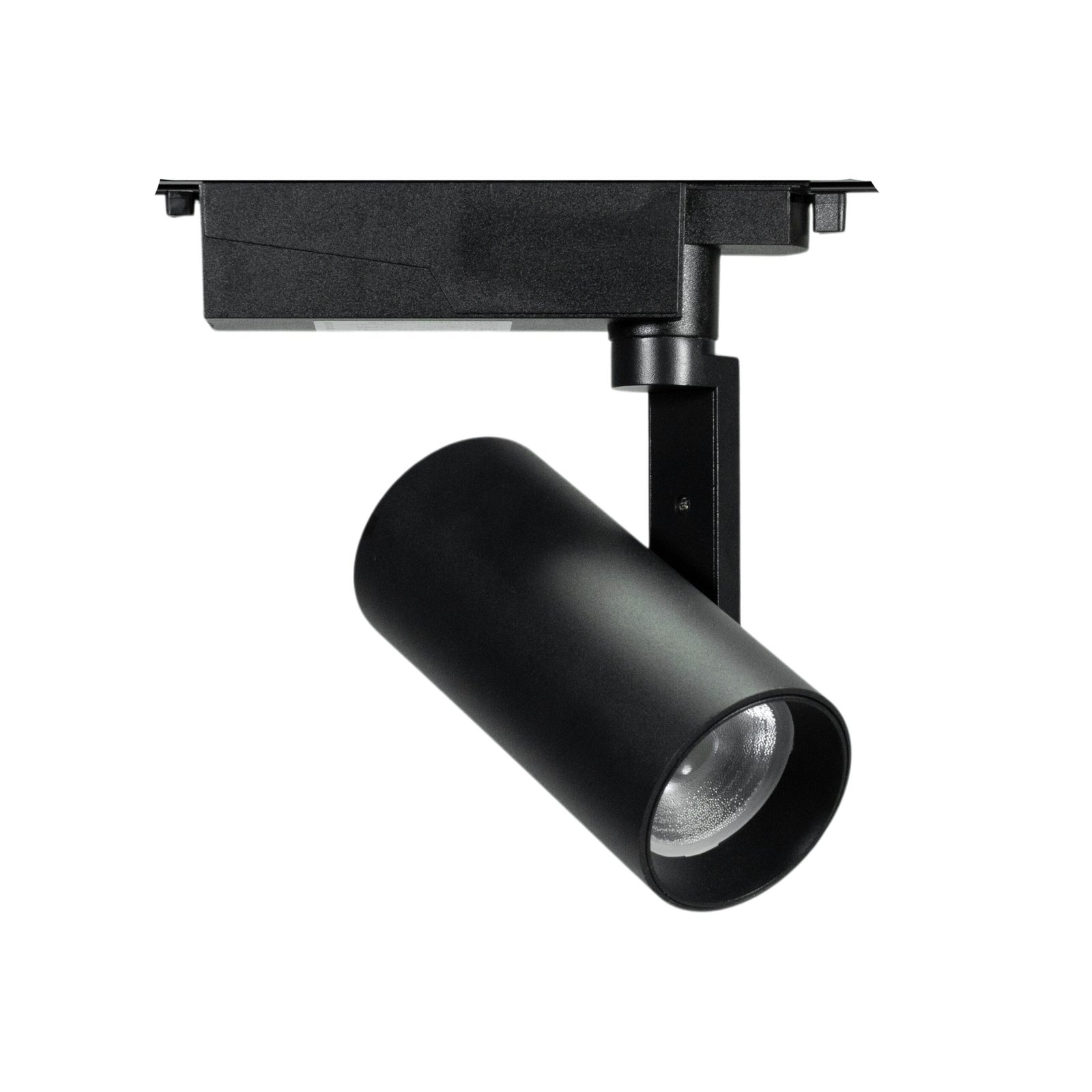

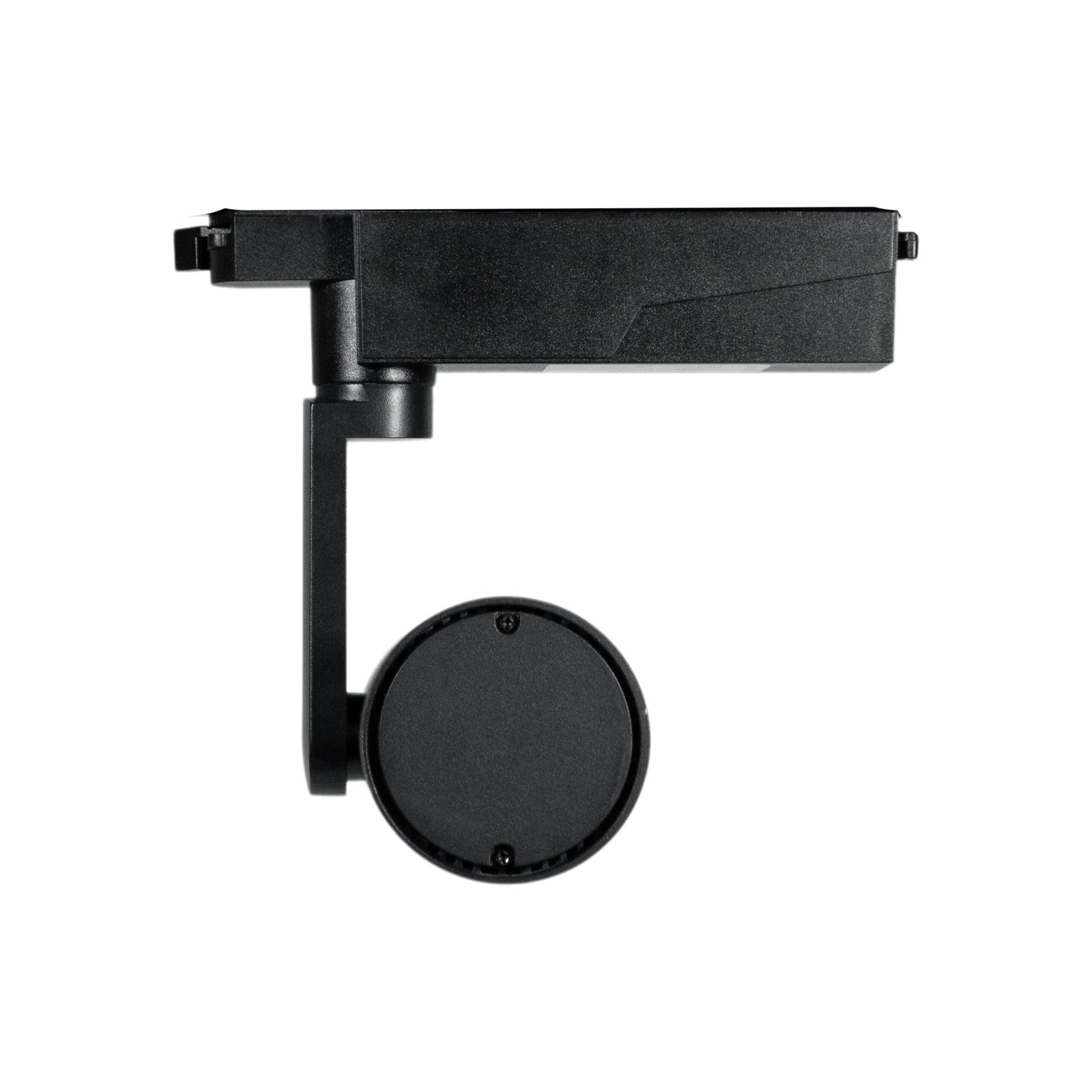

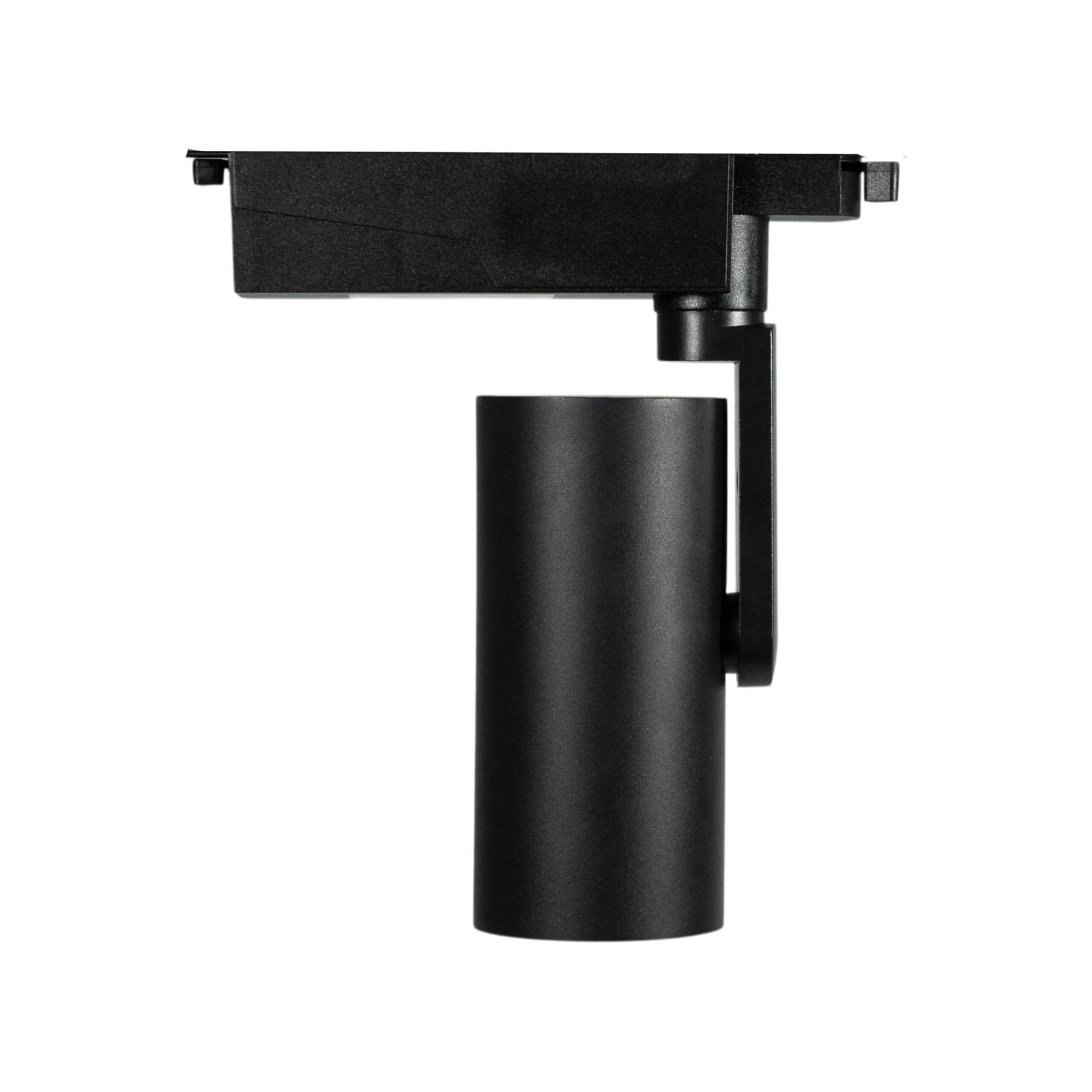

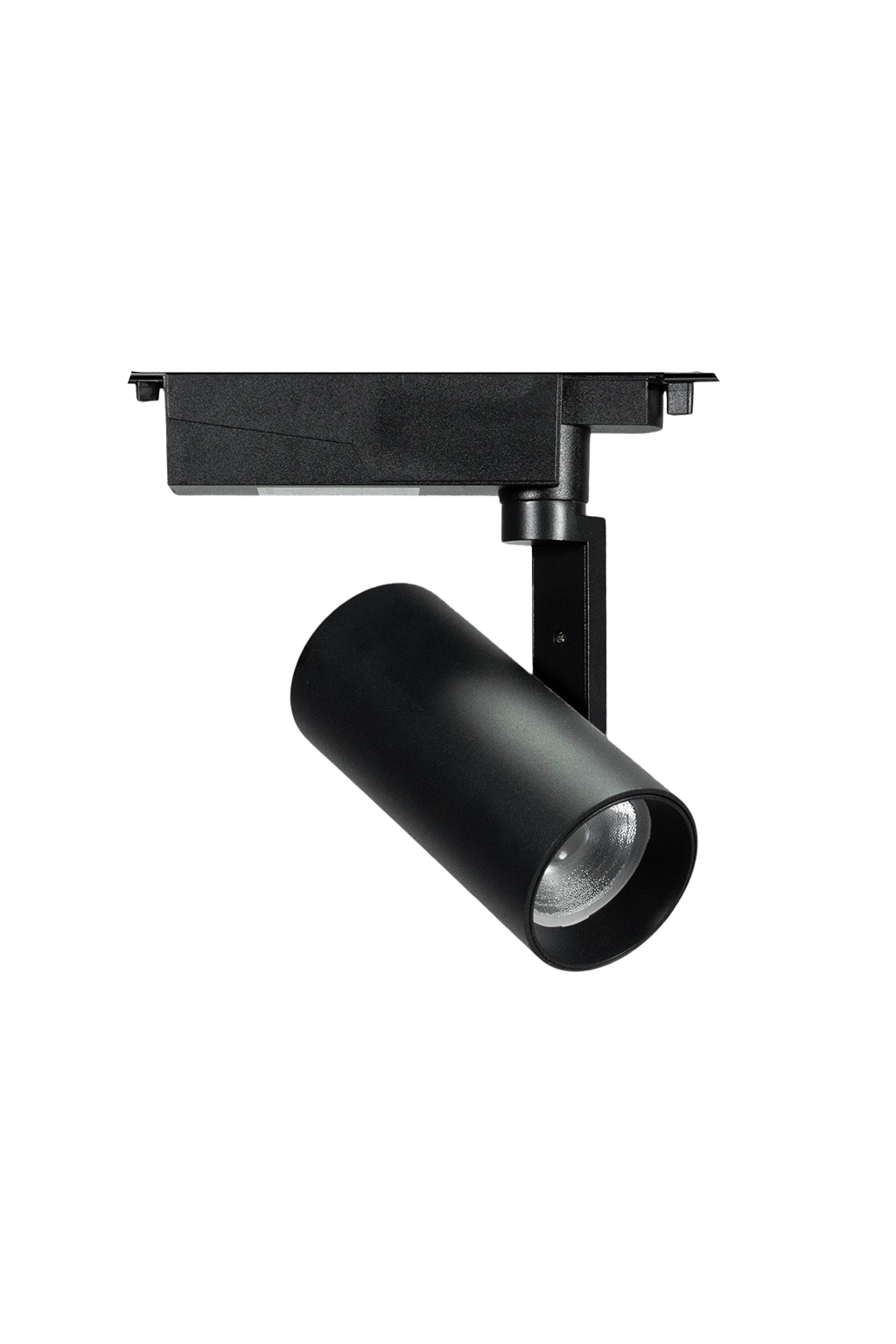

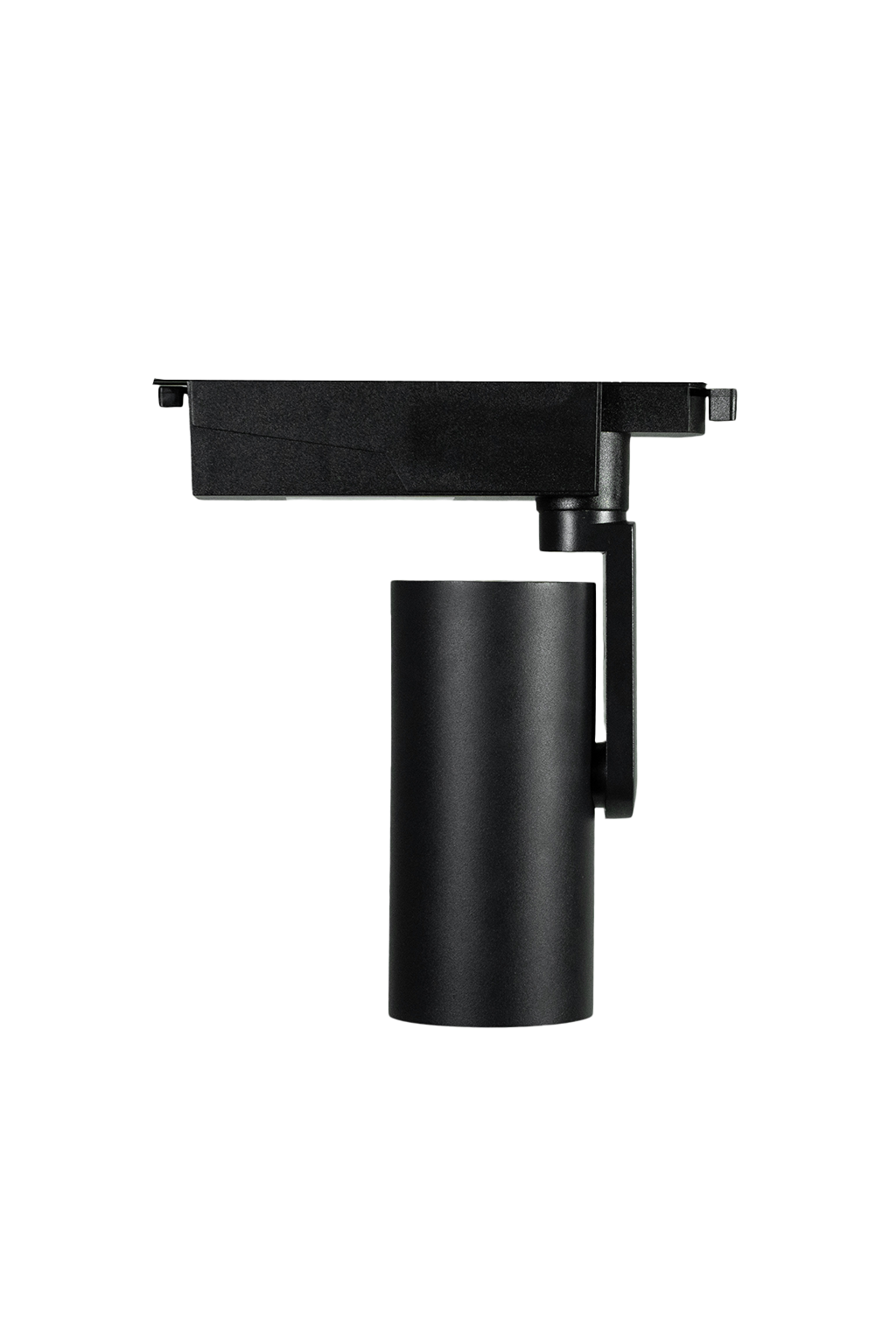

ORBITER RB
20W, 30W, 40W
The Orbiter RB track light is an aesthetically refined lighting solution for various high-end indoor environments like showrooms, retail stores, reception areas, and art galleries.
| Colour | 3000K, 4000K, 6500K |
|---|---|
| Wattage | 20W, 30W, 40W |
Suitable for :
- Corridor
- Hotel
- Restaurant
- Offices
- Retail
- Shops
- Reception Areas
-
Features
-
Specifications
-
Technical Data
-
Downloads
- High Luminous efficacy - More light output
- Focused Illumination – Delivers precise, directional lighting for accent or task areas.
- Long life: 50,000+ hrs - Minimal maintenance
- Easy Installation – Quick, tool-free mounting.
- Enhanced Output – Equipped with a PC lens for improved luminous performance.
| Housing | Aluminium Die cast Body Body With TIR Lens | |
| Body Colour | White / Black | |
| Light Source | Bridgelux | |
| Dimming | ON-OFF,TRIAC, 0.-10V,DALI | |
| Rated Luminous Efficacy | 100 lm/W | |
| LED Life Time | >50,000 hours | |
| Input Voltage | 220-240 VAC | |
| Input Frequency | 50-60 Hz | |
| Efficiency | >90% | |
| IP Rating | IP20 | |
| IK Rating | IK02 |
| Model No. | Power (W) | Lumens | CCT | CRI | Beam Angle | Dimensions (mm) | |||
| RBW/B-TK-20 | 20 | 2000 | 3000K/4000K/6500K | >80 | 35° | L/D:57,W:NA,H:134 mm | |||
| RBW/B-TK-30 | 30 | 3000 | 3000K/4000K/6500K | >80 | 31.4° | L/D:73,W:NA,H:160 mm | |||
| RBW/B-TK-40 | 40 | 4000 | 3000K/4000K/6500K | >80 | 27.7° | L/D:90,W:NA,H:190 mm |
*D=Diameter; H=Height
